JIS standard cast iron single chain oil Colander
JIS standard cast iron single chain oil Colander
Specifications
Place of Origin :
China Jiangsu Yangzhou
Brand Name :
Feiteng
Certification :
Inspection Report
Model Number :
S,LA,LB
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden box
Delivery Time :
The 3 day
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Description

JIS standard cast iron single chain oil Colander

Jiangsu Feiteng ship matching Engineering Limited company specialized production: single oil filter CBM1133-82

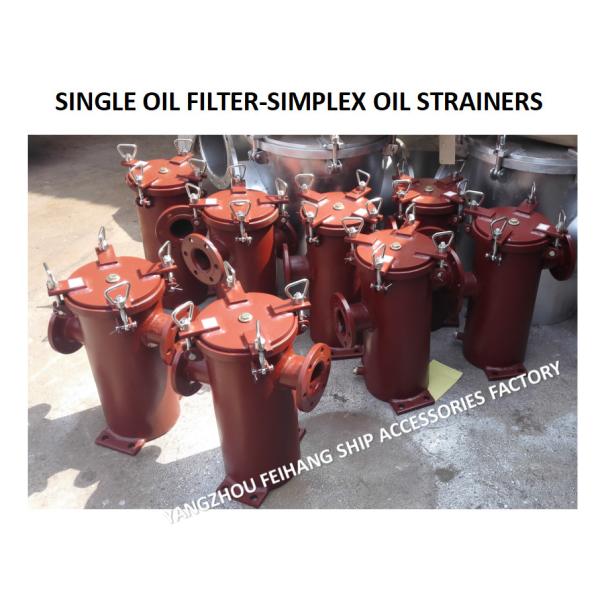

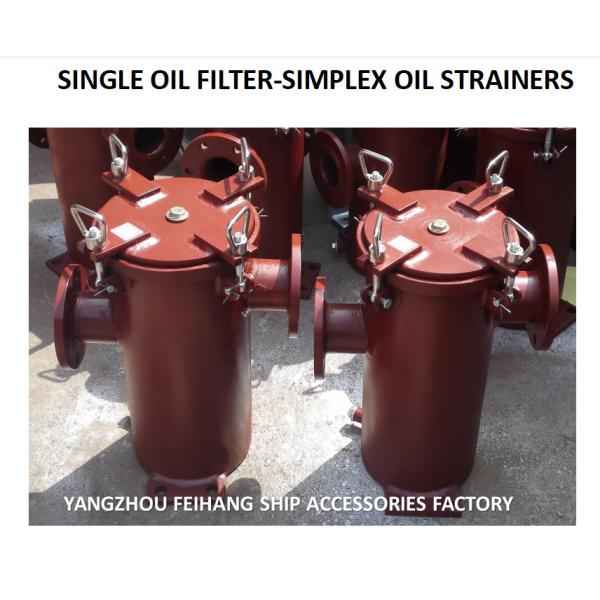

JIS standard cast iron single chain oil Colander
This product is applicable to the work of marine fuel temperature ≤ 80C0 and oil pipe line.
Design and manufacturing of products is based on the industry standard CBM1133-82, combined with the requirement of modem design is improved, the formation of the company's 594NTDF1Y series product.
The oil filter cover and the filter cylinder body, the material is Q235-A, the filter material is 1Cr18Ni9Ti; oil filter strainer tube. The effective area and the nominal diameter of the ratio of cross-sectional area of not less than 5; for the oil filter oil medium with magnetic block, materials for the AINiCo5 filter; oil tightness test and strength test, the pressure of 0.75MPa, duration of not less than 5min, should be no leakage; oil cavity filter cleaning after cleaning antirust oil, the outer surface is coated with anti-corrosive primer and light grey finish every once;
Filter type
S -- flange dimensions according to the straight single oil filter CB/T46;
LA -- flange size according to the right angle CB/T46 single chain oil colander;
LB -- flange dimensions according to the left type right angle CB/T46 single chain oil colander;
SS -- flange dimensions according to the straight single oil filter GB2506;
LAS -- flange size according to the right angle GB2506 single strainer;
LBS -- flange dimensions according to the left type right angle GB2506 single oil filter;
