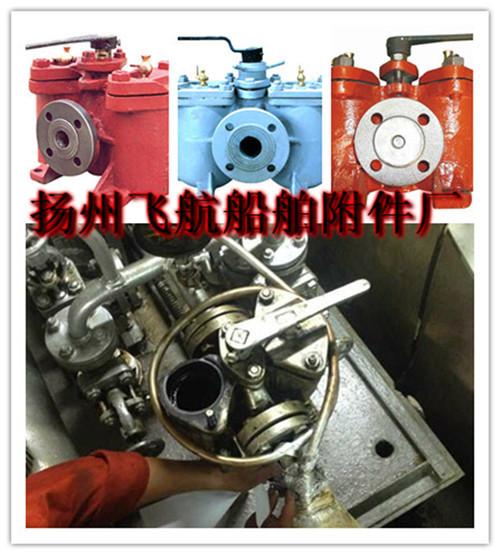

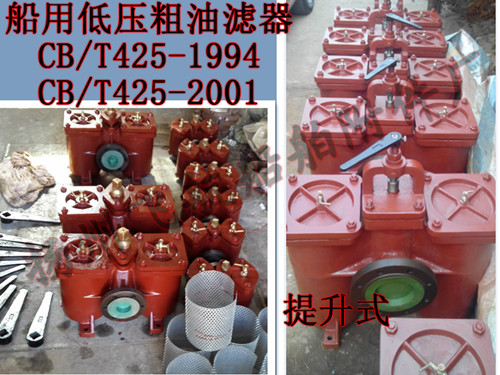

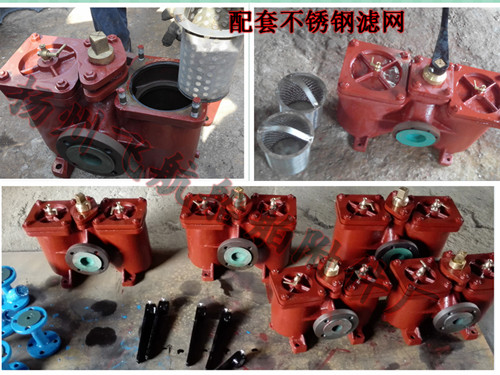

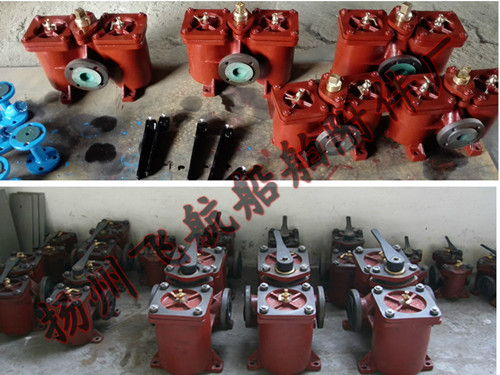

The A, AS type duplex crude oil filter CB/T425-94
The A, AS type duplex crude oil filter CB/T425-94
Specifications
Place of Origin :
China Jiangsu Yangzhou
Brand Name :
Fei Hang
Certification :
Inspection Report
Model Number :
A,AS
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden box
Delivery Time :
The 3 day
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Application :
Piping
Shape :
Straight,Right angle
Material :
Cast iron, ductile cast iron, cast steel, stainless steel, bronze
Dimensions :
50A-200A
Chemical Composition :
NO
Reference standard :
CB/T425-1994，CB/T42-2001
Body material :
Cast iron, ductile cast iron, cast steel, stainless steel, bronze
Filter material :
stainless steel, bronze
Description

Yangzhou cruise ship accessories factory:
Oil filter CB/T 425-94 duplex for ship
The A, AS type duplex crude oil filter CB/T425-94
Ship fuel marine low pressure crude oil filter is suitable for the work temperature is less than 80C0 and oil pipe lines.
According to the function can be divided into:
Fuel line - low pressure crude oil filter CB/T425-94
Oil pipeline with - low pressure crude oil filter CB/T425-94
Lubricating oil pipeline with - - - - - - - - - - - - - - - - - - - -
Heavy oil pipeline - low pressure crude oil filter CB/T425-94
In order to be durable, according to our years of experience and customer feedback, the filter can be selected:
SUS304 stainless steel, SUS316 stainless steel, SUS316L stainless steel
The A, AS type duplex crude oil filter CB/T425-94
Figure:
The design and manufacture of the low pressure crude oil filter product is based on the standard CB425-94 of the ship industry, which is based on the combination of the requirements of the modern ship design, forming the company's FT series products.
CB/T425-94 the main body and cover of the oil filter is HT200, the core material is ZQAl9-2 II, and the magnetic material is AINiCo5, the filter material is 1Cr18Ni9Ti or H62;
CB/T425-94 the ratio of the effective area and the nominal diameter of the oil filter of the low pressure oil filter is not less than 5;
CB/T425-94 low pressure thick oil filter and strength test, the pressure is 0.75MPa, the duration is not less than 5min, should be no leakage;
CB/T425-94 low crude oil cavity filter cleaning after cleaning the outer surface is coated with antirust oil, antirust paint and light grey finish each once;
CB/T425-94 low pressure crude oil filter parameter list:
The type of low pressure crude oil filter:
A type - a straight - to - duplex oil filter with CB/T46 - flange connection size;
Ship with the low pressure oil filter, double oil filter, low pressure oil filter, double fuel filter, double oil filter and so on.
Products usually have:
A4020 double low pressure crude oil filter CB/T425-94
A4025 double low pressure crude oil filter CB/T425-94
A4032 double low pressure crude oil filter CB/T425-94
A4040 double low pressure crude oil filter CB/T425-94
A4050 double low pressure crude oil filter CB/T425-94
A4065 double low pressure crude oil filter CB/T425-94
A4080 double low pressure crude oil filter CB/T425-94
A40100 double low pressure crude oil filter CB/T425-94
A40125 double low pressure crude oil filter CB/T425-94
A40150 double low pressure crude oil filter CB/T425-94
The A, AS type duplex crude oil filter CB/T425-94
AS type - a straight - to - duplex oil filter with GB2506 - flange connection size;
AS4020 double low pressure crude oil filter CB/T425-94
AS4025 double low pressure crude oil filter CB/T425-94
AS4032 double low pressure crude oil filter CB/T425-94
AS4040 double low pressure crude oil filter CB/T425-94
AS4050 double low pressure crude oil filter CB/T425-94
AS4065 double low pressure crude oil filter CB/T425-94
AS4080 double low pressure crude oil filter CB/T425-94
AS40100 double low pressure crude oil filter CB/T425-94
AS40125 double low pressure crude oil filter CB/T425-94
AS40150 double low pressure crude oil filter CB/T425-94

The A, AS type duplex crude oil filter CB/T425-94

The A, AS type duplex crude oil filter CB/T425-94
