Specifications
Place of Origin :
Yangzhou, Jiangsu, China
Brand Name :
Fei Hang
Certification :
Certificate of quality
Model Number :
TS
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden box
Delivery Time :
The 3 day
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Description

Marine Cylindrical Sight Glass CBM1124-82

Marine cylindrical liquid flow viewer is installed in the inland and coastal ships mechanical part of the overflow pipe, the water pipeline system on one of the accessories.
This marine cylindrical observer flange size consistent with JIS B2211-1977, the basic parameters in accordance with JIS F7218-75

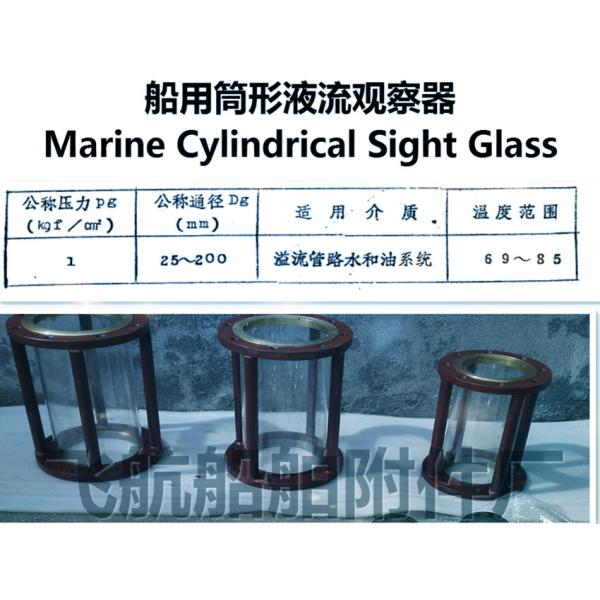

Basic parameters such as graph:
Marine Cylindrical Sight Glass CBM1124-82
Marine cylinder are usually labeled as observer:
Cylindrical liquid flow observer DN150 CBM1124-82
Flange diameter =265mm D flange center distance =225mm D1 8 hole *M19
Cylindrical liquid flow observer DN200 CBM1124-82
Flange diameter =320mm D flange center distance =280mm D1 8 hole *M23
CBM1124-82 cylindrical overflow viewer Standard JIS F7218-75, upper body and the lower part of the lower flange is d (ribs) reinforcement is connected as a whole. Transparent tube inserted from the bottom, the lower flange with internal thread converted into the lid; upper flange for fluid not splashed down in the inside of the barrel shaped glass around was compressed into cone, the angle and the center corresponding to maximum flow for 13 degrees.
Tube shaped transparent tube material for thermoplastic resin.

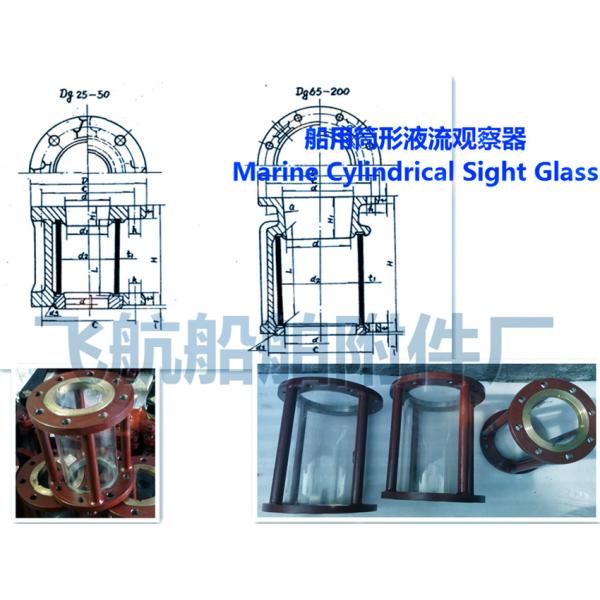

CBM1124 marine cylinder observer structure size are as follows:
Marine Cylindrical Sight Glass CBM1124-82

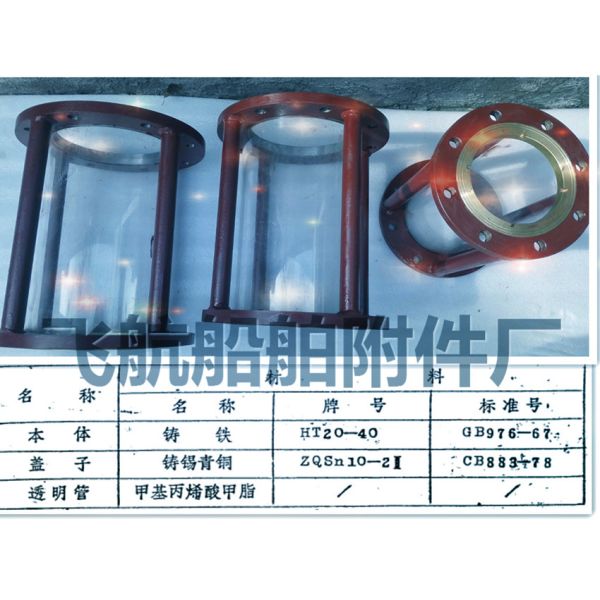

Marine cylindrical liquid flow observer of main parts are as follows:
Marine Cylindrical Sight Glass CBM1124-82

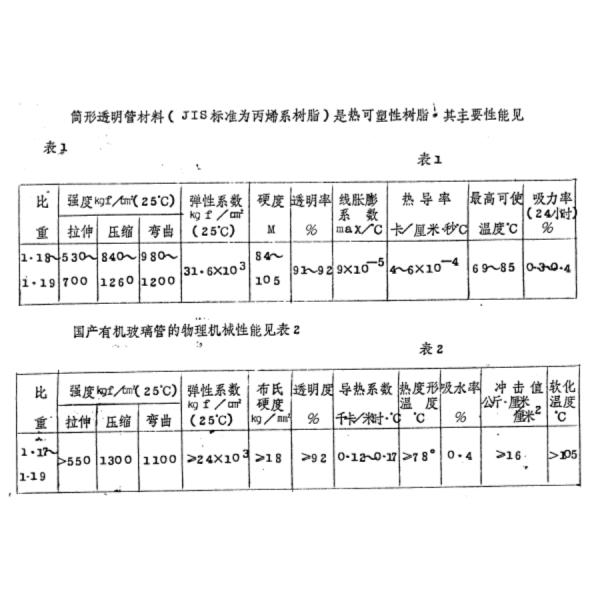

Marine fluid - Cylindrical observer transparent tube material: adopt heat plastic resin, the main performance for:
Marine Cylindrical Sight Glass CBM1124-82
Of course, can according to customer requirements this section of cylindrical liquid flow observer, stainless steel production, such as the contrast:
Marine Cylindrical Sight Glass CBM1124-82
By the above introduction: Yangzhou aviation ship accessories factory to provide professional!

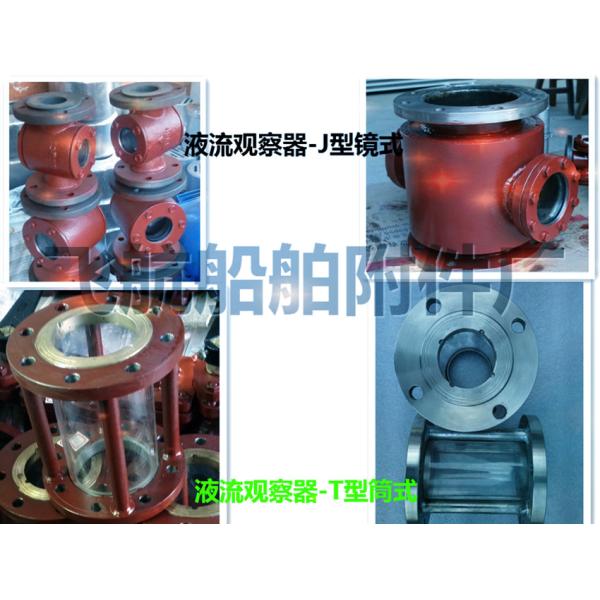

I plant the production of ship with mirror / observer includes:
CB/T422-93 ship with liquid flow viewer type -J mirror type liquid flow viewer -T barrel type liquid flow observer
CBM1039-81 cast iron flanged liquid flow viewer
With a cylindrical CBM1124 viewer ship
Marine Cylindrical Sight Glass CBM1124-82
