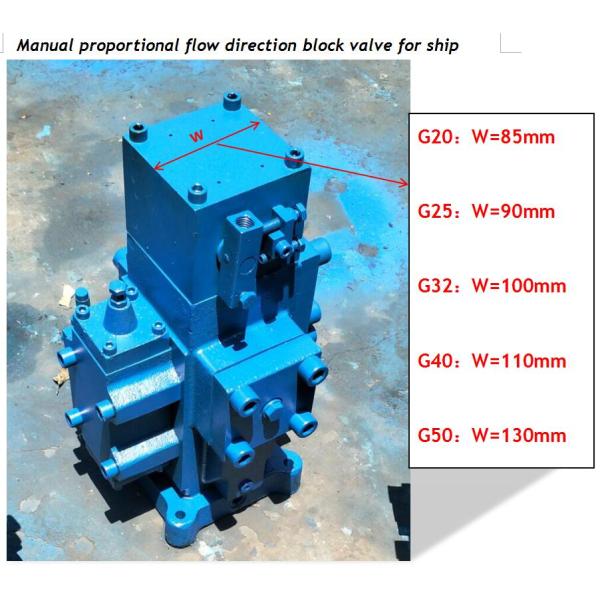

Manual proportional flow direction block valve for ship

Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves

Brief introduction of marine manual proportional valve manual proportional flow direction compound valve manual proportion composite valve:

The composite with CSBF type manual proportional flow direction valve is a pressure compensation, flow rate regulation and safety protection of the three position four way reversing valve, synchronous action of CSBF type manual proportional control valve operating handle and the flow adjusting mechanism can be stepless speed, reversing and has good control performance, at the same time with good reliability, convenient operation, long life and other characteristics, the hydraulic system is widely used in ship machinery and other machinery, the product won the national patent.
Manual replacement of CSBF type proportional flow direction compound valve:
On board the replacement of the old ship CSBF manually proportional flow direction composite valve, due to nameplate corrosion and other factors, it is difficult for customers to clearly determine the specifications of this valve. At this point, the customer can proceed from our suggestion (the following chart) to facilitate speculation:
Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves

model

Nominal dia.(mm)

Nominal flow(L/min)

Nominal pressure(MPa)

Scope of safety valve pressure(MPa)

Handle control force(N)

Mid-position pulley enginery

CSBF-G20

20

120

25

5～25

≤40

M

O

Y

H

K

P

CSBF-G25

25

200

CSBF-G32

32

300

CSBF-G40

40

450

CSBF-G50

50

700

CSBF-G65

65

1200

CB/T3928-2001 manual proportional flow direction compound valve manual scale compound valve production process:

Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves

CB/T3928-2001 manual proportional flow direction compound valve manual proportioning composite valve type selection mark:

Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves

Marine manual proportional directional compound valve CSBF-G20 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 20mm, spool function is M type of ship manually proportional flow direction compound valve
Manual proportional directional compound valve CSBF-O-G25 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 25mm, spool function is O type of ship manually proportional flow direction compound valve
Manual proportional directional compound valve CSBF-Y-G32 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 32mm, spool function is Y type of ship manually proportional flow direction compound valve
Manual proportional directional compound valve CSBF-H-G40 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 40mm, spool function is H type of ship manually proportional flow direction compound valve
Manual proportional directional compound valve CSBF-K-G50 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 50mm, spool function is K type of ship manually proportional flow direction compound valve
Manual proportional directional compound valve CSBF-P-G65 CB/T3198-2001
Meaning: nominal pressure is G--25Mpa, nominal diameter is 65mm, spool function is P type of ship manually proportional flow direction compound valve
Marine CSBF type manual proportional flow direction compound valve - instructions for ordering:
Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves
Our CSBF type manual proportional flow direction compound valve is normally factory M type, middle function (normal omission), if the user needs other medium functions and special requirements, should be put forward in order to supply.
Marine type CSBF manual proportional flow direction compound valve, Lieutenant function is M type, expressed as:
When the handle of the manual proportional valve is in the middle position, each oil port (A, B port) is closed, and the oil which is removed from the oil pump is returned to the O port from the P port. At this time, the motor stops operation.
Technical requirements for marine manually operated proportional flow directional compound valves:
Jiangsu, Yangzhou, China CSBF marine manual proportional flow valves
1, manual proportional composite valve of the main components and materials should comply with the provisions of the following table:
2, the body, the spool should be in line with the GB/T1184 7 tolerance, surface roughness is not greater than 0.8 m,
3, the sealing surface between the valve body and the valve core should not be scratched, air holes, bumps and other defects,
4, the O ring shall comply with the GB3452.1
5, the composite valve should have good cleanliness, all parts should not burr, cutting and other casting residues
6, the composite valve inlet and outlet, access flange, screw performance level should not be less than 9.8
