Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Solar Shades Spring Roller Type
Specifications
Brand Name :
Fei Hang
Model Number :
FH
Certification :
Inspection Report
Place of Origin :
China Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Delivery Time :
The 3 day
Packaging Details :
Wooden box
Description
Sunshading curtain for shipbuilding
Marine curtains - cockpit curtains - Marine cockpit shades - filters, sun insulation, sun blinds - cockpit, spring shade blinds
Necessity of installing shade shade for ship cockpit / ship cabin shade:
The cab is core part of ship navigation command command and control, is a highly interactive, cab human-machine environment design lighten the driver pressure, an important means to ensure the safety of navigation. In the man-machine environment design of the cab, it involves many design variables, such as field of view, sight line, window, passage, device shape, and so on. So we have to choose a comfortable and durable shutter:
After installing the awning, when the shutter is lowered, it does not block out sight, and the driver can clearly look out through it.
Solar Shades Spring Roller Type

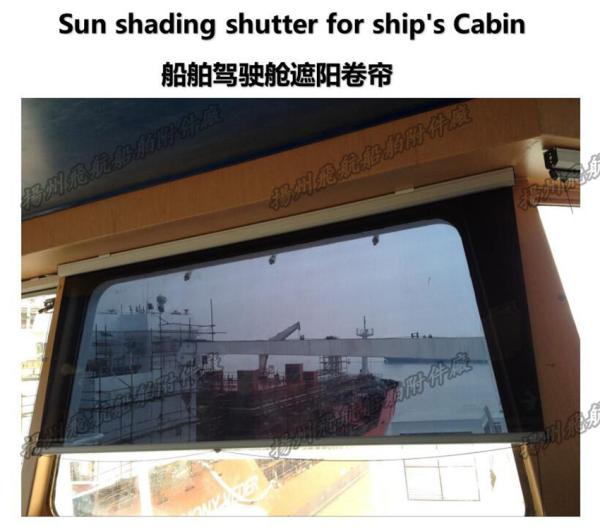

An universal locking bracket type solar shades for ship’s bridge and wheelhouse windows.The screen has 100% optical clarity and industrial strength is 5 MILS.The surface and there are two patterns of screen rolling method,”Spring mount” or “Clutch springless roller”.Both 3” strips(Outside mount) and 3” flanges (Inside mount) are included with every to window recess are secured with Velcro tape from swinging.
Brief introduction of marine sunshade curtain - Marine cockpit sunshade curtain - cockpit spring ball roller shade main material:
1. of our production rate can be used in the ship 2.64 - 11% with a material filtering film transparent cockpit sunshade curtain, also has no problem of curling, pitting.
Solar Shades Spring Roller Type
2., I produced this paragraph of the ship's cockpit shade shutters for aluminum alloy plated steel, box size of 50mm thick, 45mm high, the box width of 25mm wider than the film. Pulley and other accessories for copper, installation of U type parts: stainless steel.
Solar Shades Spring Roller Type
Specification for order book of sun blinds of ship's cabin:
First of all: we must make sure the cockpit shade, the cockpit filter shade shade shape
Solar Shades Spring Roller Type
Secondly, we determine the dimensions of the cockpit sunshade, the filter shade and the shutter according to the shape
1. selection according to material book: IMPA 150721-IMPA150722 series, spring ball, sunshade shade, cockpit shade
Solar Shades Spring Roller Type
2. according to the actual measurement of customer size for processing production
Solar Shades Spring Roller Type
Finally, according to the owner's request, choose the awning shade - cockpit, sunshade curtain - cockpit filter, sunscreen, heat insulation roller shutter color
The design and manufacture of the shade of the ship's cabin shade / marine cab are designed on the basis of the ship industry standards and combined with the requirements of modern ships. Thus forming our FT001-004 series of enterprise products.
Solar Shades Spring Roller Type

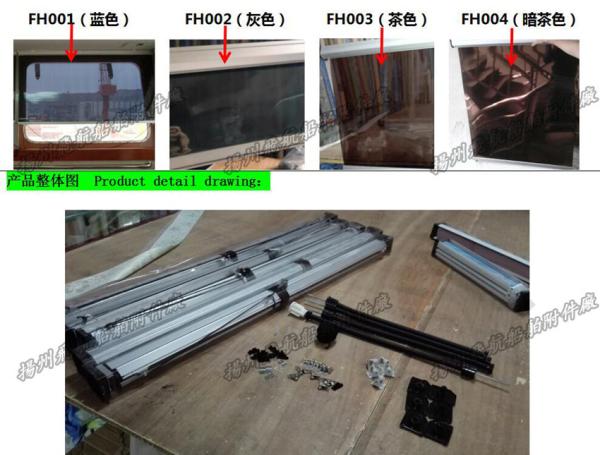

FT001- blue model marine shade shutters - cockpit filters, sun blinds - spring automatic positioning cockpit shade blinds
FT002- gray model marine shade shutters - cockpit filter shade blinds - spring automatic positioning cockpit shade blinds
FT003- shades, marine shade shutters - cockpit filters, sun shades - spring, ball, cockpit, sun blinds
FT004- dark shades, marine shade shutters - cockpit filter shade shutters - spring ball bearings, cockpit blinds
Ship's cockpit curtain - Marine cockpit shade shutters - filter sun insulation curtain - Marine cockpit shade shade installation:

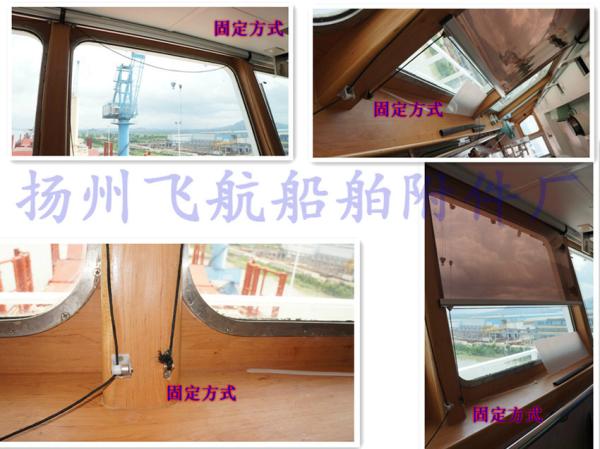

The installation method of this ship's cabin sunshade shade can be as follows: top mounting method, side mounting method and back mounting method. According to our company's many years of experience, it is recommended to adopt: top installation method.
Solar Shades Spring Roller Type
Specific installation steps of the cockpit sunshade curtain - cockpit spring shade:
1. draw a knot at one end of the rope. We use plastic wedge to press the screws. Note that the rope is perpendicular to the lower edge of the curtain box and window frame.
2. first fix the lock with a screw, then pull the other end of the rope through the rope, lock it, and put a knot on the rope cap. Note that the rope is perpendicular to the curtain box and the lower edge of the window frame, and the straight line between the plastic wedge and the lock is parallel to the wall plate.
Division I - Yangzhou flying ship accessories factory - ship cabin, sun blinds application areas:
