Specifications
Brand Name :
Feiteng
Model Number :
DS-Float type
Certification :
Inspection Report
Place of Origin :
China Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Delivery Time :
The 3 day
Packaging Details :
Wooden box
Implementation standards :
CB/T3594-94
Connection mode :
Flanged connections
Body material :
Cast iron
Side cover Material :
SUS304
Interior Parts :
Stainless Steel float
Description

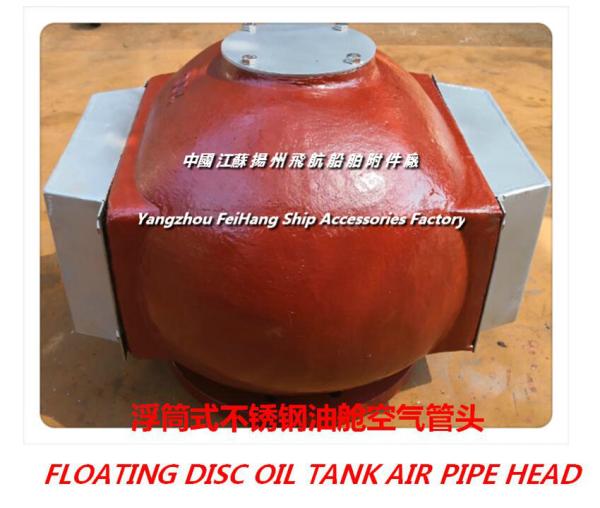

Stainless steel marine tank air duct Head air pipe head for oil TAN

Buoy Type stainless steel tank air pipe head floating DISC oil tank air pipe head

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN

About Air PIPE Head Marine breathable cap-oil Tank vent cap (stainless steel Cover) Product Overview This marine oil tank Air pipe head/oil tank vent cap through the suction and breathing is the air pressure in the cabin to close to atmospheric pressure, so that its pressures remain within the design pressure of the cabin, in addition to prevent the Sea water, rain, Mars into the cabin cabinet while preventing the wave debris into the air duct into the cabin.

About Marine Air Pipe Head-marine breathable cap product terminology and model Meaning:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN

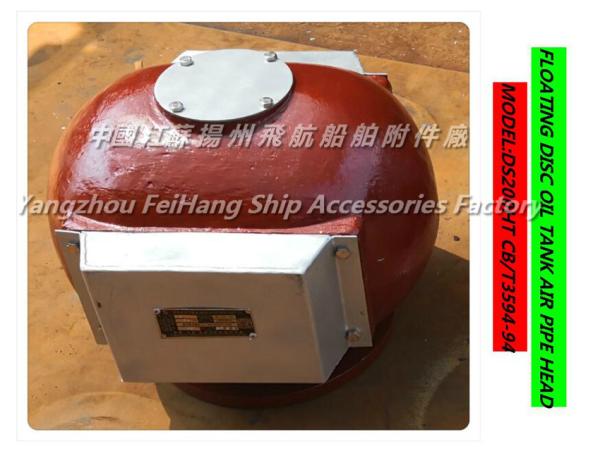

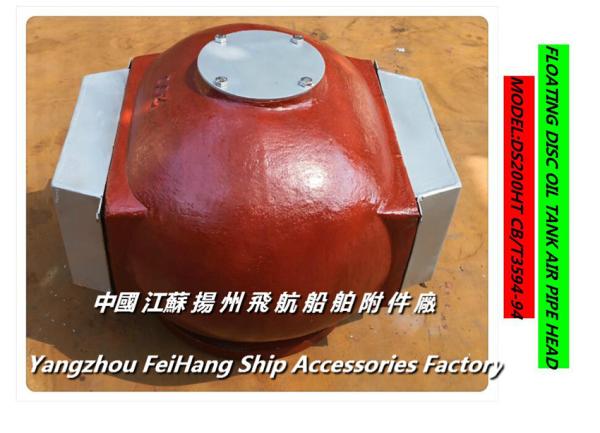

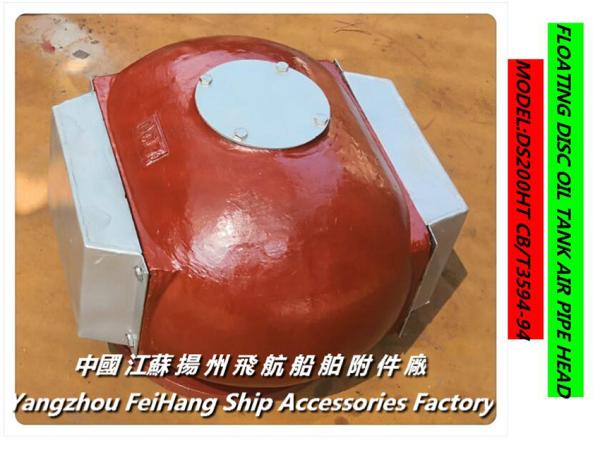

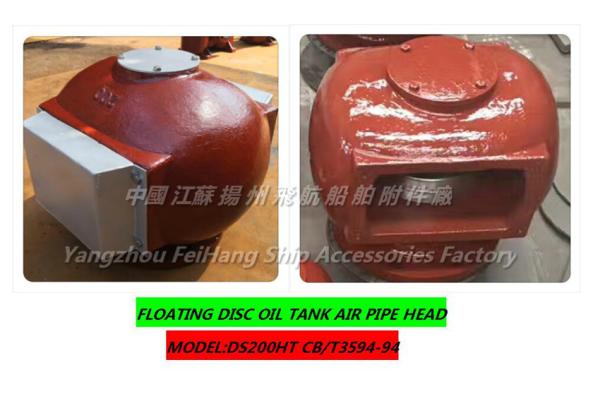

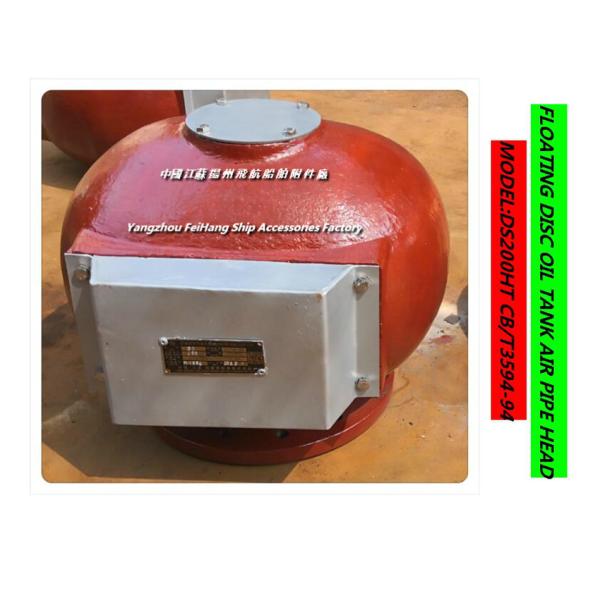

Oil tank vent Cap DS200HT cb/t3594-1994:
Type D-buoy type, flange with s, nominal diameter of 200mm, the body material for HT200 gray iron, top cover, protective side cover are stainless steel 304, internal parts for stainless steel float, the implementation of the standard cb/t3594-1994 oil tank dedicated air pipe HEAD.

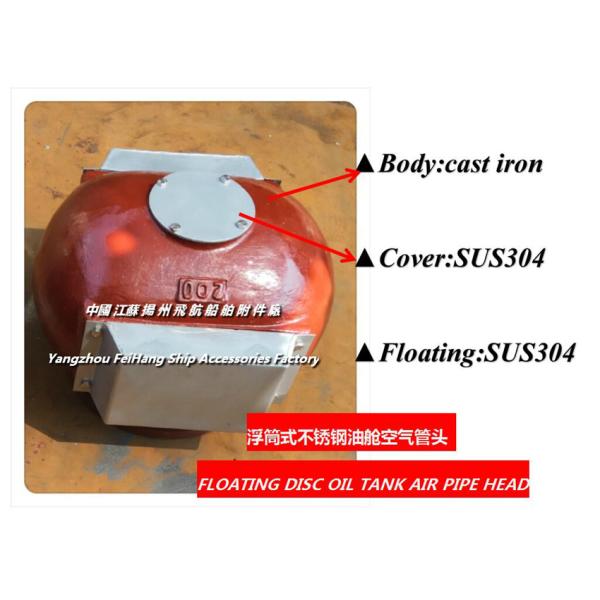

About marine oil tank ventilation cap-oil Tank Air pipe Head technical parameters:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN
Design and manufacture inspection standard cb/t3594-1995
Body Material Ht200-gray Iron
Interior Parts SUS304 Stainless steel
Top cover, side cover SUS304 stainless steel
Nominal bore/nominal pressure DN200
Connection Form Flanged connection
Flange standard GB2506 Sealing surface (RF) Exterior Carbon Steel: anticorrosive paint

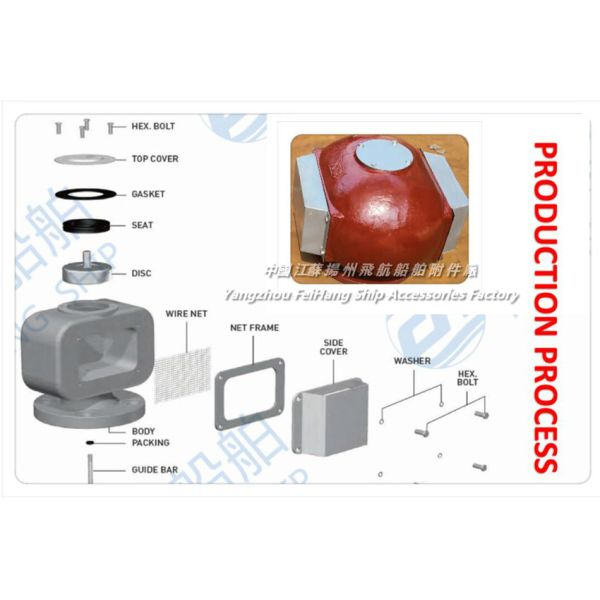

Yangzhou Aviation Shipping Accessories Factory Production Marine oil tank Marine Air Pipe head-marine oil tank ventilation cap production process:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN
▲ Pouring blank parts ▲ and then grinding processing ▲ Assembly ▲ Water pressure Experiment ▲ paint ▲ Packing Shipment

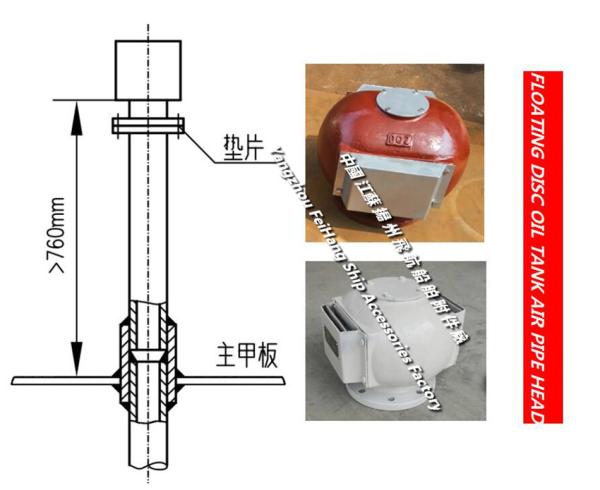

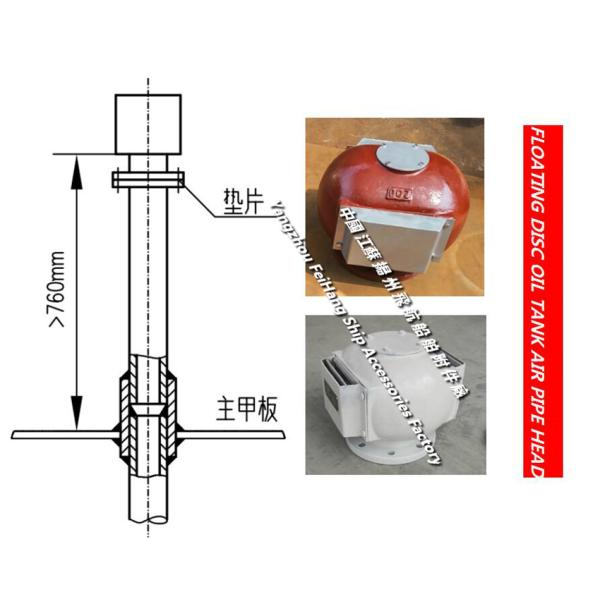

About oil tank Marine Air Pipe head-marine oil tank vent CAP Installation Essentials:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN

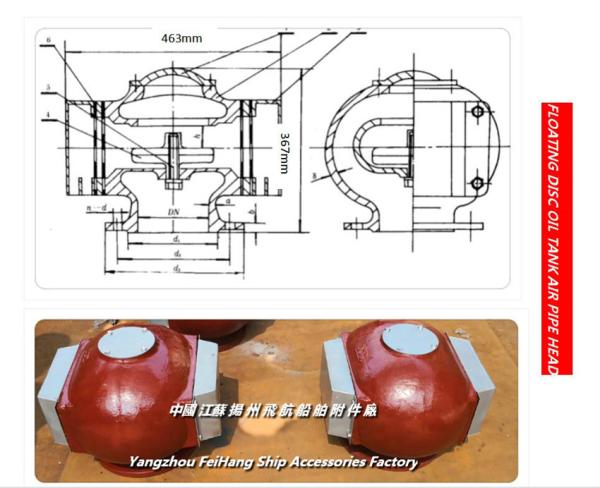

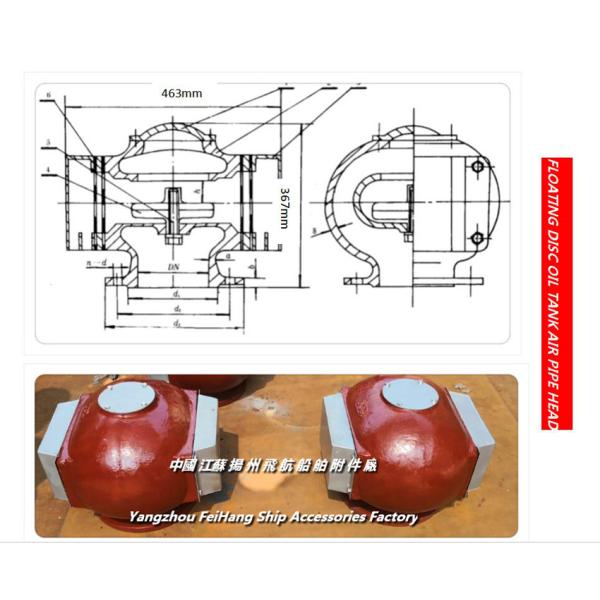

For oil pipe head tank Air tube head outline structure size:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN
About this DS200HT cb/t3594-94 Marine Stainless steel oil tank air pipe head-oil tank vent cap ordering Instructions:

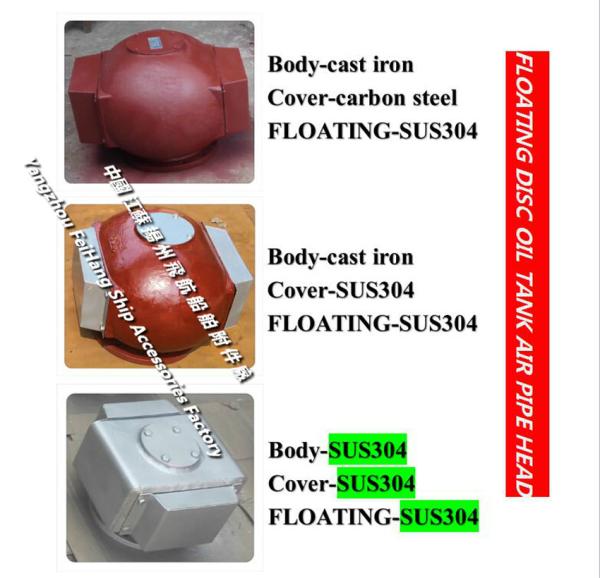

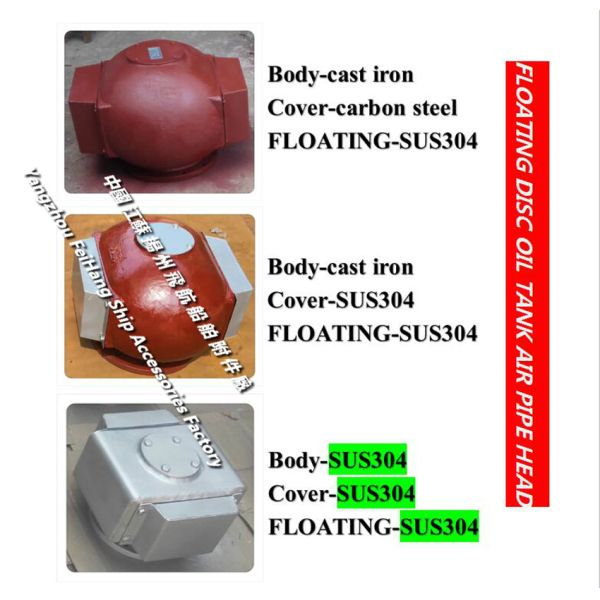

1, determine the ventilation cap custom-made materials.

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN

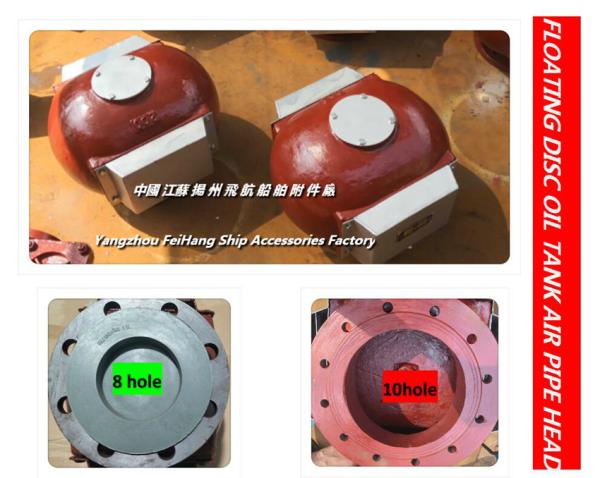

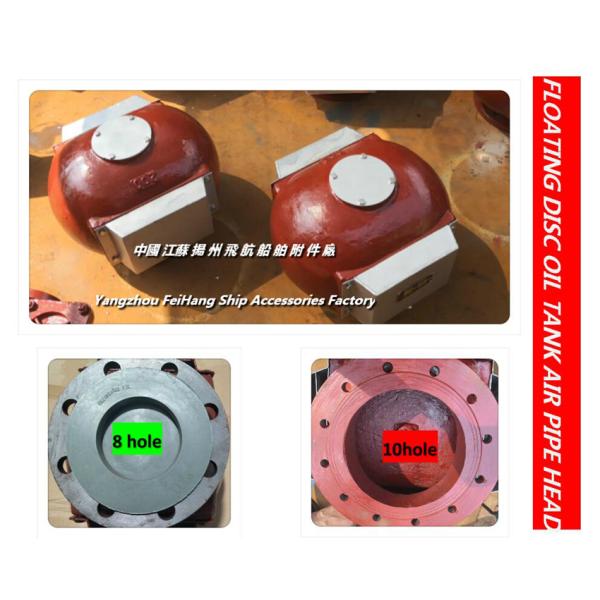

2, determine the flange size of the vent cap, you can choose:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN
Flange size one: od 295mm Center distance (eye Distance) 264mm 12 hole
Flange size two: Outside diameter 320mm Center distance (eye Distance) 280mm 8 hole
Jis-5k: od 320mm Center pitch (eye Distance) 280mm 8 hole
Jis-10k: od 330mm Center pitch (eye Distance) 290mm 12 hole
Din-16k: od 340mm Center pitch (eye Distance) 295mm 8 hole
Aisi-150lb: od 343mm Center pitch (eye Distance) 298mm 8 hole

Marine Air Pipe head-marine oil tank air tubing Head Application field:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN

Air pipe head for bilge Oil W. T. Dirt tank vent cap-oil tank stainless steel Air pipe head d200ht cb/t3594-1994

ds200qt cb/t3594-1994 cylinder oil tank stainless steel vent cap Cylind
ER oil tank Air pipe head Cabin oil tank breathable cap d200ht cb/t3594-94

engine room oils tank Air pipe head fuel daily cabinet Air tube head DS200QT cb/t3594-94 F.O. Service Tank Air PIP

E Head

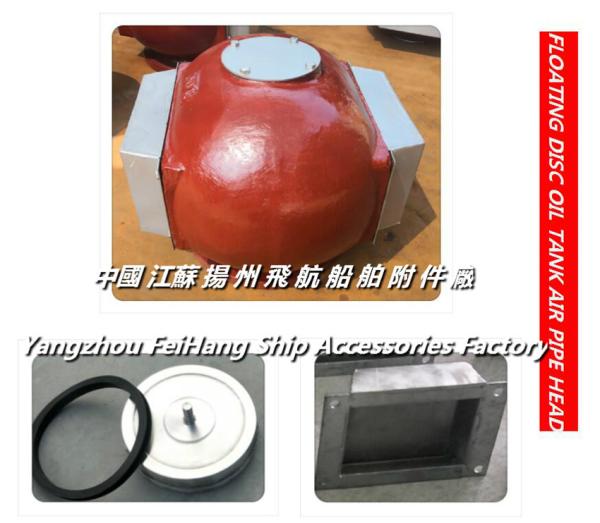

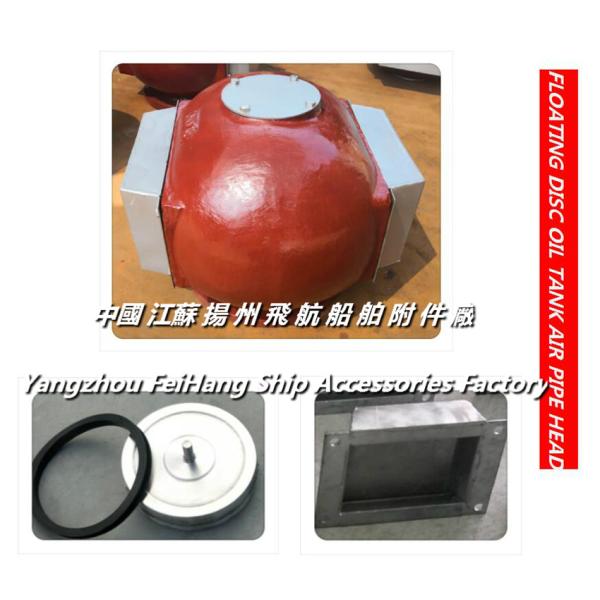

About the maintenance of stainless steel air pipe head in marine oil tank in the later period:

FLOATING DISC oil tank air pipe head，AIR PIPE HEAD FOR OIL TAN
1, according to the requirements of this section of the marine oil tank Air pipe head interior parts: stainless steel float
2, can be changed according to the requirements of the oil tank Marine Air pipe Head cover, and side cover
3, can be changed according to the requirements of the marine oil tank ventilation cap internal sealing ring
