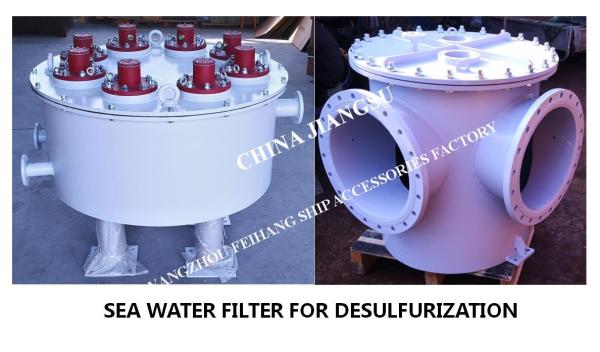

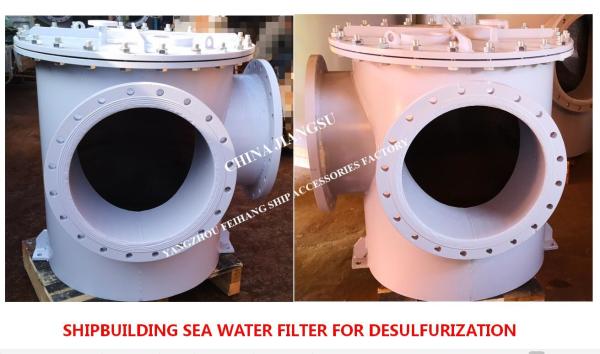

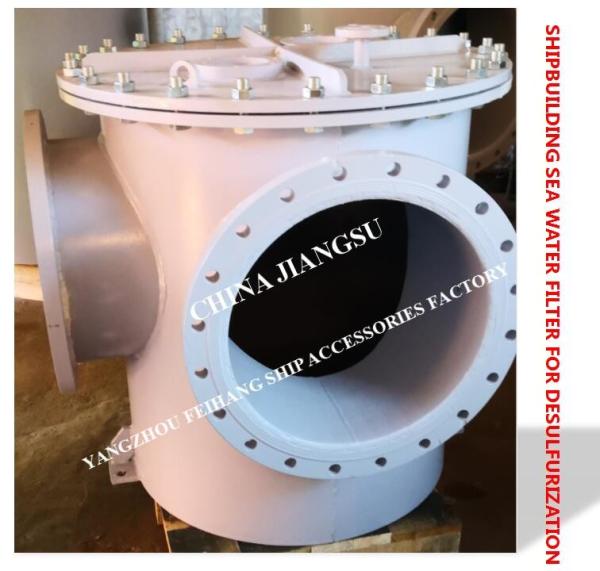

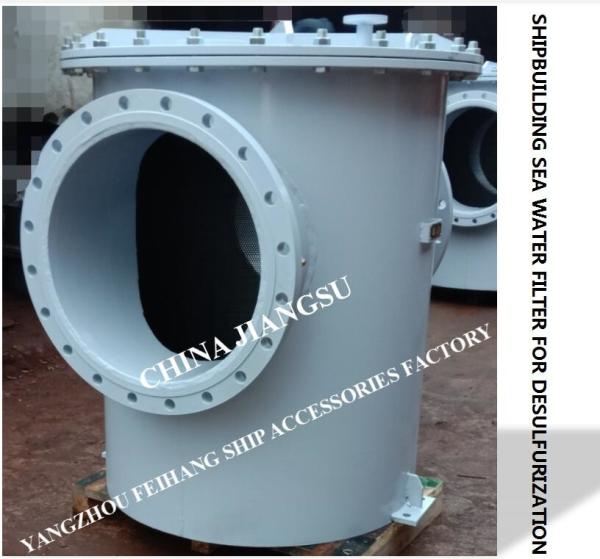

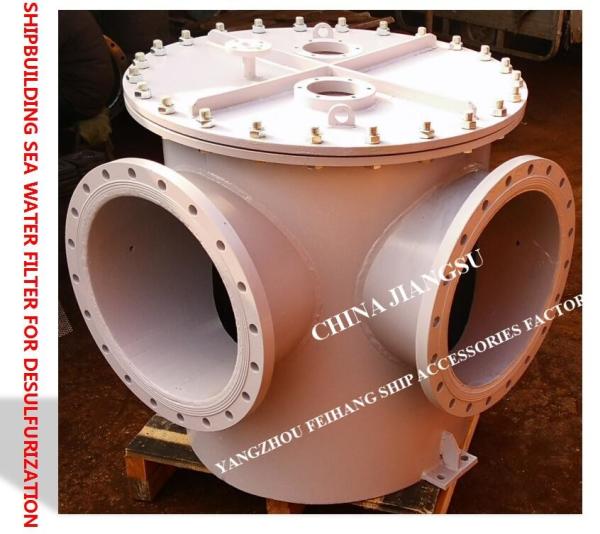

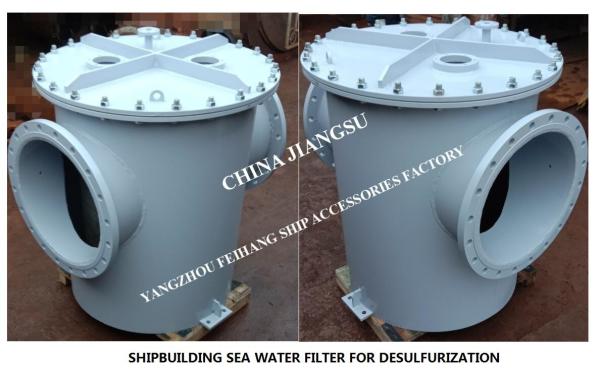

SEA WATER FILTER FOR DESULFURIZATION

SEA WATER STRAINER FOR DESULFURIZATION TOWER

MADE IIN CHINA YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY

First, the technical requirements for the seawater filter of the desulfurization system:

Main seawater filter: 4 sets/each set of ships, detailed technical requirements are as follows:
(Yangzhou Feihang Ship Accessories Factory) It is necessary to install the two electrodes on the top of the cover plate of the main seawater filter, and supply them as a whole.

1. Special seawater filter for desulfurization system-The main seawater filter for desulfurization tower is made of Q235-A carbon steel, nominal diameter is DN600, executive standard number: CB/T497-94-AS600 CB/T97-2012, the form is Straight-through type, approved drawings are confirmed in the final design approval stage.
2. The seawater filter for the desulfurization system-the inlet and outlet flanges of the main seawater filter for the desulfurization tower are 10600 GB2506-89 flange standards, and the inlet and outlet take-ups need to add G1/2" internal threaded pipe seats;
2. Special seawater filter for desulfurization system-The top of the cover plate of the main seawater filter for the desulfurization tower needs to be connected to the DN25 vent pipe, and 1 GB/T584-99 AS25025 stop valve "No Cork" is required;

3. Special seawater filter for desulfurization system-The main body of the main seawater filter for desulfurization tower should be hot-dip galvanized or sprayed (plastic powder is Jotun paint), thickness ≥125μm;
4. The main pressure of the main seawater filter for the desulfurization system-the main pressure of the main seawater filter for the desulfurization tower is 0.4Mpa. After the manufacturing is completed, the water pressure of 0.6Mpa should be used for the strength and tightness test for 5 minutes without leakage;
5. Desalination system special seawater filter-the ratio of the internal filter barrel channel area (after MGPS installation) to the nominal diameter of the special seawater filter for the desulfurization tower is implemented according to CB/T497-2012, not less than 2.5 times;
6. Special seawater filter for desulfurization system-The nameplate of the main seawater filter for desulfurization tower is because of stainless steel or copper nameplate. The nameplate is in Chinese and English. The content of the label includes at least: name, factory number, model, nominal pressure, limit temperature, manufacturing Date, name of manufacturer, material of main parts;

Third, the certificate requirements for the main seawater filter for the desulfurization system-the main seawater filter for the desulfurization tower:

(Yangzhou Feihang Ship Accessory Factory) need to provide factory certificate, no asbestos declaration certificate, and list of hazardous substances.

Fourth, the main seawater filter for the desulfurization system-the drawing of the main seawater filter for the desulfurization tower:
(Yangzhou Feihang Ship Accessories Factory) need to provide 1:1 scale CAD approved drawings and working drawings (Chinese and English versions), and 5 copies of cardboard completion materials (English version).

Professional customers at home and abroad consult our company (Yangzhou Feihang Ship Accessories Factory) for various seawater filters! !

Marine carbon steel galvanized main seawater filter for desulfurization system AS600 CB/T497-2012

BRS500 CB/T497-2012 imported seawater filter for desulfurization tower
Seawater filter AS600 CB/T497-2012 for desulfurization system submarine door outlet
Desulfurization tower dedicated high-level submarine door seawater filter BRS500 CB/T497-2012
Desulfurization system special low-level submarine door seawater filter BRS500 CB/T497-2012
Desulfurization tower special host seawater pump imported seawater filter AS600 CB/T497-2012
Desulfurization system special auxiliary machine seawater pump inlet main seawater filter BRS500 CB/T497-2012
Desalination tower special fresh water pump imported sea water filter AS600 CB/T497-2012
BRS500 CB/T497-2012 main seawater filter imported from bulk seawater pump for desulfurization system
Main seawater filter AS600 CB/T497-2012 imported from the daily fresh water pump for the desulfurization tower
