Specifications
Brand Name :
Fei Hang
Model Number :
AS
Certification :
Inspection Report
Place of Origin :
China Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Delivery Time :
The 5 day
Packaging Details :
Wooden box
Reference standard :
CB/T497-2012
Connection mode :
Flange connection
Nominal pressure :
1.0Mpa
Mesh size :
8mm
Surface treatment :
Hot dip galvanized
Description

SEA WATER FILTER-HIGH PRESSURE SEA WATER FILTER

MADE IIN CHINA YANGZHOU FEIHANG SHIP ACCESSORIES FACTORY

Main engine seawater pump imported marine basket seawater filter AS10250, auxiliary engine seawater pump imported basket

CB/T497-2012 Marine Basket Seawater Filter-High Pressure Seawater Filter

In order to adapt to the working pressure level of the pipeline in the ship's pipeline, our company has improved and upgraded the CB/T497-2012 standard to manufacture a series of seawater filters that can adapt to 10 kg or more.

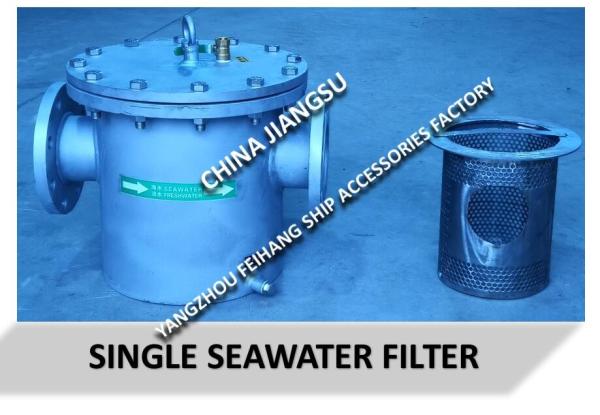

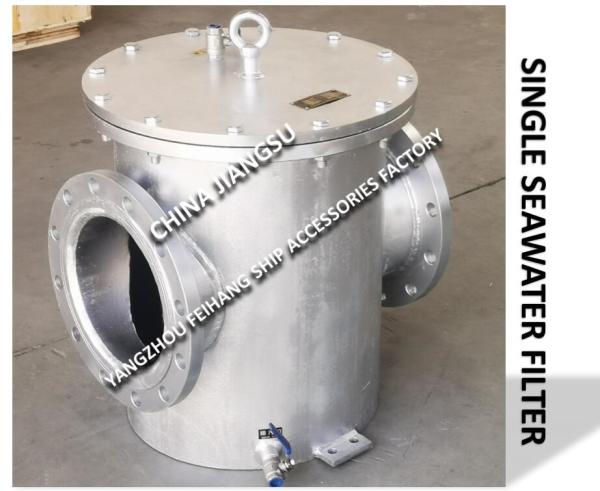

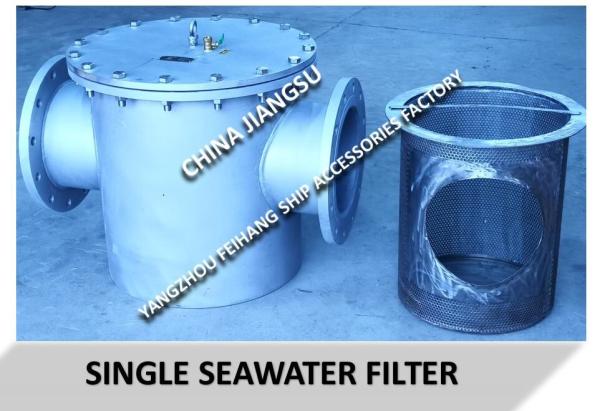

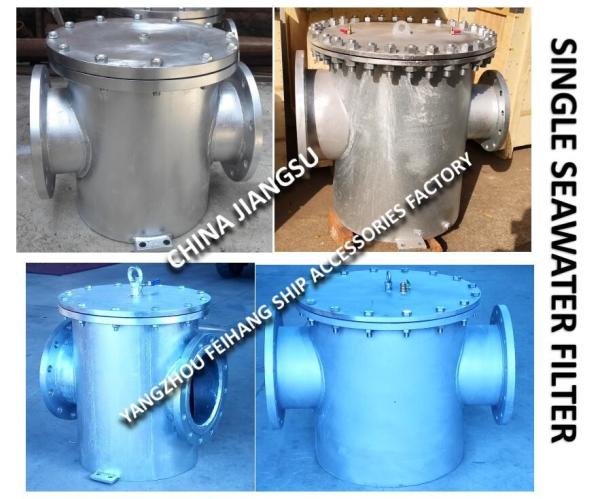

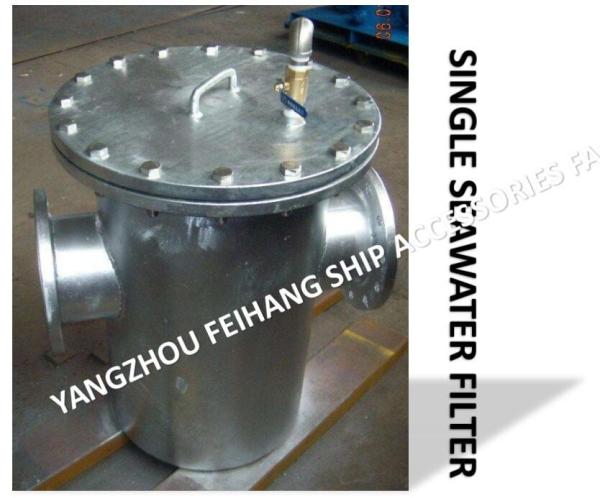

This high-pressure seawater filter CB/T497-2012: mainly consists of the connecting pipe, main pipe, stainless steel filter cartridge, flange, flange cover and fasteners. After the liquid enters the filter cartridge of the seawater filter through the main pipe, the relevant impurities are filtered by the filter cartridge and the impurity particles are blocked and settled to the bottom of the filter cartridge, while the clean seawater passes through the filter cartridge and is discharged from the filter outlet, thus playing a rough filtering effect.

Main engine seawater pump imported marine basket seawater filter AS10250, auxiliary engine seawater pump imported basket

Parts Name Material
Name
Body/Cover Carbon steel galvanized
Filter 316stainless steel
Flange Carbon steel galvanized
Exhaust valve 304 stainless steel
Bolt Carbon steel galvanized
Seal ring Ding Qing rubber

Main engine seawater pump imported marine basket seawater filter AS10250, auxiliary engine seawater pump imported basketMain engine seawater pump imported marine basket seawater filter AS10250, auxiliary engine seawater pump imported basketMain engine seawater pump imported marine basket seawater filter AS10250, auxiliary engine seawater pump imported basket

Marine seawater cooling system basket type seawater filter-high pressure seawater filter AS10250CB/T497-2012
Main engine seawater pump imported high-pressure basket type seawater filter AS10300 CB/T497-2012
AS1150 CB/T497-2012 mainframe seawater pump imported basket type seawater filter
AS10100 auxiliary engine seawater pump imported basket type seawater filter CB/T497-2012
Auxiliary engine seawater pump imported basket high-pressure seawater filter, freshwater pump imported carbon steel galvanized seawater filter AS10350 CB/T497-2012
