Specifications
Brand Name :
Feiteng
Model Number :
A,AS,B,BS
Certification :
Inspection Report
Place of Origin :
Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Delivery Time :
The 3 day
Packaging Details :
Wooden box
Standard :
JIS F7203
Material :
Cast iron, stainless steel
Filter material :
stainless steel
Description

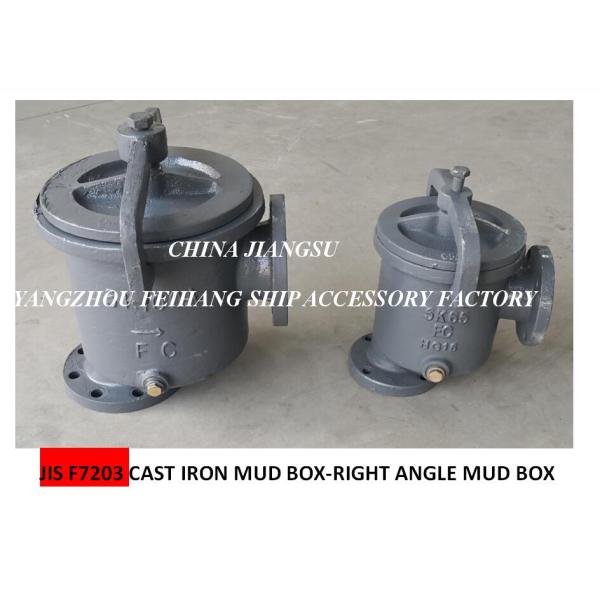

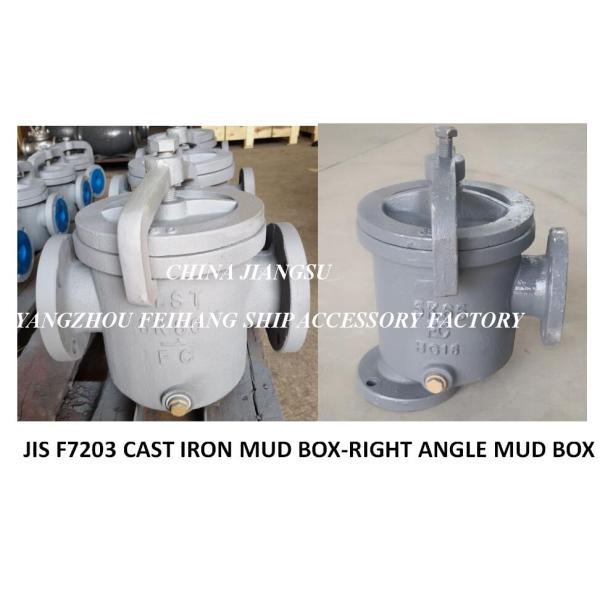

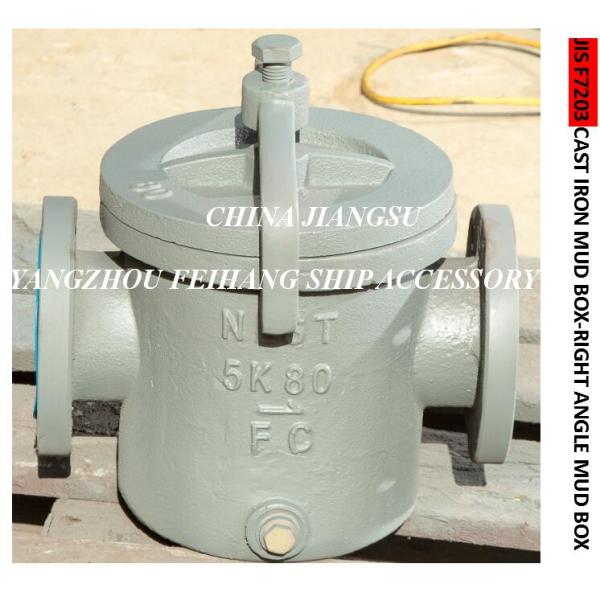

JIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOX

PRODUCT INTRODUCTION

JIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOX
MUD BOX INHALATION OF PARTS FOR SHIP MACHINERY SPACES AND SHAFT TUNNELS, BILGE WATER PIPES, APPLICABLE MEDIUM IS SEA WATER,BILGE WATER.

1.BODY MATERIAL: CAST IRON
2.STRAINER CYLINDER (SCREEN): SUS304,
3.FLANGE CONNECTION: JIS 5K, IF NEED 10K ALSO CAN ACCEPT
4.SIZE: 40A ~ 250A
5.SPECIAL REQUIREMENT WILL BE DESIGNED AS PER CUSTOMER'S DEMAND.

IF YOU ARE INTERESTED IN OUR PRODUCTS AND WANT TO KNOW MORE, PLEASE CONTACT WITH US. WE WILL REPLY AS SOON AS POSSIBLE.
JIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOXJIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOX

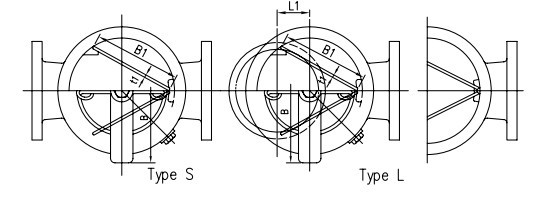

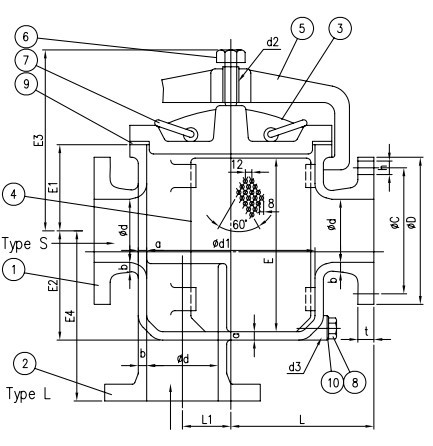

Overall&Structure Dimensions

DN

mm

 d L L1 E Flange
D C n-h t
40 40 90 22.5 110 120 95 4-15 16
50 50 120 40 135 130 105 4-15 16
65 65 150 52.5 179 155 130 4-15 18
80 80 160 55 203 180 145 4-19 18
100 100 190 70 233 200 165 8-19 20
125 125 235 87.5 323 235 200 8-19 20
150 150 280 110 398 265 230 8-19 22
200 200 330 135 490 320 280 8-23 24
250 250 380 155 630 385 345 12-23 26

JIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOXJIS F7203 CAST IRON MUD BOX-JAPANESE STANDARD CAST IRON RIGHT ANGLE MUD BOX
