Specifications
Brand Name :
Fei Hang
Model Number :
S/LA/LB
Certification :
Inspection Report
Place of Origin :
China Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
10pcs/day
Delivery Time :
The 5day
Packaging Details :
Wooden box
Design Standards :
JIS F7121
Nominal diameter :
25A-500A
Nominal pressure :
0.3Mpa
Body Material :
Cast iron
Filter Material :
SUS316
TYPE :
Straight type, right angle type
Surface treatment :
epoxy paint
Craft :
Casting
Description

CAN WATER STRINERS-CAN WATER FILTER

SEA WATER STRINERS-SEA WATER FILTER

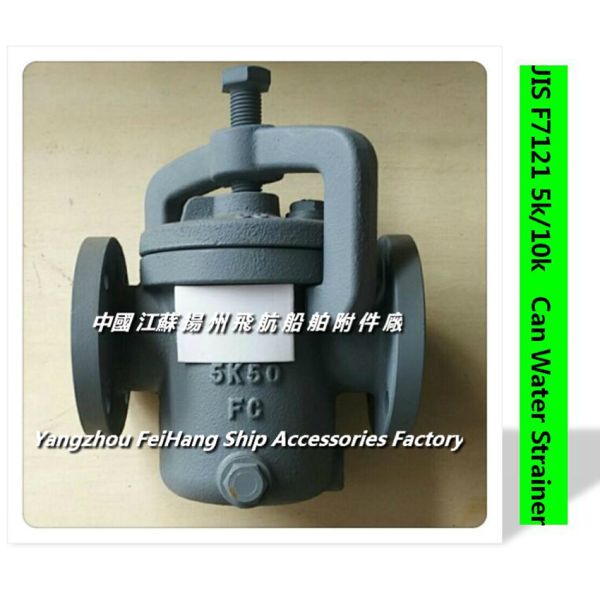

Made of casting steel and used for water pipelines in ship.Complete with inner strainer.Connection flange size are conform to JIS 5kgf/cm2 or JIS 10kgf/cm2 standard.

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water FilterJIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter

JIS F7121 Water Heaters - Cylindrical Water Basins - Can Type Water Heaters
Nissing-Tsutsu-shaped water heaters - Hokotsu-chen-tubular water heaters
Major Zero Materials:

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter

Body 铸铁 cast iron
Filter Filter Element-SUS304不锈钢
Strand JIS F7121-1998
TYPE S-TYPE / LA-TYPE / LB-TYPE
SIZE 25A-550A
PRESSURE 0.39Mpa
OTHER JIS F7121

Marine Can Water Filters -Marine Can Water Strainers

Marine Sea Water Filters -Marine Sea Water Strainers

The type method:
Kaye-ne-shiki fee IMPA-type

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter

CODE Nominal Diam. Flange

Total Height

Weight

kgs

Face to Face

Diam.

Bolt

P.C.D

NO.

Diam.

872001 25 170 95 75 4 M10 180 ≈5.80
872002 32 190 115 90 4 M12 215 ≈8.23
872003 40 190 120 95 4 M12 215 ≈8.43
872004 50 200 130 105 4 M12 240 ≈10.3
872005 65 250 155 130 4 M12 305 ≈18.5
872006 80 270 180 145 4 M16 340 ≈24.0
872007 100 320 200 165 8 M16 400 ≈35.7
872008 125 400 235 200 8 M16 485 ≈62.2
872009 150 460 265 230 8 M16 575 ≈88.6
872010 200 550 320 280 8 M20 665 ≈141
872011 250 680 385 345 12 M20 825 ≈246
872012 300 760 430 380 12 M20 920 ≈321
872013 350 820 480 435 12 M22 1030 ≈428
872014 400 880 540 495 16 M22 1135 ≈518

Usually possible:

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water FilterJIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter

IMPA872001 Marine Can Water Filters Ship Cylindrical Water Heater 5K-25A JIS F7121
IMPA872002 Marine Sea Water Filters 5K-32A Ship Tubular Basin
IMPA872003 5K-40A Water Heaters -- Cylindrical Water Basins -- Can-type Water Heaters
IMPA872004 Water Heaters -- Tubular Water Heaters-Can Type Water Heater 5K-50A JIS F7121
IMPA872005 5K-65A Daily Tube Type Water Basin - A Bottle-Shaped Water Bottle
IMPA872006 5K-80A 5K-80A-9-9-Tsunatsu-shaped Water Heater-Hose-Chen-Jis F7121

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872007 Daily Water Bottle Type Water Heater for Ships - 5K-100A

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872008 Ship's Water Heater -- Ship-Type Water Heater-Ship Can Type Water Heater 5K-125A JIS F7121

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872009 5K-150A Water Bottle Type Water Heater for Ships - Water Bottle Type Water Heater

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872010 A Daily Tube Type Water Heater for Ships - 5K-200A
IMPA872011 Ship-of-Ship Daily Water Bottle Type Water Heater - Hokotsu-Gata 5K-250A JIS-250A

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872012 5K-300A Water Bottle Type Water Heater for Ships - Water Bottle Type Water Heater
IMPA872013 5K-350A Water Bottle Type Water Heater for Ships - Water Bottle Type Water Heater

JIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water FilterJIS F7121 Can Be Water Filter - Cylindrical Water Filter - Tank Water Filter Japanese Standard Cylindrical Water Filter
IMPA872014 Ship-to-Ship Daily Water Bottle Type Water Heater - 5K-400A

Competitive advantage:

1. Factory direct sale, competitive price.

2. Customized Service: We can customize, to customers drawings for processing. We are flexible and capable Supplier.

3. Genuine Product with Excellent Quality: Our Product are strictly complied with China Compulsory Certification. 100% guarantee test before delivery.

4. After Sales Service and Technical Assistance: 24 hours technical support by email. Our professional team is always here willing to be your technical consultant.

5. Delivery Time: after receiving the payment within 24-72 hours to Timely arrange raw materials, processing, production, and timely delivery.

Advantages:

1. Excellent and high quality control

2. Fast delivery

3. Competitive price

4. Small order accepted

5. Customers' drawing or samples accepted

6.Assembly line production process, assembly line depth sounding equipment

Delivery time is approx:

1. We will test them strictly before shipping.

2. We will ship it in 1-3 working days after your paying.as to the shipping time,it usually will be 6- 12 days,which will be different for different countries.

3.You can choose DHL, UPS, TNT and other international express for delivery. At the same time, it can also be sent to the freight forwarder designated by the customer (anywhere in China)

FAQ:

1. How about your price?

We specialize in customized high-quality promotional items for you and can help you meet any requirement with the most reasonable price

2. Can you produce the product as our sample or design?

Yes,we can.OEM&ODM are welcome. As long as you give us the detailed specific requirement,we can absolutely make the same samples and send to you for approval.

3. Could you send me all your catalogues and price list?

We have over thousands of products. it is really too hard for us to send you all our

catalogue and price list for you, please let us know the items, size details which you

are interested in, so we can offer you the price list for you reference.

Packaging & Shipping:

Shipping by sea or air Express by DHL, FEDEX,UPS,TNT and so on Packed in standard exporting carton or as your request

TipsTips:

1. Please make sure your address informations correct ,so the parts can safe delivery.

2. When you place orders,please inform me how to make the Commercial invoice(Customs invoice).

3. Customers please leave your contact details,such as e-mail address,mobile no.,when I take delivery,I need the above information,Thanks.

If you have any question,pls feel free to contact us,we are always at your service.
