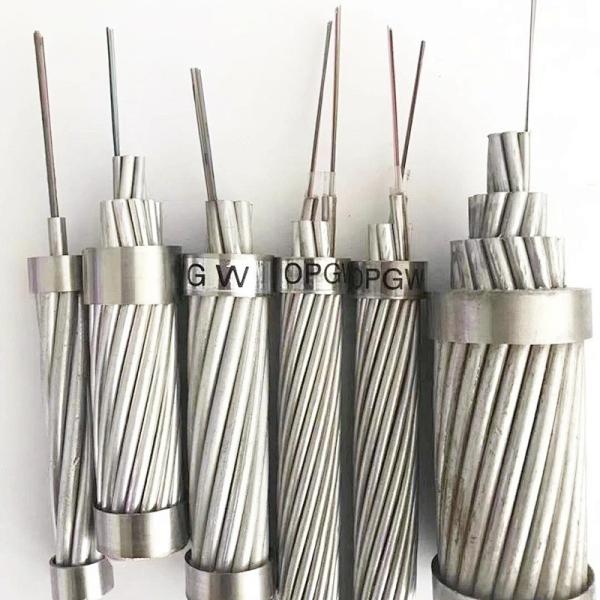

FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
Specifications
Model Number :
fiber optic cable
Type :
Fiber Optic Cable
Place of Origin :
Zhejiang, China
Brand Name :
OEM
Number of Conductors :
4
Model NO. :
Cable
Certification :
RoHS, CE, ISO9001
Sheath Material :
PE or LSZH
Wind Speed :
25m/S-35m/S
Water Blocking System :
Filling Compound/Dry Water Resistant
Fiber Count :
1-4 Cores
Operating Temperature :
-50 ~ +60 C
Keywords :
ADSS Cable
Keywords1 :
GJFJV
Keywords2 :
elf-supporting fiber cable
MOQ :
100 kiloamperes
Price :
$0.80/kiloamperes 100-999 kiloamperes
Description

FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
VR
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
Products Description
All Dielectric Self-supporting Aerial Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound.
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.
After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
APPLICATIONS
· The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power
lines 10kv and 35kv, PE outer sheath is applied
· FOR power lines 110kV and 220KV, AT outer sheath is applied
· The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans
FEATURES
· Good mechanical and environmental characteristics. · Flame retardant characteristics. · Excellent mechanical characteristics. · Soft, flexible, easy to installation. · Meets international standards.
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
Fiber style
Unit
SM G652D
SM G657A1
SM G657A2
Condition
nm
1310/1550
1310/1550
1310/1550
Attenuation
dB/km
≤0.36/0.23
≤0.35/0.21
≤0.35/0.21
Dispersion
1310nm
Ps/(nm*km)
≤18
≤18
≤18
1550nm
Ps/(nm*km)
≤22
≤22
≤22
Zero dispersion wavelength
nm
1312±10
1312±10
1300-1324
Zero dispersion slope
ps/(nm²×Km)
≤0.091
≤0.090
≤0.092
PMD Maximum Individual Fiber
[ps/√km]
≤0.2
≤0.2
≤0.2
PMD Design Link Value
ps/(nm²×Km)
≤0.08
≤0.08
≤0.08
Fiber cutoff wavelength λc
nm
>=1180,≤1330
>=1180,≤1330
>=1180,≤1330
Cable cutoff wavelength λcc
nm
≤1260
....
....
MFD
1310nm
um
9.2±0.4
9.0±0.4
9.8±0.4
1550nm
um
10.4±0.8
10.1±0.5
9.8±0.5
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
Fiber Specifications
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
FTTH/FTTX Fiber Optic Opgw Communication Overhead Cable Strip 2 to 144 Cores AA and as Wire Fiber Cable
1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance
payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very
competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our
contract!

6. How do you arrange the shipping?

Solution A: Fibconet take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish
the shipping.

7. How can you guarantee the delivery time?

1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical
test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.
###2FTTH Waterproof Fiber Optic OptiTap SC APC connector Optical Patchcord
10. Why choose Fibconet Fiber Optic to cooperate?
###3FTTH Waterproof Fiber Optic OptiTap SC APC connector Optical Patchcord
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.
###1FTTH Waterproof Fiber Optic OptiTap SC APC connector Optical Patchcord

Please always feel free to contact us for any questions, it's our honor to be on service of you!
