Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Specifications
Model Number :
Fiber Cable
Type :
Fiber Cable
Place of Origin :
Zhejiang, China
Brand Name :
oem
Number of Conductors :
≥ 10
Model NO. :
Fiber cable
Core :
Multicore
Certification :
RoHS, CE, ISO9001
Sheath Material :
PVC or LSZH
Fiber Mode :
fiber cable outdoor
Cable Structure :
Bow Type Tight Buffer
Reinforcer :
FRP/Steel Wire
Operating Temperature :
-50 ~ +60 °C
Package :
Drum
Supply Ability :
1000 Kilometer/Kilometers per Month
MOQ :
30 kilometers
Price :
$1.00/kilometers 30-499 kilometers
Description
Products Description
Fiber Optic Cable Fiber

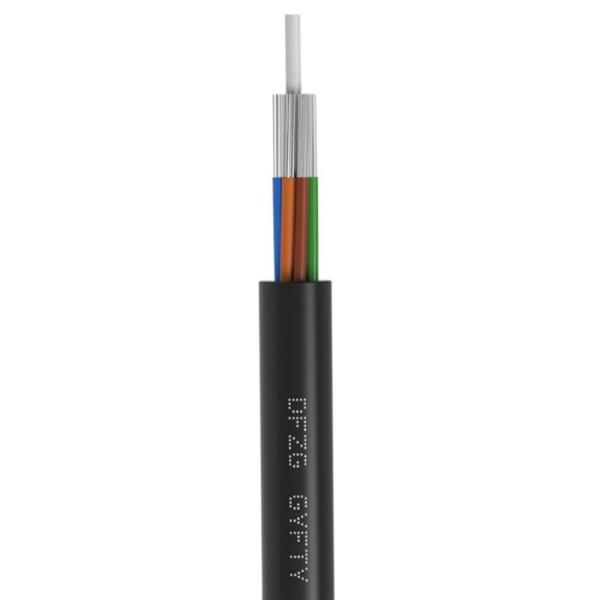

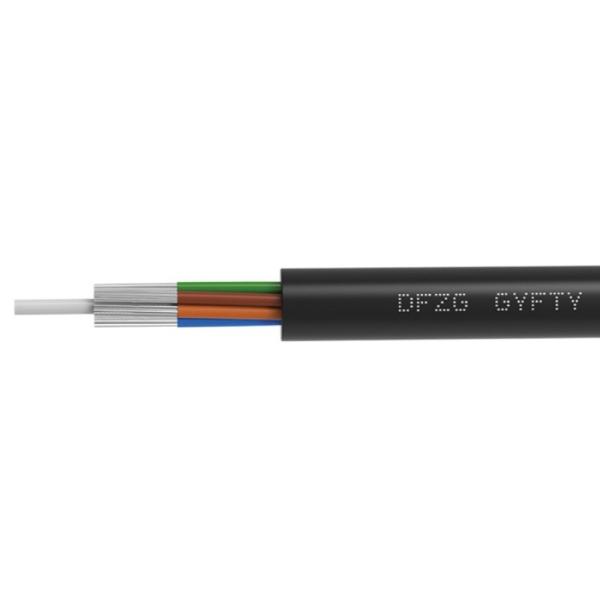

The GYFTY cable structure is made by placing 250μm fiber in a loose tube made of a high modulus material, which is filled with a waterproof compound. The center of the cable core is a glass fiber reinforced plastic (FRP). The loose sleeve (and filler rope) is twisted around the central strengthening core to form a compact and circular cable core. The gap in the cable core is filled with water-blocking filler. The cable core is extruded with a layer of polyethylene outer sheath to form the cable.
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance





Characteristics
● Has good mechanical properties and temperature characteristics ● Loose casing material itself has good water resistance and
high strength
● The tube is filled with special oil paste to protect the optical fiber
● Good pressure resistance
● PE sheath has good resistance to ultraviolet radiation
● Single center non-metallic FRP strengthening core, in the case of ensuring
tensile strength greatly reduce the weight of the cable, and in the strong electromagnetic, high voltage induction area good
use




Product Application

● Suitable for long-distance communication and inter-office communication.
● Laying conditions: overhead, pipeline.
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
item
value
Model Number
outdoor fiber optic cable
Type
Fiber Optic Cable
Place of Origin
China
Zhejiang
Brand Name
OEM
Use
FTTH
Warranty Time
20 years
Network
None
Fiber Specifications
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
Outdoor Non-Metal Reinforced Core GYFTY Fiber Optic Cable with Corrosion Resistance
1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance
payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very
competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our
contract!

6. How do you arrange the shipping?

Solution A: Fibconet take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish
the shipping.

7. How can you guarantee the delivery time?

1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical
test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

10. Why choose Fibconet Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you!
