380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
Specifications
Model Number :
Fiber Cable
Type :
Fiber Cable
Place of Origin :
Zhejiang, China
Brand Name :
oem
Number of Conductors :
≥ 10
Model NO :
AVVR Fiber cable
Core :
Multicore
Certification :
RoHS, CE, ISO9001
Fiber Mode :
fiber cable outdoor
Rated voltage AC (50Hz) :
380V DC 500V
Purity of oxygen free copper wire :
99.99%
Long term allowable working temperature :
≤+70℃
Laying temperature :
≥-15℃
relative humidity :
≤98%
Execution standards :
JB/T8734.4-2016
Supply Ability :
1000 Kilometer/Kilometers per Month
MOQ :
30 kilometers
Price :
$1.20/kilometers 30-499 kilometers
Description
Products Description
AVVR cable

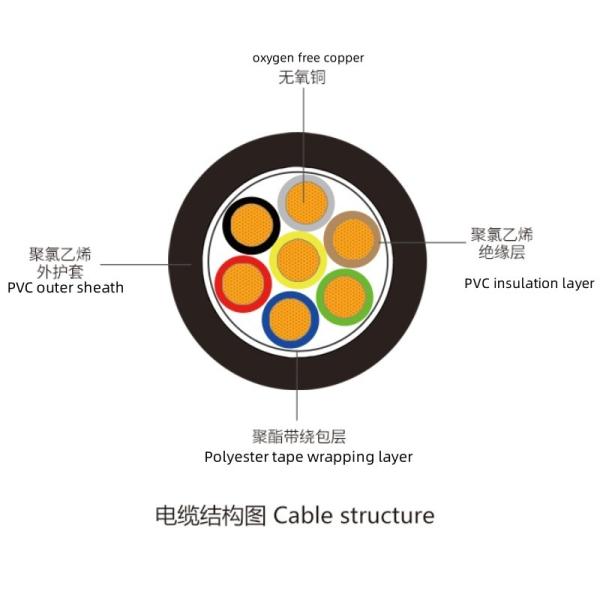

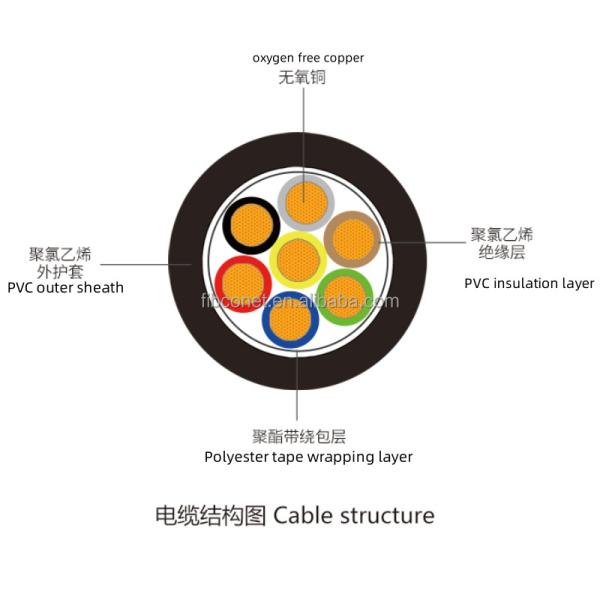

also known as copper core PVC insulated PVC sheathed flexible cable for installation, is a type of sheathed wire. A represents installation cables, the first V represents polyvinyl chloride (PVC) insulation, the second V represents polyvinyl chloride (PVC) sheath, and R represents flexible structure wires and cables. Mainly refers to electronic cables with a conductor cross-section of less than 0.5mm.
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
Characteristics
● The conductor is finely twisted with high purity oxygen-free copper wire (purity up to 99.99%)
● New imported environmental protection polyvinyl chloride, anti-aging, wear resistance, waterproof, oil resistant, chemical corrosion resistant, non-toxic and other characteristics
● Insulated core optimum pitch twisted composite cable
● New imported environmental protection
polyvinyl chloride sheath
● Cable with oil resistance, wear resistance, acid and alkali resistance, long service life and so on
● Cable using accurate meter device to ensure length accuracy
● The cable has been fully inspected for electrical performance to ensure product quality




Technical performance
Rated voltage AC (50Hz)...... 380V DC...... 500V

Test voltage AC (50Hz)...... 1500V

Insulation resistance (70℃) : ≥ 20mω.km
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
Nominal cross-sectional area of conductor mm2
Maximum diameter of single wire in conductor mm
Insulation thickness specified value mm
average outside diameter
Maximum conductor resistance Ω/km at 20 ℃
Minimum value of insulation resistance at 70 ℃ M Ω. km
Lower limit mm
Upper limit mm
Copper core
Tin plated copper core
0.12
0.16
0.4
3.1
12.5
158
163
0.016
0.2
0.16
0.4
3.6
13.5
92.3
95
0.014
0.3
0.16
0.5.
4.1
15.5
69.2
71.2
0.014
0.4
0.16
0.5
4.4
16
48.2
49.6
0.012
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
Fiber Specifications
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
380V Copper Core PVC Insulated PVC Sheathed Armored Cable Fiber Optic Cable AVVR Type
1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance
payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very
competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our
contract!

6. How do you arrange the shipping?

Solution A: Fibconet take care of everything. Clients only need to collect cargo in local or wait cargo delivery to their office.
There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them
according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follow the company's instructions and finish
the shipping.

7. How can you guarantee the delivery time?

1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the
time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical
test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

10. Why choose Fibconet Fiber Optic to cooperate?
1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you!
