Specifications
Model Number :
Optical PLC Splitter
Type :
PLC splitter
Place of Origin :
Zhejiang, China
Brand Name :
Fibconet PLC Splitter
Use :
FTTH PLC Splitter
Warranty Time :
1 YEAR PLC Splitter
Network :
bluetooth, wifi, 4g, 3G
Model NO. :
PLC Splitter
Other Name :
Cassette Box/Plug-in PLC Splitter
Specification :
1*16 PLC Splitter
Shell Material :
ABS/PP/PC PLC Splitter
Transport Package :
PCS PLC Splitter
Trademark :
Fibconet PLC Splitter
Origin :
Ningbo PLC Splitter
HS Code :
3901100001 PLC Splitter
Production Capacity :
800000 Pieces PLC Splitter/Year
keyword :
PLC Splitter
Packaging Details :
PLC Splitter/PE bag
Supply Ability :
1000000 Piece/Pieces per Month
MOQ :
1000 pieces
Price :
$5.00/pieces 1000-9999 pieces
Description
Products Description
FTTH Fiber Optic 1*16 SC/LC APC/UPC Cassette Type PLC Optical PLC Splitter with 1 Time
PLC Splitter APPLICATIONS

· FTTx
· Cable television (CATV)
· Local area networks (LAN)
· Test equipment
· Passive optical networks(PON)
PLC Splitter FEATURE
· Wide operating wavelength range:from 1260nm to 1650nm
· Wide Operating Temperature: from -40ºC to 85ºC
· Good channel-to-channel uniformity
· High reliability and small size
· Adopt high strength stainless steel, pass salt spray test
· Adopt 100% new raw material, ROHS compliance
· Low Insertion loss&Low PDL Compact Design
FTTH Fiber Optic 1*16 SC/LC APC/UPC Cassette Type PLC Optical PLC Splitter with 1 Time
Signification
1xN PLC Splitter Specification
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or as customers' order
Port Configuration
1x2
1x4
1x8
1x16
1x32
1x64
1x128
Insertion Loss (dB)
3.8/4.0
7.1/7.3
10.2/10.5
13.5/13.7
16.5/16.9
20.5/21.0
23.8/24.2
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.0
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.2
0.25
0.3
0.35
0.4
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.4
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85
2xN PLC Splitter Specification
Operating Wavelength(nm)
1260~1650
Fiber Type
G657A1 or as customers' order
Port Configuration
2x2
2x4
2x8
2x16
2x32
2x64
2x128
Insertion Loss (dB)
4.0
7.6
11.0
14.4
17.5
21.0
24.5
Loss Uniformity (dB)
0.6
1.0
1.2
1.5
1.8
2.2
2.5
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.35
0.4
0.4
Wavelength Dependent Loss(dB)
0.3
0.4
0.5
0.5
0.5
0.5
0.5
Temperature Dependent Loss (-40~85 ) (dB)
0.4
0.4
0.5
0.5
0.5
0.5
0.5
Return Loss (dB)
55/50
Operating Temperature
-40~+85
Directivity (dB)
≥ 55
Storage Temperature
-40~+85

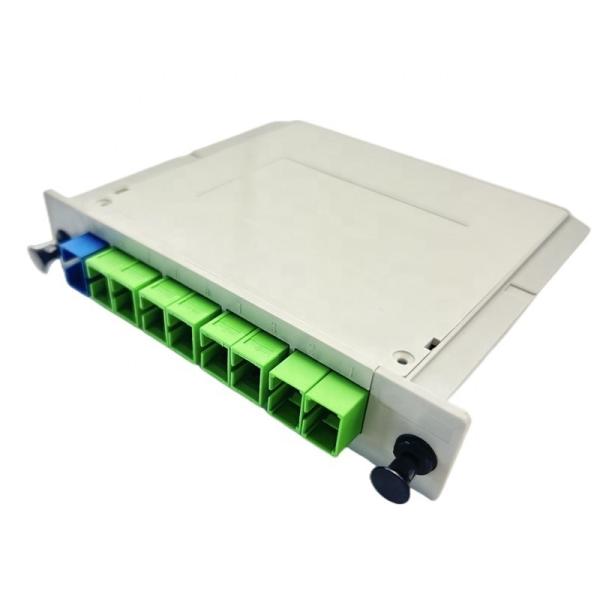

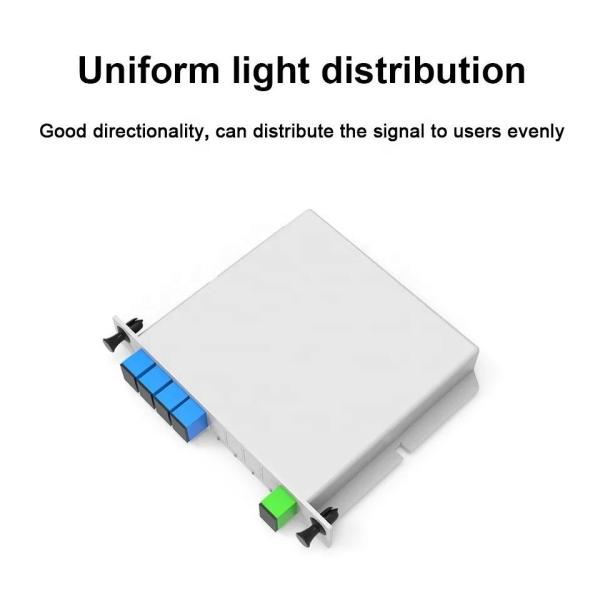

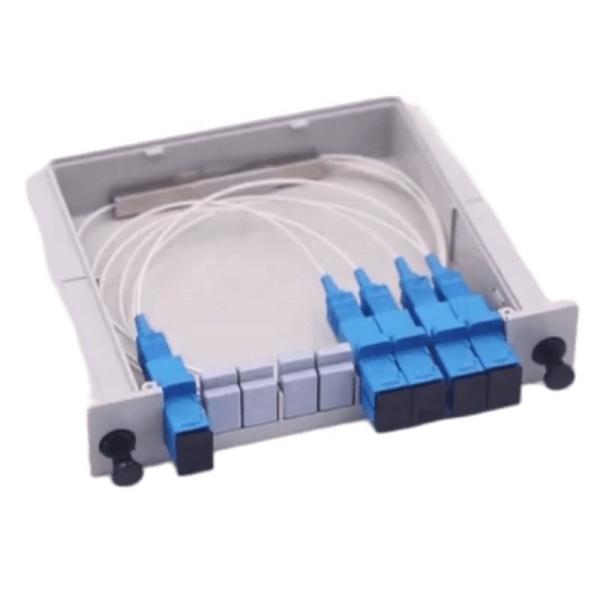

Details Images
FTTH Fiber Optic 1*16 SC/LC APC/UPC Cassette Type PLC Optical PLC Splitter with 1 Time
FTTH Fiber Optic 1*16 SC/LC APC/UPC Cassette Type PLC Optical PLC Splitter with 1 Time
FTTH Fiber Optic 1*16 SC/LC APC/UPC Cassette Type PLC Optical PLC Splitter with 1 Time
FAQ

Title goes here.

1. Are you a manufacturer or trade company?

We are the manufacturer with more than 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal
Box. Except that, we have very good prices for part of fiber tools!

4. How can we place order?

After the agreement be made on the product parameters, we will make proforma invoice for you to confirm. After advance payment
(deposit) received, we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship
forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which offers a
competitive freight cost.

5. What is the quality for your products?

All of our products are with high quality. We promise 100% recall policy if products are unqualified, and we can write it into our
contract!

6. How do you arrange the shipping?

Solution A: Fibconet takes care of everything. Clients only need to collect cargo in local port or wait cargo delivery to their
office. There are two types of shipping methods available: by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four to seven days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, Fibconet follows the shipping company's instructions
and finish the delivery.

7. How can you guarantee the delivery time?

To avoid the delay, we have built a complete and professional procedure system from production to the delivery. We have rich
experience on production and delivery. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality and quantity of goods, we would quote the best matching price for you all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and meet
exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, optical test. All the products are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

10. Why choose Fibconet Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate the new products based on our rich experience .
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you!
