Specifications
Model Number :
FWDM
Type :
FWDM
Place of Origin :
China Ningbo
Brand Name :
OEM
Use :
FTTH
Warranty Time :
2 years
Network :
Wireless Lan, 4g, 3G
Model NO. :
Fiber Optic FWDM
Connectors :
Sc/FC/LC/St
Housing Material :
Stainless Steel
R Wavelength :
1310nm/1490nm
T Wavelength :
1550nm
Keywords1 :
Fiber Optic FWDM
Keywords2 :
FWDM splitter
Keywords3 :
FWDM cwdm
Production Capacity :
10, 000 PCS Per Month
Packaging Details :
Fiber Optic FWDM per Blister bag
Port :
Fiber Optic FWDM from Ningbo
Supply Ability :
100000 Piece/Pieces per Month
MOQ :
1000 pieces
Price :
$2.20/pieces 1000-9999 pieces
Description
Products Description
Filter WDM module extensively used in optical amplifiers, WDM networks. The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range. It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive businessetc.It works on 1310nm/1490nm, so CATV signal here is delivered over same fiber using 1550nm, and FWDM is a place where all this get together.

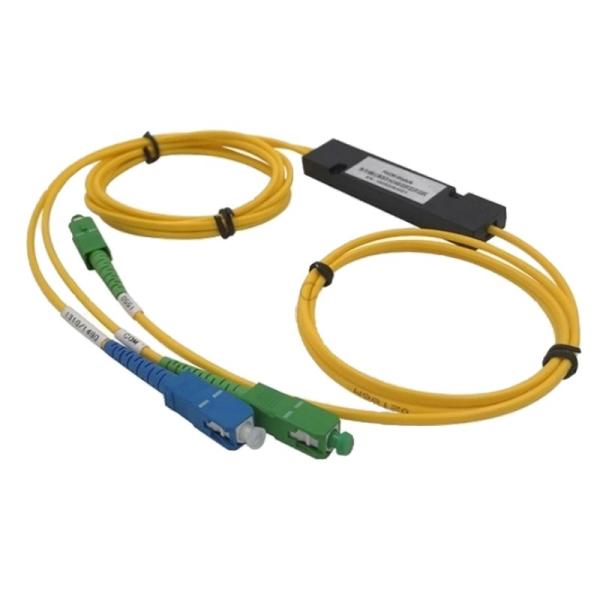

Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission

Product Features:

* Wide Wavelength Range
* Low Insertion Loss
* High Channel Isolation
* High stability and reliability
Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission

Applications:

* System Monitoring
* Transmitters and Fiber
* Passive Optical Network (PON)
* Fiber optical amplifier
* CATV System
* FTTH System
Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission






Compliance:

Telcordia GR-1209-CORE-2001
Telcordia GR-1221-CORE-1999 YD-T2000.1-2009 RoHS
Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission
Type
Standard
Dual-window Brad
Single-Window Broadband
Central Wavelength(nm)
1310nm or 1550nm
1310nm and 1550nm
1310nm or 1550nm
Bandwidth(nm)
±20
±40
±40
Star Structure
4*4 8*8 16*16
4*4 8*8 16*16
4*4 8*8 16*16
Tree Structure
1*4 1*8 1*16
1*4 1*8 1*16
1*4 1*8 1*16
Typical Insertion Loss(dB)
6.3 9.5 13.0
6.6 9.6 13.2
6.6 9.6 13.2
Uniformity(dB)
0.7 1.0 1.3
1.5 2.2 3.0
0.9 2.8 3.7
PDL(dB)
0.10
Mini. Directivity(dB)
60
Operating Temperature(ºC)
-40~+75
Storage Temperature(ºC)
-40~+85
Packing Type
Customer Specify
Industry Standard
Telcordia GR-1221-CORE
Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission
Fiber Optic FWDM Connectors St FC Sc LC 2.0mm 1.0m Cable Box for Data Transmission
1. Are you a manufacturer or trade company? We are the manufacturer with nearly 20 years' history. 2. What is your fiber brand? Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC 3. What is your main product? Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal Box, except that, we have very good prices for part of the fiber tools! 4. How can we place order? After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight costs! 5. What is the quality of your product? All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract! 6. How do you arrange the shipping? Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days). Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping. 7. How can you guarantee the delivery time? 1. To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich experience. We can regulate the penalty clause in the contract for the late delay. 8. What's your best price for your passive fiber optic product? Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time. 9. What is your quality control for your fiber optic product? 1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand. 2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface, physical test, and optical test. They are 100% tested. 3. Optical Test. Our products are strictly tested following IEC and ITU standards. 4. We have 30% spot test by Quality Assurance Department after the products are finished. 10. Why choose FIBCONET Fiber Optic to cooperate? 1. We have first-class production line and strict quality management system. 2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment. 3. We can provide the most competitive price to meet your budget. 4. We also design and innovate new products based on our rich experience. 5. We have professional team to provide comprehensive one-stop service for you. Please always feel free to contact us for any questions, it's our honor to be in service of you Features!
