FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
Specifications
Model Number :
SC APC Fiber Optic Connector Kit
Type :
SC APC Fiber Optic Connector Kit
Place of Origin :
Zhejiang, China
Brand Name :
Fibconet
Use :
For fiber optic connector kit components
Warranty Time :
10years
Network :
None
Product name :
SC APC Fiber Optic Connector Kit
Application :
FTTX, cable subway, local area network
Color :
Customized Colors
Material :
Plastic + Metal
Fiber Count :
Simplex
Polish Type :
SC APC
Cable Diameter :
0.9mm
Insertion Loss :
≤0.20dB
Return Loss :
≥60dB
Operating Temperature :
-40~85°C
MOQ :
500 pieces
Price :
$0.20/pieces 500-4999 pieces
Description
FTTH Supplier 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit
Product Details

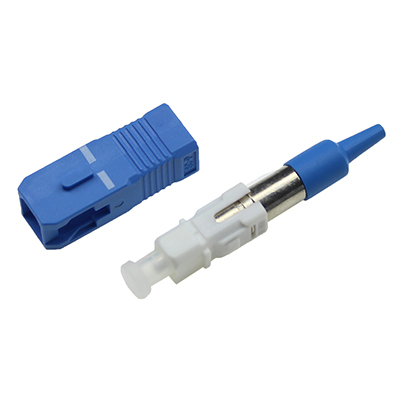

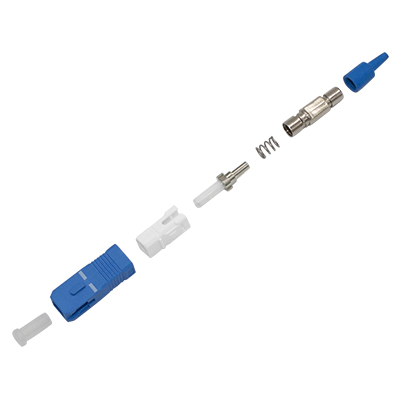

Fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assem bly plus a crimp-over sleeve and rubber boot. Fiber optic connector, or optical fiber connector, is a component to terminate the end of fiber optical cable, and enables quicker connection and disconnection than fiber splicing. It mechanically couples and aligns the fiber cores to make light pass successfully. Therefore, fiber optic connector has an important impact on the fiber optic transmission reliability and the performance of the system. Quality optical connectors lose very little light due to reflection or misalignment of the fibers.
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network





Feature
● Low insertion loss
● Good repeatability
● Good compatibility
● Minimum number of inserts 500 times
● All parts compliant with RoHs/REACH
● IEC standard compatible
● UL Flame Rating of 94V-0
● The color of the boot can be customized





Application
● Anti-corrosion
● Cable TV network
● Durable
● In active device equipment
● Low insertion loss
● Optical fiber communication system.
● A variety of tail sleeve types and colors
● Optical fiber communication system.
● SC can provide 45 ° or 90 ° bend.
●Telecommunication network
● Local Area Networks (LANs)
● Wide Area Networks (WANs)
● System debugging
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
name
SC UPC blue single-mode simplex 2.0mm/3.0mm fiber optic connector
Connector type:
SC （SM，SX）3.0mm / 2.0mm / 0.9mm
Durability
>1000times
Cable Diameter
3.0mm / 2.0mm / 0.9mm
Operating Temp
-40~85°C

Insertion Loss
≤0.20dB

Return Loss
≥55dB (UPC)
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
FTTX 0.9mm/2.0mm/3.0mm Singlemode Simplex SC APC Fiber Optic Connector Kit by Network
