PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
Specifications
Model Number :
Distribution box
Type :
Fiber optic distribution box
Place of Origin :
Zhejiang, China
Brand Name :
OEM
Use :
Fiber optic manufacture
Warranty Time :
1 year
Network :
None
Model :
8 core
Max Capacity :
48
Installation Size :
51*171*171mm
Material: :
PC+ABS
Color :
Black
Dimensions :
334*210*112mm
Temperature :
-40℃~+85℃
IP :
IP68
Insertion loss :
≤0.15dB UPC
Return loss :
≥50dB
MOQ :
100 pieces
Price :
$3,060.00/pieces 100-1999 pieces
Description

High quality Brand New PC+ABS IP68 FTTH fiber optic equipment plastic material distribution box
VR
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
Products Description

Description

The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Specification
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C






Application
· Data transmission
· Telecommunication
· Testing equipment
· WBN
· Optical fiber CATV
· LAN indoor/outdoor
Model
8 CORE
Dimension( H x W x D)
334*210*112mm
Into the largest cable diameter (mm)
ᴓ8~14
Max capacity of splicing
48
FAT Material
PC+ABS
Maximum size of branch hole
(mm)
ᴓ16
FEATURE
1. Total enclosed structure. 2. Material:PC+ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68. 3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one. 4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance. 5.Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation. 6.Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C

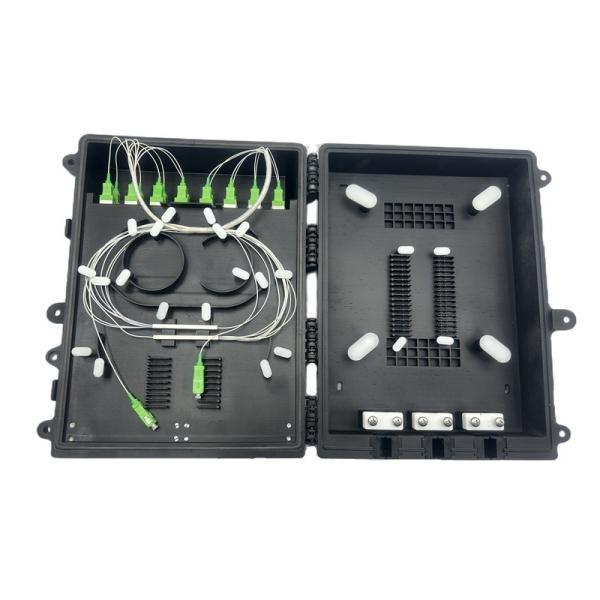

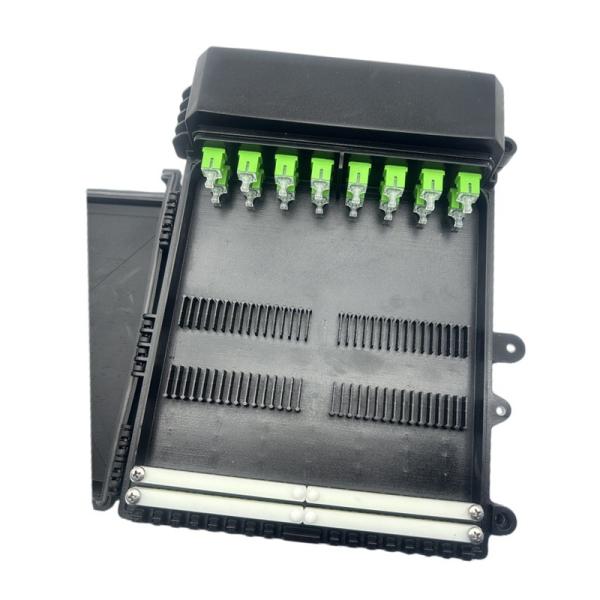

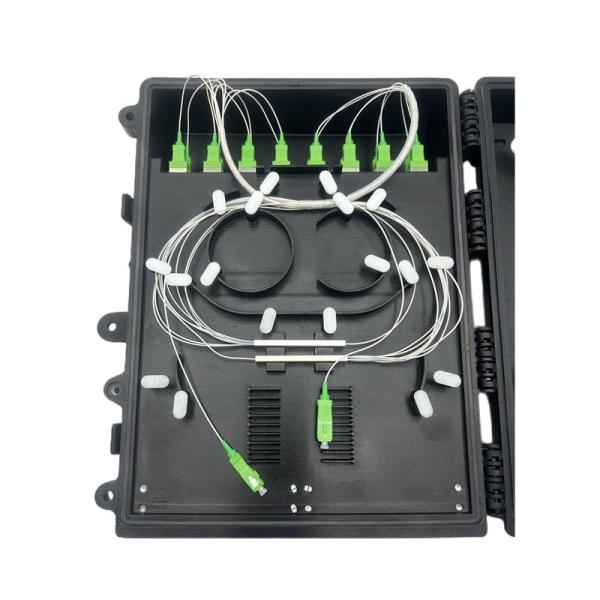

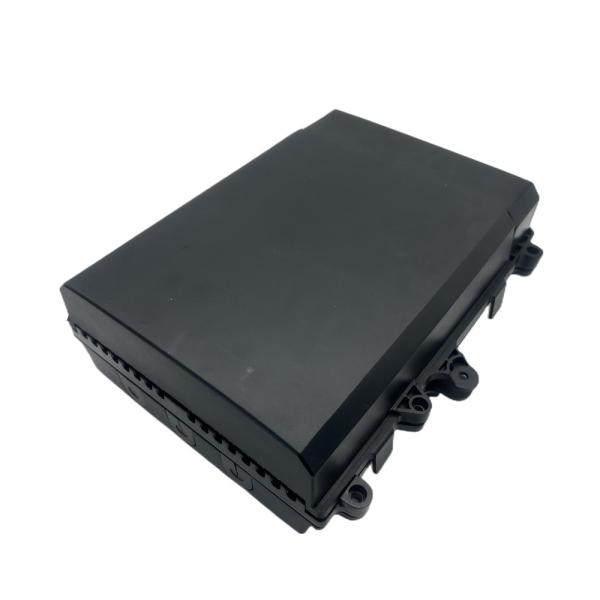

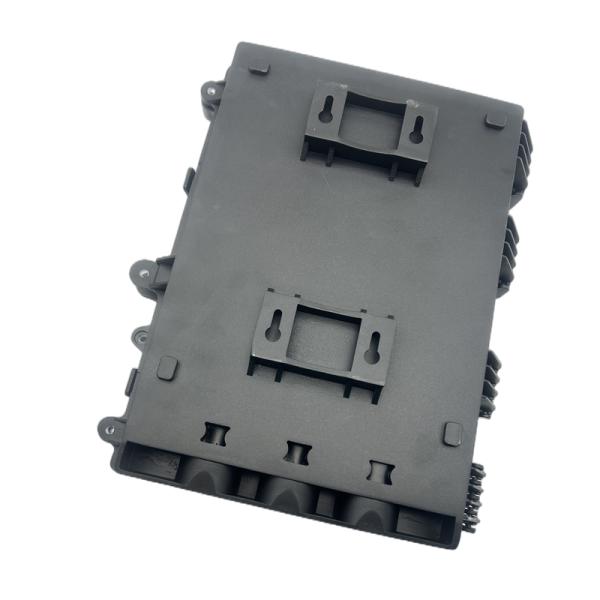

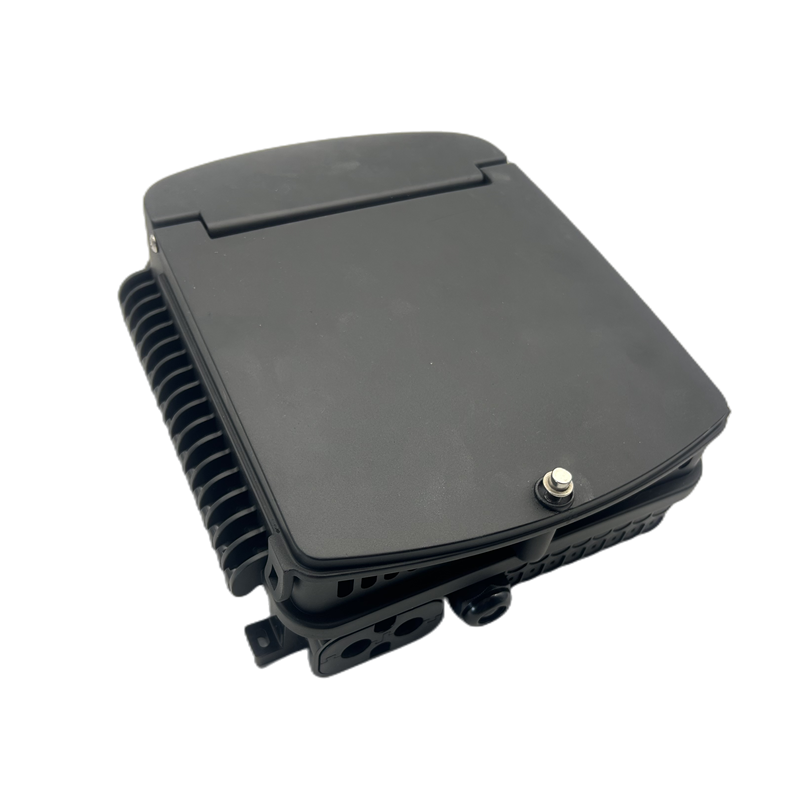

Details Images
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
PC ABS IP68 FTTH Fiber Optic Distribution Box with and Temperature Range of -40C- 85C
1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand?

Our fiber brands include: YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord, and Fiber Terminal
Box, except that, we have very good prices for part of the fiber tools!

4. How can we place order?

After we agreed on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment
(deposit) we will arrange the production and delivery. If you have your ship forwarder, we will use your ship forwarder to deliver
goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight
costs!

5. What is the quality of your product?

All of our products are of high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A: FIBCONET takes care of everything. Clients only need to collect cargo in locally or wait for cargo delivery to their
office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can
ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B: Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follows the company's instructions and finishes the shipping.

7. How can you guarantee the delivery time?

1To avoid the delay, we have built a complete and professional procedure system from production to delivery and have rich
experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product?

1. Source Guarantee. We have our long-term cooperation with raw material suppliers. All the products are ROHS certificated and
satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to the finished product, such as package, surface,
physical test, and optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested following IEC and ITU standards.
4. We have 30% spot test by Quality Assurance Department after the products are finished.

10. Why choose FIBCONET Fiber Optic to cooperate?

1. We have first-class production line and strict quality management system.
2. We have professional procedure system and big production capacity to guarantee fast delivery and on-time shipment.
3. We can provide the most competitive price to meet your budget.
4. We also design and innovate new products based on our rich experience.
5. We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be in service of you
