4A FTTH mini Termination box for fiber with Single mode & Duplex mode
4A FTTH mini Termination box for fiber with Single mode & Duplex mode
4A FTTH mini Termination box for fiber with Single mode & Duplex mode
4A FTTH mini Termination box for fiber with Single mode & Duplex mode
Specifications
Brand Name :
EVERTOP
Place of Origin :
Ningbo,China
MOQ :
50PCS
Price :
negotiate
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1000 piece/pieces per day
Delivery Time :
5-8works
Packaging Details :
1piece/box,10/20/30box/carton
color :
White
name :
4A FTTH mini Termination box for fiber with Single mode & Duplex mode
Application :
LAN
Material :
PC or ABS
End-use temperature :
-40~+85ºC
Insertion loss :
≤0.2db(1310nm & 1550nm)
Description

4A FTTH mini Termination box for fiber with Single mode & Duplex mode


Description

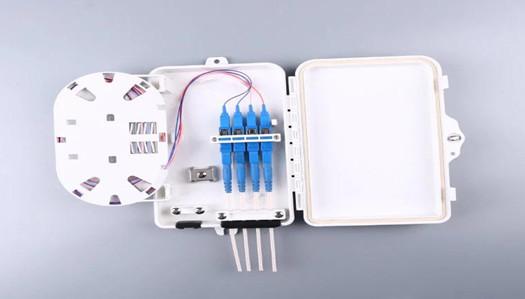

This FTTH mini fiber optic terminal box is widely used as a termination point for feeder cable to connect with drop cable. The fiber splicing ,splitting, distribution can be done in this box,and meanwhile it provides solid protection and manage-mant for FTTX network.Can be used indoor or outdoor.

Feature:

with protective door, dustproof

Applicable to the independent villa of FTTX drop cable project(Pipe cable) and wiring

hang on the poles or tube well installations,
Efficient cable management
It can be used for general outdoor wiring cable directly





Application:
Optical LAN & WAN & CATV
Testing instruments
FTTH project & FTTX Deployments
Optical Signal Distribution





Performance index:
ItemTechnical Data
Application3.0*2.0 mm drop cable or indoor cable
Fiber diameter125μm (652 & 657)
Mode of applicationSingle mode & Duplex mode
Tensile strength>50N
End-use temperature-40~+85ºC
AdaptorSC & FC
Insertion loss≤0.2db(1310nm & 1550nm)




Environmental reguirement:
Working temprature : -40ºC~+85ºC
Relative humidity : ≤85% (+30ºC)
Atmospheric pressure : 70Kpa~106Kpa




Main technical datasheet:
Insertion loss : ≤0.2db
UPC return loss : ≥50db
APC return loss : ≥60db
Life of insection and extraction : >1000 times




Thunder-proo technical datasheet:
The grounding device is isolated with the cabinet, isloation resistance is less than
2*104MΩ/500V(DC);
IR≥2*10 4 MΩ/500V(DC)
The withstand voltage between grounding device and cabinet is no less than
3000V(DC)/min, no puncture,
no flashover; U≥3000V
