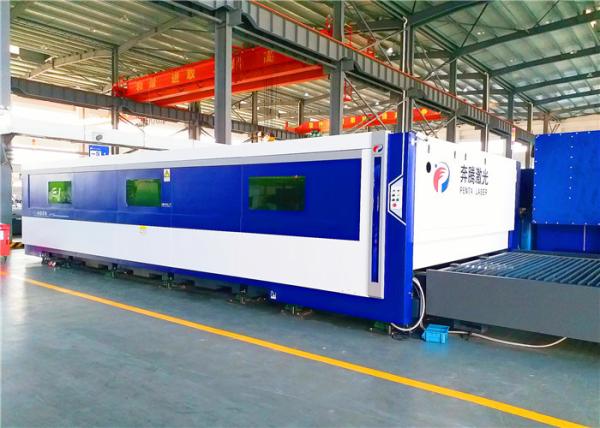

TRUMPF Disk Laser Source European Standard CNC Fiber Laser Cutting Machine

Penta high power fiber laser cutting machine is international leader and domestic initiator. The machine body's thermal processing technology, which can ensure the stability and precision.

Unique cutting database, which can realize fast piercing, high speed and thick plate cutting. For example, the cutting of stainless steel, and aluminum plates' thickness can reach 30mm.

Assemble with new version of Smart Manager 4.0 CNC software, which optimize various of piercing mode, adopt new generation of frog jump management, and move fluently without any pauses; thin materials' productivity promoted more than 25%.

Bolt is Penta's high end series for customers that demands extremely high performance and efficiency.

Features

- Double servo motor driven synchronously, bring higher speed and acceleration

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Handy embedded cutting database

- Double driving synchonous technology make sure high speed and precision cutting

- Fast pallet exchanger and full enclosure

- TRUMPF Laser Source 3kw to 6kw at your choice

- Dedicated laser CNC that makes the best and most of the laser

Technical Specification

Advantages

Stable Mainframe

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Pre-perforation System

Accomplish the pre-perforation as settled

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported Operating System Smart Manager

Samples
