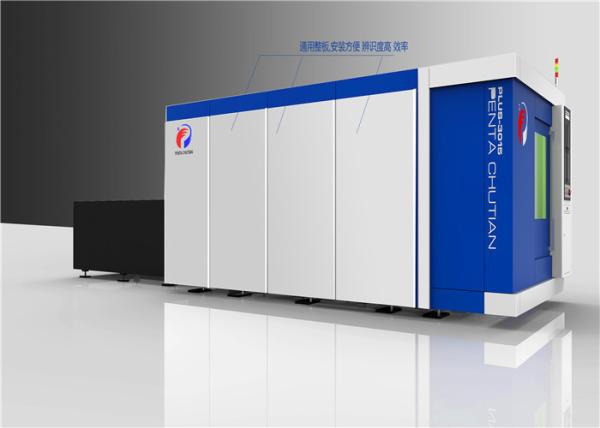

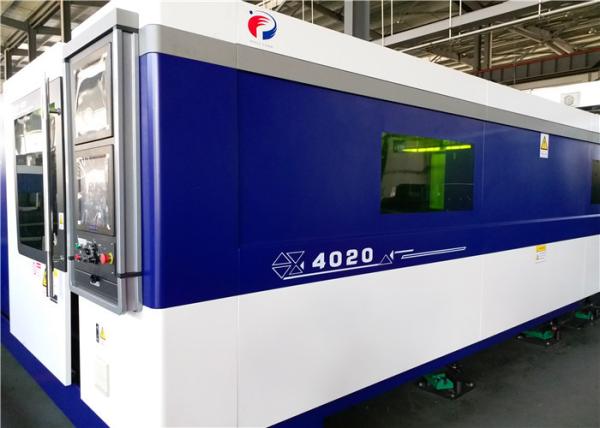

TRUMPF 3000W Italy Application Technology Sheet Metal Laser Cutting Machine

Penta Plus laser cutting machine adopt imported fiber laser source and cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.

Unique cutting database for fast piercing,high speed cutting and thick plate cutting, cutting capacity for stainless steel and aluminum is up to 50mm.Assemble with new version of Smart Manager 4.0 CNC software, which optimize various of piercing mode, adopt new generation of frog jump management, and move fluently without any pauses, Thin materials' productivity promoted more than 25%.

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Fiber Plus Model Features:

- Equiped with TRUMPF laser source from 2kw to 6kw

- Machine Frame designs with suction system and cooper plate protection

- Double servo motor driver, bring higher speed and acceleration,

- Rapid Speed:130m/min,Acceleration:2.0G

- Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

- Double driving synchonous technology make sure high speed and precision cutting

- Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

- CNC control system and operation software, Lantek Nesting software

- Fast pallet exchanger and full enclosure

- Cutting database help users choose optimal cutting parameter

- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

Advantages

Stable Mainframe

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Pre-perforation System

Accomplish the pre-perforation as settled

Technical specifications

Application

Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy ,titanium alloy , high temperature alloy ect. widely used in elevator equipment manufacturing automobile, machine tool, shipbuilding, decoration, advertisement,household appliances and laser job shop.

Samples
