Automatic Metal Sheet Laser Cutter Oil Drilling Shipbuilding 1000w to 6000w
Automatic Metal Sheet Laser Cutter Oil Drilling Shipbuilding 1000w to 6000w
Specifications
Brand Name :
Penta Laser
Model Number :
PLUS Ⅱ 4020
Place of Origin :
China
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Laser Source :
IPG / TRUMPF / NLIGHT / RAYCUS
Power :
1000W
Warranty :
1 Year
Cooling :
Water
Volatge :
380V 50Hz
Resistance :
<4Ω
Description

Automatic Metal Sheet Laser Cutter Oil Drilling Shipbuilding

Introduction

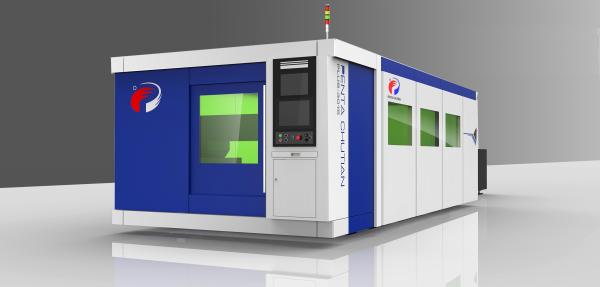

Penta PLUS Ⅱ CNC fiber laser cutting machine is a classical choice for various industries that requires high efficiency for thin metal and quality performance on medium / thick metal. It adopts gantry structure type and double-sided rack and pinion drive. It has the characteristics of stable structure, good rigidity and high speed. Cutting machine beam is cast aluminum, with a light weight dynamic response characteristics, transmission components such as gearboxes, rails and rack and pinion are imported well-known brands, the overall structure of the gantry and rack and pinion drive to ensure the equipment's high-speed, positioning, fast dynamic response and good stability. Its machine base is annealed specially for high power laser to ensure its mechanical precision and rigidity in a long run.

Features

- IPG laser source 1kw to 6kw

- Cooper plated machine base

- Double servo motor driven

- Auto-focus cutting head, smart piercing,piercing detection functions

- CNC control system and operation software

- Fast pallet exchanger and full enclosure

- Embedded professional cutting database

- Auto alignment

- Professional nesting software

Technical Specification

Model PLUS Ⅱ 4020
Rapid Speed (m/min) 130 ( acceleration 2.0G)
Accuracy (mm/m) ±0.03mm/m
Mechanical Repeatability(mm) ±0.01mm/m
Rate Output power(W) 1000 2000 3000 4000 6000
Cutting Capacity M.S: 10 M.S: 16 M.S: 20 M.S: 20 M.S: 25
S.S: 5 S.S:8 S.S:10 S.S:16 S.S:20
Table Travel(mm) 4000×2000

Application

Penta Fiber PLUS Ⅱ Series mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy, titanium alloy, high temperature alloy ect. in sheet-metal working, machine manufacturing ect. industry.
