High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed
High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed
High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed
High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed
Specifications
Brand Name :
Penta Laser
Model Number :
Bolt 3015, Bolt 4020, Bolt 6020, Bolt 4025, Bolt 6025
Place of Origin :
China
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Product Name :
High Processing Ability Metal Cutting Machine
Maximum Acceleration :
4G
Accuracy :
±0.03mm/m
Rapid Speed :
200m/min
Processing Material :
mild steel, stainless steel, aluminum alloy ,titanium alloy , high temperature alloy ect
Maximum Thickness :
50mm for Stainless Steel & 25mm for Mild Steel
Description

High Processing Ability Bolt Series Metal Laser Cutting Machine

Bolt Series is Penta's high end series for customers that demands extremely high performance and efficiency.

Features

- IPG or Trudisk laser source from 1kw to 12kw at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

Technical Specification

Model BOLT
Rapid Speed (m/min) 200 (acceleration 4G)
Accuracy (mm/m) ±0.03
Mechanical Repeatability (mm/m) ±0.01
Rate output power(W) 2000 3000 4000 6000 8000/10000/12000
Maximum cutting thickness of mild steel (mm) 16 18 20 22 25
Maximum cutting thickness of stainless steel (mm) 6-8 8-10 12 20 30
Working Table(mm) 3000×1500/4000×2000/6000×2000/6000×2500/8000×2000

Advantages

Stable Mainframe

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Efficient Control System

New Z32 real time CNC system, with dynamic and geometric JERK control. The date exchange between CNC system and machine drive system is adopted with fiber and power modulation for the ultimate cutting quality in the corners

Imported Operating System Smart Manager

Smart Manager is originally imported from Europe. This software is based on the Windows
XP system and can fully interface with Italy CNC system which original imported. Therefore the real control of the machine, the laser source and software update is more convenient and fast.

Imported nesting software function

Based on AUTO CAD/CAM automatic program nesting software and easy to use, Multilayer nesting function to intensively increase the sheet usage rate

Pre-perforation System

Accomplish the pre-perforation as settled

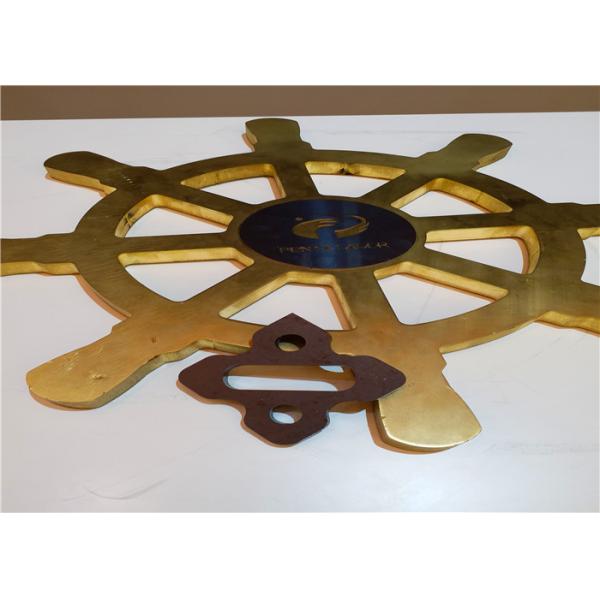

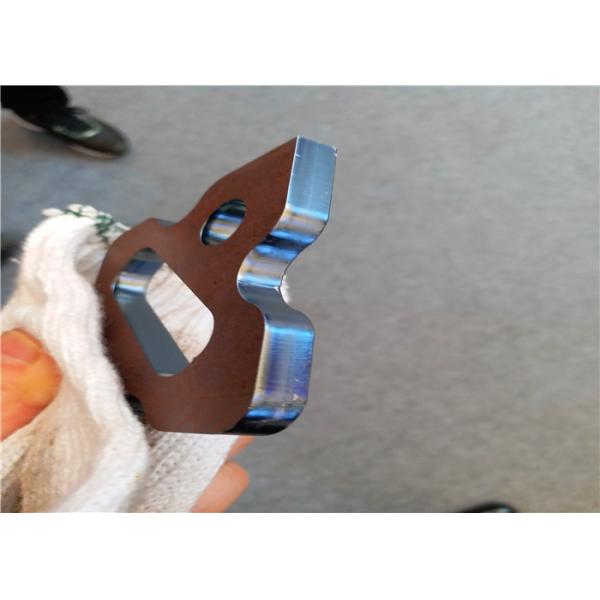

Samples

High Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid SpeedHigh Processing Ability Metal Laser Cutting Machine For Bolt Series , 200m/min Rapid Speed
