Specifications
Brand Name :
Penta Laser
Model Number :
SWING 3015
Place of Origin :
China
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
MOQ :
1 set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Name :
SWING CNC Fiber Laser Cutting Machine (Gantry structure)
Power :
1500W
Laser Source :
IPG TRUMPF RAYCUS
Cutting Thickness :
Mild Steel 14mm Stainless steel 6mm
Cooling :
Water
Voltage :
380V 50Hz
Description

Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting

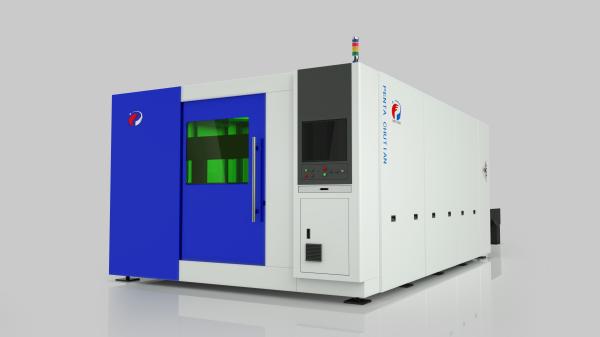

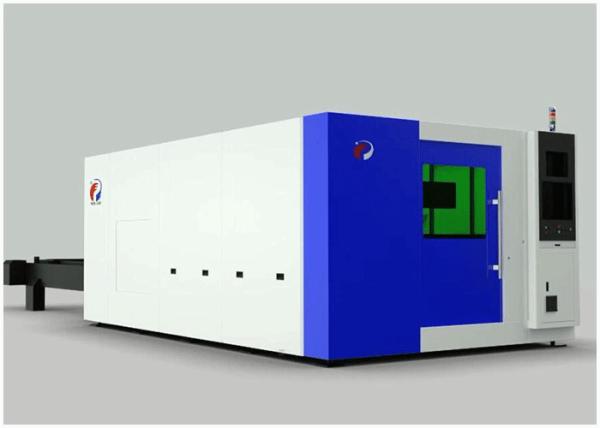

Introduction

Penta SWING Series fiber laser machine is an economic option to the market for its efficiency and stability at an affordable cost; it’s an idea choice for sheet metal owners for its low operational cost and production flexibility compare to conventional processing methods. Though an entry level machine, it’s powered by the same professional laser CNC as with our high power laser machines, easy for laser beginners to learn and various handy and practical functions for advanced users.

Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting

Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting

Features

- 1KW-3KW IPG / TRUMPF / RAYCUS laser source at choice

- Full enclosure for operator’s safety

- Gantry structure, double servo motor driven for high speed and acceleration

- Fast pallet exchanger

- Embedded professional cutting database

- Dimension:3m*1.5m/4m*2m/6m*2m/

- Professional nesting software

Specification

Model SWING 3015
Table Travel 3000mm X 1500mm
Rapid Speed 120m/min
Acceleration 1.1G
Mechanical Accuracy + 0.05mm/m
Repeatability + 0.03mm/m
Power Range 1000W 2000W 3000W
Cutting Capacity

M.S: 10mm

S.S: 4-5mm

M.S: 18mm

S.S: 8mm

M.S: 20mm

S.S: 10mm
Working Table Automatic Pallet Exchanger

Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting

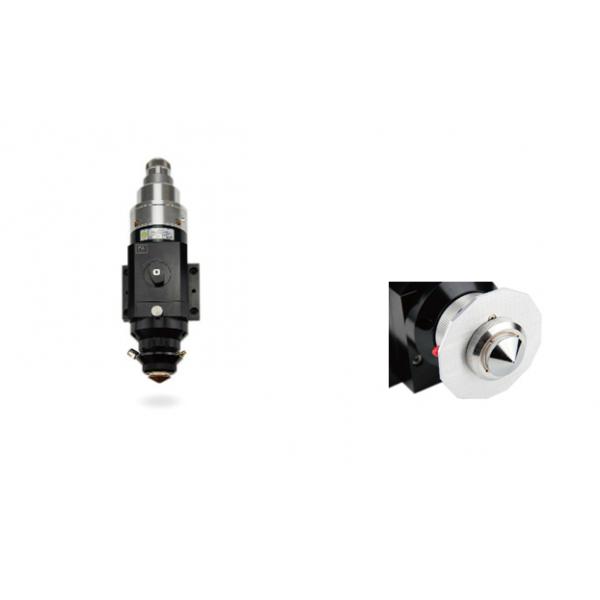

Standard Cutting Head

Cutting head from RAYTOOLS, Switzerland is a simple, yet flexible design to optimize the processing head to the end user’s Fiber Laser. The head is capable of cutting a wide range of materials and delivers both user-friendly operation and reliable performance at an attractive price.

§ Optimization of flexible optical configuration and smooth and efficient air flow design can choose different clear aperture lens;

§ Focus adjusted, scope for 16 mm;

§ Draw-out lens seat, which is easy and simple to protect the lens and replacement;

§ Smooth assist gas flow;

§ Compact, lightweight design;

§ Models available for most popular fiber connections;

§ Double water cooling structure design.

Cutting head adopts flexible design, competent of collision-proof and high-reflective plate cutting, which automatically stops cutting and flexibly diverges and resets when accidental collision occurs, meanwhile with nozzle fitting built-in annular conditioning and side structure, can also has thick plate explosion-proof control sputter function, making the whole cutting process free from effect.

Moderately Thin Sheet Fiber Laser Cutter IPG TRUMPF RAYCUS Cabinet Article Laser Cutting

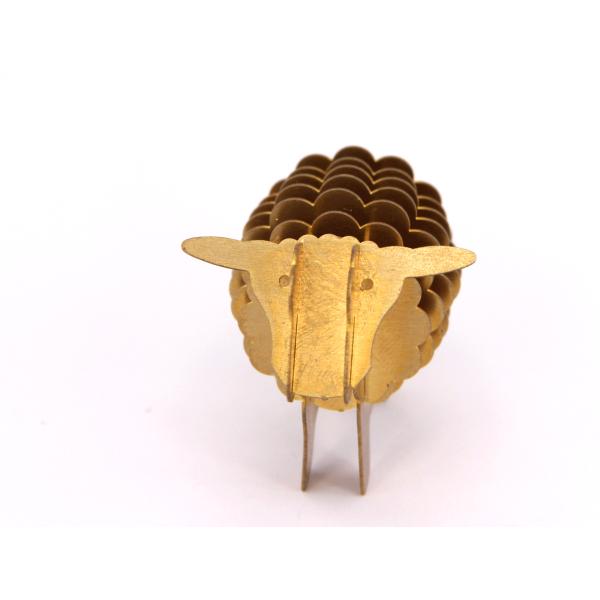

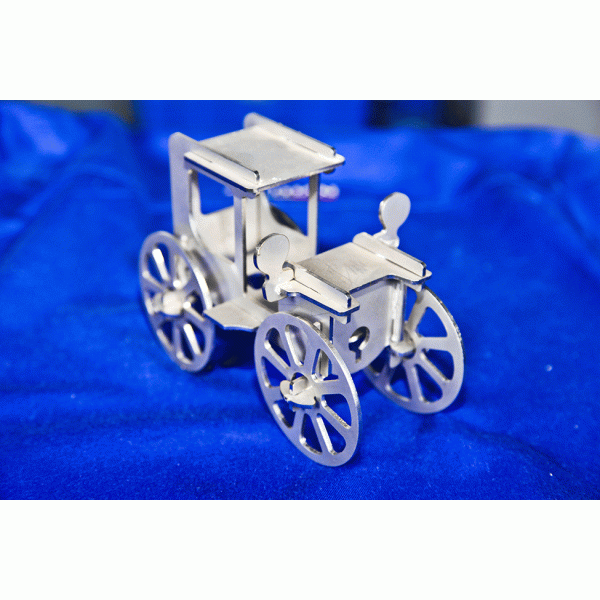

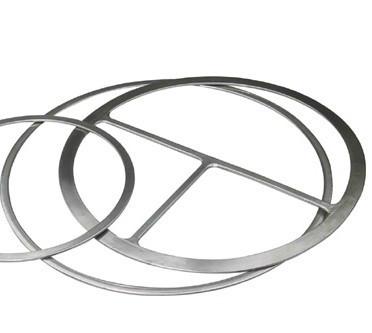

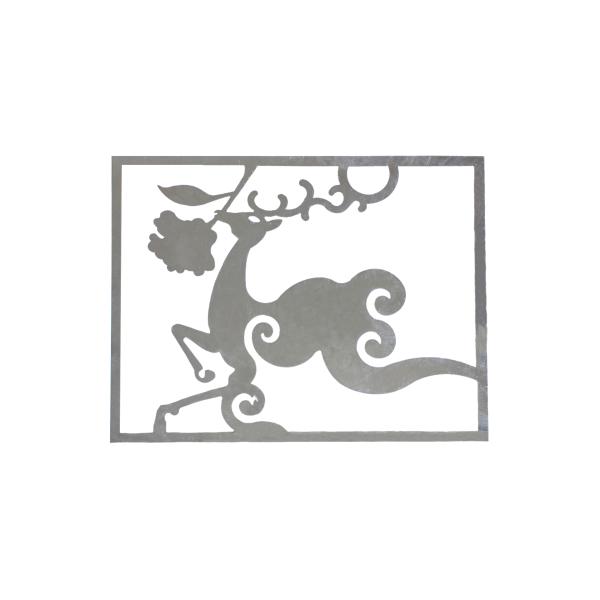

Application

Mainly for cutting metallic material such as mild steel, stainless steel, aluminum alloy, titanium alloy, high temperature alloy ect.
