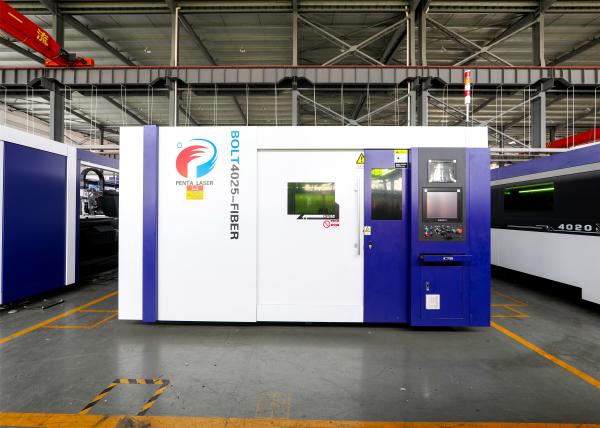

IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W
IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W
Specifications
Brand Name :
Penta Laser
Model Number :
BOLT 4025
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
2000 Sets per Year
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
Name :
BOLT CNC Fiber Laser Cutting Machine
Power :
2000W
Laser Source :
IPG Fiber Laser
Cutting Head :
Originally Imported
Linear Guide :
BOSCH Germany
Servo Motor :
YASKAWA Japan
Description

2000W Fiber Laser Cutting For Metal Cutting Industry

Features

- IPG/RAYCUS Laser Source from 2000W at your choice

- Double servo motor driven synchronously, bring higher speed and acceleration

- Fast pallet exchanger and full enclosure

- Handy embedded cutting database

- Double driving synchonous technology make sure high speed and precision cutting

- Auto Focus Cutting Head dedicated for high power (Precitec)

- Dedicated laser CNC that makes the best and most of the laser

Technical Specification

Model BOLT 4025
Rate output power 2000 W
Rapid Speed 200 m/min
Maximum Acceleration 2.2 G
Accuracy ±0.03 mm/m
Mechanical Repeatability ±0.01 mm/m
Maximum cutting thickness of mild steel 16mm
Maximum cutting thickness of stainless steel 8mm
Working Table 4000 mm ×2500 mm

Advantages

Assemble with new version of Smart Manager CNC software, which optimize various of piercing mode, adopt new generation of frog jump management, and move fluently without any pauses; Thin materials' productivity promoted more than 25%.

About PENTA LASER

PENTA LASER as a subsidiary of El.En Group Italy, brings in advanced Italian laser application technology,developed the most high efficiency and high power fiber laser cutting machine, become the leader brand of domestic.

As the development of PENTA LASER, now we have twomanufacturing base- Wenzhou and Wuhan,36 technical service centre and 5 overseas service centre.

IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W

The Bolt is the top speed fiber laser cutting machine of all series, the unique design innovation make sure the processing efficiency of Bolt;

Equipped with smart cutting head original imported from Europe

Pallet exchange at the same time within 20 sec.

Lower working table for loading and unloading process

High speed movement and quick startup and shutdown

IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W

Wuhan Workshop

IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W

Wenzhou Workshop

IPG CNC Fiber Laser Cutting Machine For Metal Cutting Industry 2000W
