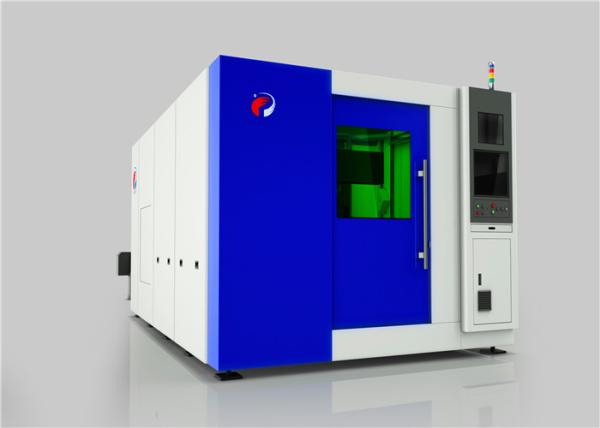

Horizontal Industrial Laser Cutters For Stainless Steel / Aluminum Alloy , Gantry Structure
Horizontal Industrial Laser Cutters For Stainless Steel / Aluminum Alloy , Gantry Structure
Specifications
Brand Name :
Penta Laser
Model Number :
SWING 6020
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
Name :
SWING CNC Fiber Laser Cutting Machine
Power :
4000W
Cutting Material :
Mild Stainless Stainless Steel Aluminum Alloy
Structure :
Gantry
Cooling :
Water
Servo Motor and Drivers :
YASKAWA Japan
Description

Gantry Structure Laser Stainless Steel Cutting Machine CNC Fiber Cutter

Penta SWING Series adopt europian techlogy and be assembled in China with high quality. Right now Penta laser's product are renowned for its stability, reliability, and fast-response service as well. We have service and training centers in 35 major Chinese cities and more than 10 countries all over the world. Lots of successful cases indicate that laser application can create high economic benefit and social benefit to users.

Fiber Plus Model Features:

-Equiped with IPG laser source from 1kw to 4kw

-Machine Frame designs with suction system and cooper plate protection

-Double servo motor driver, bring higher speed and acceleration,

-Rapid Speed:120m/min,Acceleration:1.1G

-Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

-Double driving synchonous technology make sure high speed and precision cutting

-Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

-CNC control system and operation software, Lantek Nesting software

-Fast pallet exchanger and full enclosure

-Cutting database help users choose optimal cutting parameter

-Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

Technical specifications

Model SWING 6020
Power 4000W
Rapid Speed 120m/min
Maximum Acceleration 1.1G
VDI 3441 Accuracy ±0.03mm/m
Mechanical Repeatability ±0.01mm/m
Maximum Thickness Mild Steel 20mm
Maximum Thickness Stainless Steel 16mm
Table Travel 6000mm × 2000mm

Range of Application

High speed cutting solution for sheet metal industry including kitchenware, stainless steel decoration,cabinet, etc.

Sample

Horizontal Industrial Laser Cutters For Stainless Steel / Aluminum Alloy , Gantry Structure
