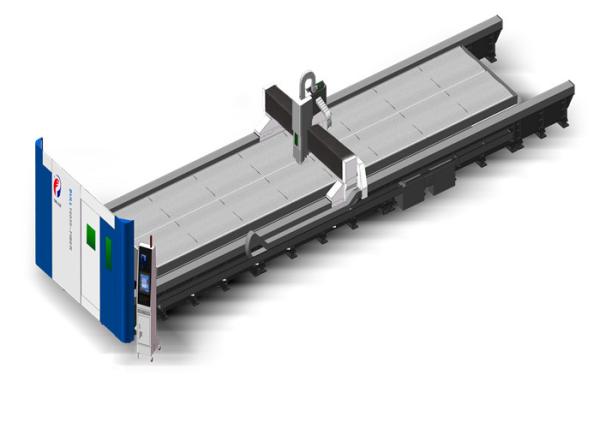

High Precision CNC Machine Laser Cutter For Metal Sheet Cutting , 3000 Watt
High Precision CNC Machine Laser Cutter For Metal Sheet Cutting , 3000 Watt
Specifications
Brand Name :
Penta Laser
Model Number :
BULL 16035
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
Name :
BULL CNC Fiber Laser Cutting Machine
Power :
3000W
Laser Source :
IPG,TRUMP Fiber Laser Source
Cutting Head :
Precitec Cutting Head
Cooling :
Water
Travel Table :
16000mm*3500mm
Description

Large Format High Stable Metal Sheet CNC Laser Cutting Machine

Penta BULL Series fiber laser cutting machine have advantage of power saving, lower power consumption which is just 20%-30% compared to backpack CO2 Laser Cutting Machine.

Fast moving, adopt imported CNC and control software, YASKAWA servo motor which is more simple and convenient for operation.

Fast cutting, adopt imported intelligent cutting head and some other high-level system to guarantee the stability and advancement.

Fast piercing and the production efficiency is promoted more than 50%.

Lower running and maintenance cost
Environmental protection, acquire laser protection function and suction system which guarantee operator's health and safty
Gantry design with double drive structure, high damping machine tool with better rigidity which can stand higher speed and acceleration speed.
The rack and guide is comprehensively sealed to prevent the friction without oil and dust pollution in order to make the drive system much longer service time and ensure the movement precision of the machine tool.

Specification

Model BULL 16035
Laser Power 3000W
Rapid Speed 70m/min
Maximum Acceleration 0.6G
Mechanical Repeatability ±0.12mm
Mechanical Accuracy (VDI 3441) ±0.1mm/m
Mild Steel 20mm
Stainless Steel 10mm
Table Travel 16000mm × 3500mm

Application

Penta BULL series Fiber Laser Cutting Machine mainly for cutting metallic material such as mild steel, stainless steel, aluminum alloy, titanium alloy, high temperature alloy ect. for sheet metal processing, aviation, aerospace, electronics, electrical appliances, tube fittings, automobile, food machinery, engineering machinery, precision parts, shipbuilding, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising and other manufacturing industries.
