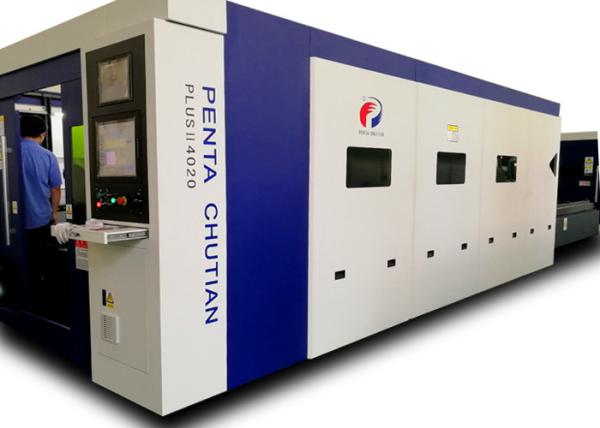

Aerospace Mechanical Fiber Optic Laser Cutter 2000W 50Hz 1005Kg Loading Ability
Aerospace Mechanical Fiber Optic Laser Cutter 2000W 50Hz 1005Kg Loading Ability
Specifications
Brand Name :
Penta Laser
Model Number :
PLUS 4020
Place of Origin :
China
MOQ :
1 Set
Price :
Negotiable
Supply Ability :
2000 Sets per Year
Delivery Time :
50 Days Upon Receipt of Payment
Packaging Details :
Standard Wooden Package for Sea Transportation
Name :
FIBER PLUS CNC Fiber Laser Cutting Machine
Power :
2000W
Cooling :
Water
Voltage :
380V 50Hz
Control System :
Z32 CNC System
Loading Ability :
Average 1005Kg
Description

Aerospace Mechanical Metal Processing Fiber Laser Cutting Machine Stainless Steel Mild Steel

Penta Plus laser cutting machine adopt imported fiber laser source and cutting head, New Z32 real time CNC system with dynamic and geometric JERK control.

New Z32 real time CNC system, with dynamic and geometric JERK control Remote assistance. Power modulation for the ultimate cutting quality in the corners Z axis following. Automatically choosing gas type and pressure(N2,O2,Air). Auto restart procedure.

The base consists of foundation, working table, beam,slider, ram, cooling system,pneumatic system,
suction system,dross cleaner, enclosure and so on.

Fiber Plus Model Features:

- Equiped with IPG laser source from 1kw to 12kw

- Double servo motor driver, bring higher speed and acceleration,

- Rapid Speed:120m/min,Acceleration:1.7G

- Imported movement parts:Rack & Pinion,Servo Motor,Linear Guide etc

- Double driving synchonous technology make sure high speed and precision cutting

- Machine Frame designs with suction system and cooper plate protection

- Automatic Focus Cutting Head with auto focus, smart piercing, piercing detection functions

- CNC control system and operation software, Lantek Nesting software

- Fast pallet exchanger and full enclosure

- Cutting database help users choose optimal cutting parameter

- Dimension:3m*1.5m, 4m*2m, 6m*2m, 6m*2.5m, 8m*2m available

Technical specifications

Model PLUS 4020
Power 2000W
Rapid Speed 120m/min
Maximum Acceleration 1.7G
VDI 3441 Accuracy ±0.03mm/m
Mechanical Repeatability ±0.01mm/m
Maximum Thickness Mild Steel 16mm
Maximum Thickness Stainless Steel 8mm
Table Travel 4000mm × 2000mm

Application

Mainly for cutting metallic material such as mild steel, stainless steel, aluminum
alloy ,titanium alloy , high temperature alloy ect. Widely used in textile machinery, oil drilling equipment, kitchenware, household appliances and laser job shop.
