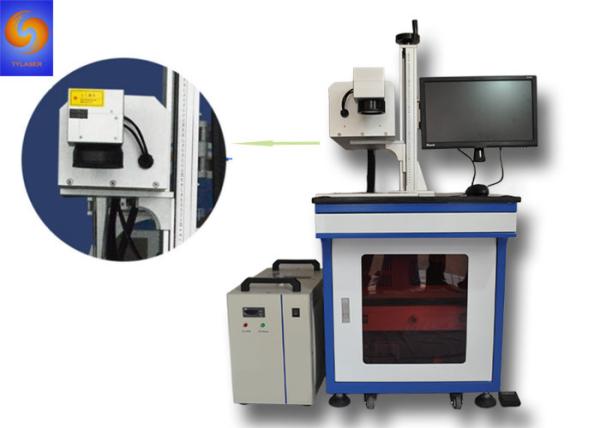

High Speed 3D UV Laser Marking And Engraving Machine For Glasses / Ceramics Cup
High Speed 3D UV Laser Marking And Engraving Machine For Glasses / Ceramics Cup
Specifications
Brand Name :
TY Laser
Model Number :
MH-UV10,MH-UV5
Place of Origin :
Hubei China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Western Union, MoneyGram, L/C, T/T
Supply Ability :
100 sets per month
Delivery Time :
5-8 working days
Packaging Details :
Standard Oversea Shipping Package
Application :
Laser Marking
Control Software :
EZCAD Software
Laser Type :
UV Laser
Wavelength :
355nm
Marking Speed :
≤12000mm/s
Marking Scope :
110*110MM ,145*145MM
Power Supply :
AC220V/50Hz
Working Accuary :
0.002mm
Description

Stable Preformace High Speed 3D UV Laser Marking and

Engraving Machine for Glasses/Ceramics Cup

Product Description

UV laser is cold light source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.
Product Feature

1. Adopting doubling technique of intracavity frequency has greatly improve the stability of laser.
Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.


2. The machine takes 355nm pumped purple light laser device as the light source.Narrower pulse width and smaller heat affection contribute to generate peak power.


3.Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.


4. High efficiency of the photoelectric conversion and long service life.


5. Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.


6. It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.


7. It can mark date, bar code and two-dimension code automatically.


8. Superior performance, good stability, high conversion rate and low energy consumption.

Application

1.Mark on coated silicon solar panel, Remove the surface film on object:


2.Mark on mobile protection film, LCD screen , optic device, automobile glass etc.,


3.Also suitable for most of metal and non-metal material marking or coated surface marking, ie, hardware, ceramic, glasses, clock ,PC, electronic device, PCB and control panel, nameplate and plastic material etc.

Technical Parameters
odel
MH-UV10, MH-UV5
Laser Power
10W,5W
Wavelength
355nm
Frequency
1-100KHz
Marking Scope
110x110mm; 145x145mm (Optional)
Marking Speed
12000mm/s
Minimum line width
0.01mm
Minimum Character
0.1mm
Repeat Accuracy
0.002mm
Cooling Method
Air Cooling for 3W/5W; Water Cooling for 10W
Power Supply
AC220V/50Hz
Keywords
UV laser marking machine
Applicable material
Almost all material's marking, especially outstanding performance for plastic.
