Specifications
Brand Name :
tylaser
Model Number :
MH-C10/MH-C30/MH-C60/MH-C100
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
$4950-19200/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 working days
Packaging Details :
The machine for sale is to be standard packing suitable for long distance (ocean/air) transportation in new strong wooden cases and well protected against dampness, moisture, shock, rust and rough handling.
Type :
MH-C10/30/60/100
Laser Medium :
CO2
Laser Device :
SYNRAD/China Brand
Average Output Power :
10/30/60/100W
Laser repetition rate :
1-50KHz
Optional Marking Scope :
110*110mm |145*145mm | 200mm*200mm
Maximum Marking Speed :
12000mm/s
Maximum Line Width :
0.02mm
Minimum Character Height :
0.2mm
Repeated accuracy :
0.002mm
Marking Depth :
0.01—0.5mm
Consumption of Electricity :
800W/AC220V/50Hz
Cooling Method :
Air Cooling
Description

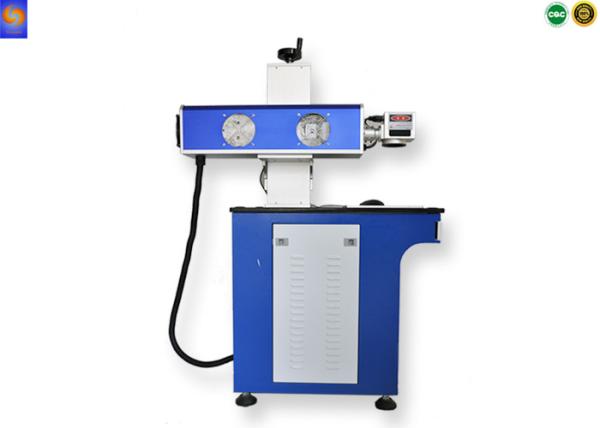

CO2 Galvo Laser Marking Machine for Leather/Hide/Cloth/Wood/Acrylic/Denim

Feature:

1. High efficiency:
laser has benefited from the advantages of technological innovation, and continuously improve the efficiency of the laser marking system.
2. Low maintenance:
Using high quality components in laser industry, simple using& maintenance, 24hours no fault operation.
3. Easy operation:
Our laser Equipments can working automatically with the control of computer.After a simple training, everyone can operation it freely.
4. Environmental protection:
Laser marking is processed in non mechanical "knife", does not have the corrosion to the work surface, no "tool" wear, no poison, no pollution.
5. Complete technology supporting:
We can according to customer requirements, order whole marking systems mark in any rules or irregular surface, any material on the workpiece. And the workpiece does not produce the internal stress, and maintain the original accuracy

Technical Parameters

Model MH-C10; MH-C30; MH-C60; MH-C100
Laser Power 10W; 30W; 60W; 100W
Wavelength 10.640um
Frequency 1-50KHz
Marking Scope 110x110mm; 145x145mm; 200x200mm (Optional)
Marking Depth 0.01-0.3mm; 0.01-0.5mm
Marking Speed 12000mm/s
Minimum line width 0.02mm
Minimum Character 0.2mm
Repeat Accuracy 0.002mm
Cooling Method Air Cooling; Water Cooling
Power Supply AC220V/50Hz
Consumption of Electricity 800W; 1000W

Suitable materials and application:

Arts and crafts, furniture, leather and costume, advertising label, model making, food packaging,

electronic components, medicine packaging, printing plate making, shell label, etc.

Suitable materials:

Bamboo and wood products, papers, fabric, leather, organic glass, epoxy resin, acrylic,

polyester resin.

Samples

Galvo CO2 Laser Marking Machine 10/30/60/100 Watt For Leather / Hide / Cloth

Co2 laser marking machine have a limited range in making materials, which can only mark on non-metal materials, such as wood acrylic glass. If you need to mark on metal materials, we'd recommend you to our fiber marking machines.
Packaging & Shipping

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard. We can send machine to your port or door address by sea.

Our Services

Pre- sale Service:

1. Inquiry and consulting support

2. Sample testing support

3. View our factory

After-Sale Service:

1. Training how to install and how to use the machine

2. We offer 1 Year warranty for whole machine (except artificial)

3. 24 hour technical support online like Skype, you can calling us if urgent

4. We offer free training in our factory, and our engineers available to service machinery overseas if needed
