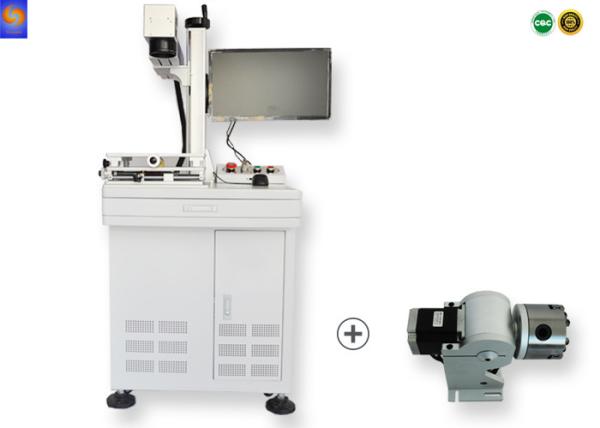

Color Mopa Laser Marking Machine Air Cooling For Stainless Steel Hardware
Color Mopa Laser Marking Machine Air Cooling For Stainless Steel Hardware
Specifications
Brand Name :
tylaser
Model Number :
MH-MP20/30
Place of Origin :
Hubei, China
MOQ :
1 set
Price :
$7500-7800/set
Payment Terms :
T/T, Western Union, MoneyGram, Paypal, L/C
Supply Ability :
100 sets per month
Delivery Time :
7 working days
Packaging Details :
Standard packing suitable for long distance (ocean/air) transportation in new strong wooden cases
Working Accuracy: :
0.002mm
Graphic Format Supported: :
AI, BMP, DXF, DXP, PLT
Cooling Mode: :
Air Cooling
CNC or Not: :
Yes
Condition: :
New
Laser wavelength :
1064nm
Laser Power :
20/30W
Marking Speed :
≤12000mm/s
Marking Depth :
0.01-0.3mm
Working Area :
110*110/145*145/200*200mm
Laser Source :
JPT
Control Software :
EZCAD
Power supply: :
AC220V/50Hz
Laser type :
Mopa Fiber
Description
Product Description
20W 30W Color Mopa fiber laser mark machine For Stainless Steel hardware

Fiber laser marking machine is of good quality output beam, high reliability.It can be carved both on metal material and some non-metal material, mainly marked in areas for smoothness,finesse demanding.
1. Many type of metals: Gold,copper,aluminum,stainless steel,chrome Brass,etc
2. Alloy and metal oxides
3. Some non-metallic materials:siliconwafer,ceramics,plastic,rubber,epoxy resin,ABS,Printing ink,Plating,Spraying,Coating film and special surface treatment plastic.

Color Mopa Laser Marking engraving:

If you need to mark color , machine configuration with be smilliar with normal machine , just need to change fiber generator . Our company use JPT mopa.

Feature:

1. Wide range: Can be used on many materials like metal, plastic. Can be used in many industries like Jewelry engraving, Medical devices, Phone case engraving, Hardware industry, stainless steel tableware, electron components marking etc.
2. Permanent marking: Laser marking is a permanent marking. It won’t fade, run or become less discernable as time passes like traditional marking including ink jet, hand engraving, dot-peen marking.
3. Long service time: Fiber laser model has a over 100,000 hours working life. Almost no maintenance during this period.
4. Non-contact process: Won’t cause mechanical extrusion or mechanical stress to materials. Laser beam won’t move the work piece.
5. Portable: Small footprint, easy to move and transportation. Size like a computer case.
6. Environmentally friendly: Using no harsh chemicals during the process. No need water chiller to cool, small size small occupation, can be easily installed in many places.
7. High quality: CE approved, imported core spare parts like German IPG fiber laser.
8. Machine with protective cover . protect user and other person eyes .

Technical Parameters

Technical Parameters
Type MH-MP20 MH-MP30
Laser Medium Optical Fiber
Laser Device JPT/Raycus/IPG
Laser Wavelength 1064 nm
Average Output Power ≤20W ≤30W
Beam Quality <1.5M <1.6M
Laser repetition rate 1-2000KHz
Standard Marking Scope 110*110mm
Optional Marking Scope 110*110mm |145*145mm | 200mm*200mm
Maximum Marking Speed 12000mm/s
Maximum Line Width 0.02mm
Minimum Character Height 0.15mm
Repeated accuracy 0.002mm
Marking Depth 0.01—0.3mm
Consumption of Electricity 800W/AC220V/50Hz
Cooling Method Air Cooling

The laser can adjust the pulse width within a certain range, and can maintain a stable high peak power output
2. The model can be used, can do ordinary marking, but also do special industry marking (anodized aluminum, stainless steel hit color)

Packaging & Shipping

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard. We can send machine to your port or door address by sea.

Our Services

Pre- sale Service:

1. Inquiry and consulting support

2. Sample testing support

3. View our factory

After-Sale Service:

1. Training how to install and how to use the machine

2. We offer 1 Year warranty for whole machine (except artificial)

3. 24 hour technical support online like Skype, you can calling us if urgent

4. We offer free training in our factory, and our engineers available to service machinery overseas if needed
