JPT Fiber Laser Source Laser Spare Parts 20w For MOPA Laser Marking Machine
JPT Fiber Laser Source Laser Spare Parts 20w For MOPA Laser Marking Machine
Specifications
Brand Name :
JPT
Model Number :
YDFLP-20-M6+-S
Place of Origin :
Shenzhen, China
MOQ :
1 set
Packaging Details :
carton box
Wavelength :
1064nm/10.6um
Application :
Marking/Engraving/Cutting
Lifetime :
100,000 hours
Laser type :
fiber laser
Warranty :
2 Years
Laser Power :
20W / 30W
Description

For MOPA Laser Marking Machine Shenzhen JPT fiber laser source 20w

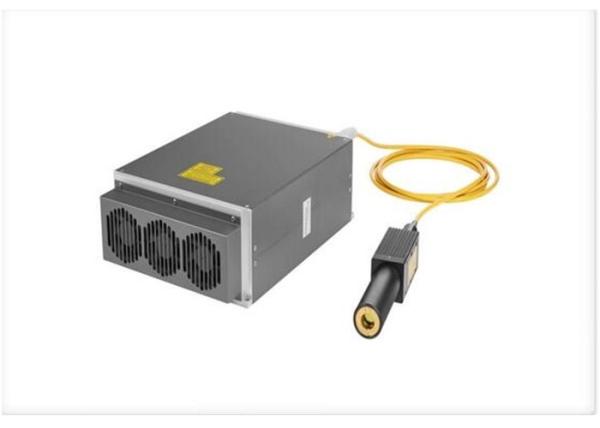

Description of JPT Laser Source

M6+ series MOPa pulsed fiber laser is a brand new design product. In addition to the advantages of M1+ series, M6+ has broader pulse width, higher response speed and first pulse usability. It provides a best choice of fiber laser for highest industrial standards marking and other applications. JPT has complete& strict performance and reliability inspection for every M6+, to guarantee high quality and reliability.

Application Advantages

1ns~250ns

1ns-250ns wide adjustable pulse width, wider application range of material.

Wide repetition rate for diverse application.

Excellent beam quality, excellent processing performance.

First pulse availability and quicker pulse response speed, good choice for highly precise & fine marking.

No light leaking, safe marking.

Parameters

Laser Type Unit MOPA
Product model YDFLP-20-M6+-S YDFLP-30-M6+-L1 YDFLP-30-M6+-S
m² <1.3 <1.8 <1.3
Delivery Cable Length m 2
Nominal Average Output Power W >20 >30 >30
Maximum Pulse Energy mJ 0.5 0.9 0.5
Full Power Repetition Rate Range kHz 40-2000 31-2000 60-2000
Pulse Repetition Rate Range kHz 1-2000
Pulse duration ns 1-250 2-250 2-250
Longtime Average Power Stability % <5
Cooling Method Air Cooling
Supply DC voltage(VDC) V 24
Current Consumption A <8 <10 <10
Current Supply Consumption A >8 >10 >10
Power Consumption@20°C W <120 <150 <150
Centra| Emiss| on Wavelength nm 1064
Emission bandwidth@3dB nm <15
Polarization Random
Anti- Reflection Protection YES
Output Beam Diameter mm 7 6 7
Output Power Tuning Range % 0-100
Operation Temperature °C 0-40
Storage Temperature °C -10～60
Weight KG Net weight 8; Gross weight 9.75
Size mm 315x220x99

FAQ

Why choose your company?

We’re professional laser marking machines manufacturer. We’re more familiar with customer’s marking or engraving application so we’re in a position to recommend a more suitable model to customers.

What’s MOQ?

One piece. You can mix it with other laser machine parts freely.

What’s delivery time?

Within 5 working days after receive payment.

What’s your payment terms?

T/T, western union
