Portable 3D Fiber Laser Marking Machine , 3D Metal Engraving Machine 20W/30W/50W
Portable 3D Fiber Laser Marking Machine , 3D Metal Engraving Machine 20W/30W/50W
Specifications
Brand Name :
tylaser
Model Number :
MH-F20/30/50S
Place of Origin :
Hubei, China (Mainland)
MOQ :
1 Set
Price :
$3,950-9,900 / Set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
Delivery Time :
7 working days
Packaging Details :
The machine for sale is to be standard packing suitable for long distance (ocean/air) transportation in new strong wooden cases and well protected against dampness, moisture, shock, rust and rough handling.
Application: :
Laser Marking
Condition: :
New
Laser Type: :
Fiber Laser
CNC or Not: :
Yes
Cooling Mode: :
Air Cooling
Control Software: :
Ez-Cad, EZCAD
Graphic Format Supported: :
AI, BMP, DXF, PLT
Working Accuracy: :
0.002mm
Laser wavelength: :
1064nm
Laser Power: :
20/30/50W
Marking Speed: :
≤12000mm/s
Marking Depth: :
0.01-0.5mm
Working Area: :
110X110MM, 145X145MM, 200X200MM
Laser Source: :
Raycus/ IPG
Description

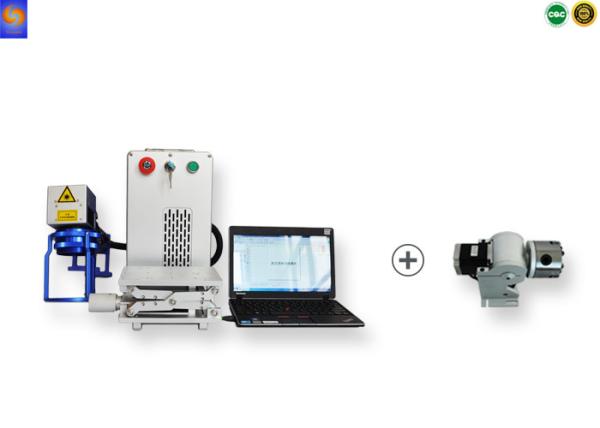

20W/30W/50W Portable Handheld Laser Marking Machine / Fiber Laser Engraver

Advantage

1. Compact ,mini type .Handy, maintenance-free;
2. 10W/20W/30W Raycus fiber laser/IPG laser, excellent beam quality, high stability ;
3. SINO-GALVO Brand high speed digital scanner, high precision ;
4. User-friendly interface programme, multi-function;
5. Double red pointer positioning system;
6. Qualified integrated units insure reliability of the whole system .


Feature

1. Fiber Laser Marking machine with pre-loaded legitimate computer operating systems, broke away from the shortcomings of traditional marking machine which need equipped with extra computer, you just do some simple steps and Mini Fiber Laser Marking machine will enter work mode.

2. Fiber Laser Marking machine made from Germany aluminum alloy material imported from Germany, with fabricating processes and 52 manual assembly processes, you will cannot help liking it.

3. Fiber Laser Marking machine has small and compact structure installed with the computer system, the laser control system, the motion control system and humanized design. Above all the installment is convenient.

Technical Parameters

Type MH-F20S MH-F30S MH-F50S
Laser Medium Optical Fiber
Laser Device JPT/Raycus/IPG
Laser Wavelength 1064 nm
Average Output Power ≤20W ≤30W ≤50W
Beam Quality <1.5M <1.6M <1.7M
Laser repetition rate 20-100KHz
Standard Marking Scope 110*110mm
Optional Marking Scope 110*110mm |145*145mm | 200mm*200mm
Maximum Marking Speed 12000mm/s
Maximum Line Width 0.01mm
Minimum Character Height 0.15mm 0.2mm
Repeated accuracy 0.002mm
Marking Depth 0.01—0.3mm 0.01—0.5mm
Consumption of Electricity 800W/AC220V/50Hz 1000W/AC220V/50Hz
Cooling Method Air Cooling

Applicable material samples
It can mark all kinds of metal materials and some non-metallic materials,industrial plastic,electroplates,metal-coated
materials, rubbers, ceramics,mobile button,plastic transparent button. Electronic parts,IC,tools,communication products.
Bathing products,tool accessories ,glasses and watches,jewelry,button decoration for boxes and bags, cookers,stainless steel products and so on.

Package

1- Wood case or as per required.

2- The delivery lead time would be 7-15 days against down payment.

3- As for the wholsalers/distributors,we could send the cargo by air, by sea or by railways via reliable forwarder

4- Please Email or skype me for more details of this model:andywu(at)linxuanlaser.com

Service

♦ Two years quality guaranty, the machine with main parts shall be changed free of charge when if any problem during the warranty period.
♦ Life time maintenance free of charge.
♦ Free training course at our plant.
♦ 24 hours on line service each day, free technical support.
♦ Machine has been adjusted before delivery.
