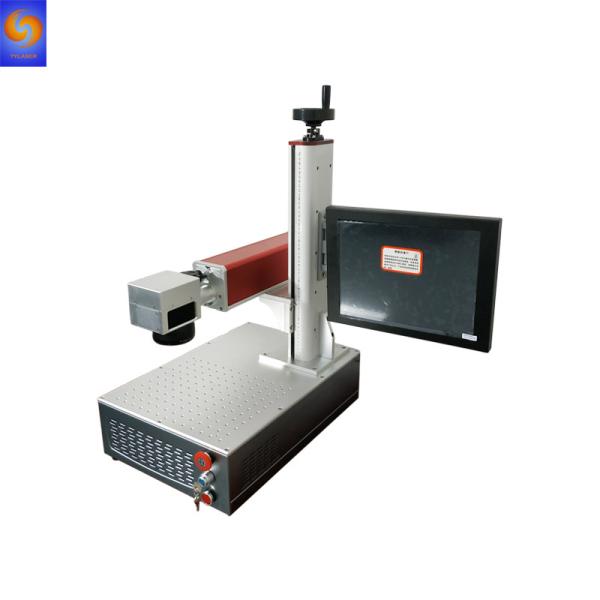

2 years warranty JPT RAYCUS IPG 20W 30W 50W Color Mini portable Fiber Laser Marking Machine
2 years warranty JPT RAYCUS IPG 20W 30W 50W Color Mini portable Fiber Laser Marking Machine
Specifications
Brand Name :
tylaser
Model Number :
MH-F20/MH-F30/MH-F50
Place of Origin :
Hubei Province, China
MOQ :
1 set
Price :
$3900-$9400/set
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
7 working days
Packaging Details :
The machine for sale is to be standard packing suitable for long distance (ocean/air) transportation in new strong wooden cases and well protected against dampness, moisture, shock, rust and rough handling.
Working Accuracy :
0.002mm
Graphic Format :
AI, BMP, DXF, PLT
Control Software: :
Ez-Cad
Condition: :
New
Laser Power :
20W/30w/50w
Marking Speed :
≤12000mm/s
Laser Type :
Fiber Laser
Working Area :
110X110MM, 145X145MM, 200X200MM
Laser Source :
Raycus/ IPG
Description

2 years warranty JPT RAYCUS IPG 20W 30W 50W Color Mini portable Fiber Laser Marking Machine

MH-F20M Portable mini laser marker 10W 20W 30W 50W fiber laser markingmachine low price can achieve your desired results with no problem.
MH-F20M can still be integrate into your assembly line by simply detaching the side doors, and our engineers will help you with all the installation process, make sure MH-F20M fits in perfectly.

2 years warranty JPT RAYCUS IPG 20W 30W 50W Color Mini portable Fiber Laser Marking Machine

Focus finder system, pilot laser, easy to use software, motorized Z axis, all integrated features will make your marking process more efficient and productive.
Product Description

MH-F20M are designed with enormous space, which make it easier for putting in complex workpiece and install needed making accessories. Despite its expanded machine body

2 years warranty JPT RAYCUS IPG 20W 30W 50W Color Mini portable Fiber Laser Marking Machine

Main Features

Extremely fast, with high-speed galvanometer;
Small volume, light weight;
No consumables, low power consumption, less than 500W;
Completely air cooled, do not need water chiller, lower power consumption;
Robust under harsh environment and temperature change, can operate with batteries or supply from automobile cigarette lighter in case of power failure;
Low product depreciation cost. Ability to meet customers’ mass and stable production;

Specifications

Laser Power: 20W, 30W, 50W,100W Standard Marking Area: 110mm x 110mm
Laser Brand RAYCUS, IPG Marking Depth: ≤1.2mm (adjustable)
Laser lifetime 100,000(Theoretically) Marking Speed: ≤12000mm/s
Laser Wavelength: 1064nm Min. Line Width: 0.01mm
Laser medium Yb:fiber Min. Character Size: 0.5mm
Beam Quality: <1.5 Repetition Frequency: ≤100KHz
Power Consumption: ≤500W Repetition Precision: ±0.001mm
Power Supply: 220V/50Hz/10A Operation Temperature -10ºC-60ºC
Cooling method: Air cooled Humidity 5-95%
Control System Win7, Win8, Win10, Win XP Marking FormatsMarking Formats ai., plt., dxf., tiff., jpg. etc.

Lens Opitional

Model MH-L65 MH-L170 HBS220 HBS300
Marking Area 65*65(mm) 170*170(mm) 220*220(mm) 300*300(mm)
Focal Length 100mm 250mm 330mm 420mm

Specification of all Laser Marking Machine

1. Auto focus finder system 4. Extremely high speed and precise
2. Motorized Z axis system 5. No consumable parts, no maintenance required
3. Delicated internal designs and lines 6. Robust under harsh environmen

Applicable Industries of fiber laser marking machine:

Mobile Phone keypad,plastic translucent keys,electronics components,integrated circuits (IC),electrical

appliances,communications products,sanitary ware,tools,accessories,knives,eyeglasses and clocks,jewelry,

auto parts,luggage buckle,cooking itensiles,stainless steel products and other industries.

Applicable Materials of fiber laser marking machine:

Metal(including rare metals),engineering plastics,electroplating materials,coating material,plastic,rubber,

epoxy resin,ceramic,plastic,ABS,PVC,PES,steel,copper and other materials

Packaging & Shipping

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard. We can send machine to your port or door address by sea.

Our Services:

Guarantee & After-sale Service
1. One year warranty under normal use and we supply lifelong maintenance
2. 24 hours technical support by Phone, Email, Skype, MSN, or Remote
3. Free training to make sure you master the operation of the cnc router
4. Friendly English Operation Manual, popular and easy to understand
OEM Service Available
1. Usually we will manufacturer the machine as our regular design
2. X Y Z Working Area could be customer-oriented designing
3. Special configuration could be customer-oriented designing
