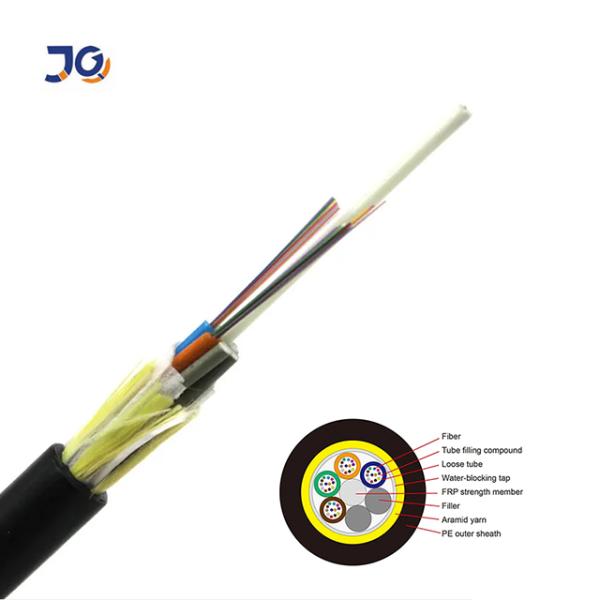

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable
Specifications
Brand Name :
Jiqian
Model Number :
ADSS-48B1
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
6000km per month
Delivery Time :
Normally 5-7 days,it depends on order quantity
Packaging Details :
Plywood drum
Number of Conductors :
4-288 cores
Strength member :
FRP+Kevlar Yarn
Storage/operating temperature: :
-40 +70 °C
Application :
Overhead installation
Manufacturer :
Yes
Cable type :
All dielectric fiber optic cable
Jacket :
Double jackets/single jacket
Length :
1km,2km,3km,4km,5km
Description

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Cable Performance

Item

Contents

 Value
6/12/24 48 72 96
Structure Type 1+6 1+6 1+8 1+12

Loose tube

 Max Fiber counts/tube 6 12 12 12
Outer diameter (mm) 1.9±0.1 2.2±0.1 2.2±0.1 2.2±0.1

Central strength member

 Material FRP
Diameter (mm) 1.4 1.6 2.0 3.5
PE layer diameter (mm) -- --
Peripheral strength member Material FRP

Sheath

 Material HDPE
Color Black
Thickness (mm) Nominal: 1.6
Cable diameter(mm) Approx. 9.8±0.2 10.0±0.2 11.8±0.3 13.8±0.5
Cable weight(kg/km) Approx. 128 131 148 152


Fiber parameter

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm μm 9.2±0.4
1550nm μm 10.4±0.8
Cladding diameter μm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error μm ≤0.5
Coating diameter μm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error μm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.36
1550nm dB/km ≤0.22
Proof stress level kpsi ≥100

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Company profile:

1.Located in Guangzhou China


2.12 years experiance of producing fiber optic cable


3.CE/ROSH/FCC/ISO9001 Certifications


4.Exporting fiber optic cable to all over the world

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

Exhibition

Factory Price ADSS Span 100M Fiber Optic Cable 48 Core G652D Optical Fiber Cable

FAQ:

Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.

Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.

Q5. Can you provide OEM or ODM

A: Yes

Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
