Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable
Specifications
Brand Name :
Jiqian
Model Number :
ADSS-24B1
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
9000km per month
Delivery Time :
Normally 5-7 days,it depends on order quantity
Packaging Details :
Plywood drum
Temperature :
-40~+70°C
Loose tube material :
PBT
Cable type :
Non metal self-supporting
Fiber cores :
2-288 cores
Reinforced member :
Aramid yarn+FRP
Factory :
Yes
Length :
2km,3km,4km,5km one drum
Jacket :
single jacket&double jacket
Life expectancy :
25-30 years
Description

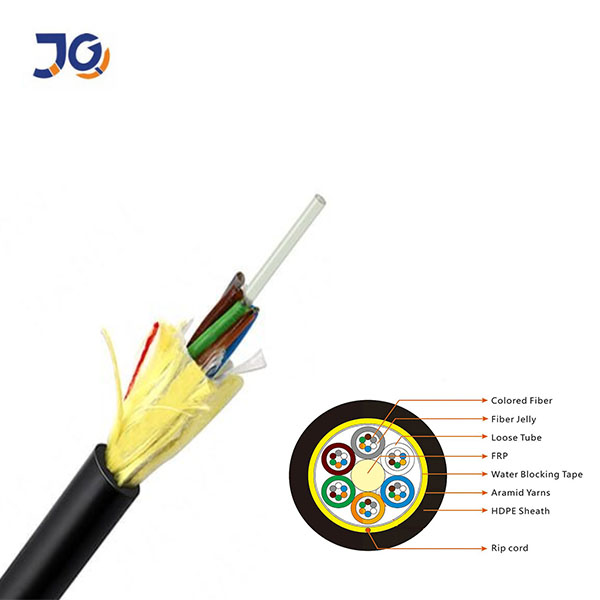

All Dielectric Self-Supporting (ADSS) cables are designed for overhead self-supporting applications

We provide short, medium and long span distances.

Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic CableJiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

FEATURES:
1.Dielectric unique design for use for installation with power distribution or near power lines
2.Very high tensile strength ideal for outdoor aerial applications
3.12-288 Cores 4.Compact 250um loose tube 5.High crush resistance 6.Self-supporting design 7.Choice of sheath thicknesses for different span lengths
8.PE and flame-retardant LSZH sheath options
Application:Overhead

Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

Fiber optic G652D

Item Unit Specification
Fiber Type G.652D
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % £1.0
Core/cladding concentricity error mm £0.5
Coating diameter mm 245±5
Coating non-Circularity % £6.0
Coating/cladding concentricity error mm £12.0
Cable cut-off wavelength nm £1260
Attenuation Coefficient 1310nm dB/km £0.36
1550nm dB/km £0.22
Proof stress level kpsi ≥100


Packing: plywood drum 2/3/4km one drum or as your requirement
Delivery:By sea/road/train
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

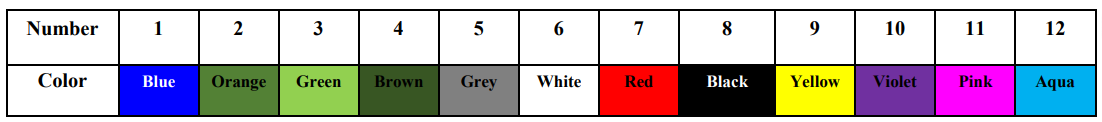

Fiber optic Color Order:

Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for more than10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

Certification:

Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

Exhibition:

Jiqian Overhead Fiber Cable Meter ADSS 8 12 24 48 Core Single Mode Fiber Optic Cable

FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free of charge

3.Do you accept small order?
Yes, small order is available
4.What is your cable life expectancy?
25 years for outdoor fiber optic cable

5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements


Welcome to visit our factory
