Specifications
Brand Name :
JQ/OEM
Model Number :
ADSS
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber type :
G652D Single mode or as your request
Fiber count :
2-288 Cores
Length :
as required
Color :
Customized
Jacket :
PE,MDPE,LSZH,PVC
Central strength member :
FRP
Structure :
Multi Loose Tube
Package :
Wooden Drum/Customized
Application :
Self-supporting aerial
Oem :
Available
Description

Product Description:

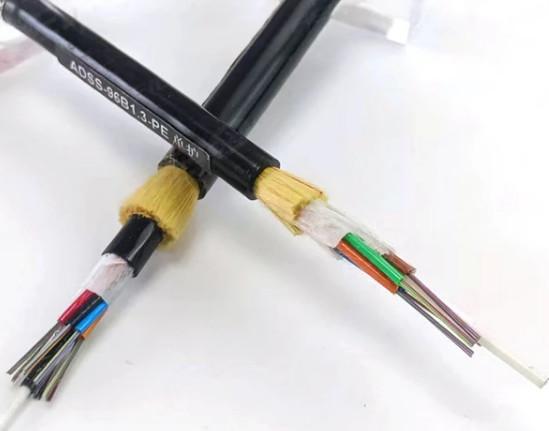

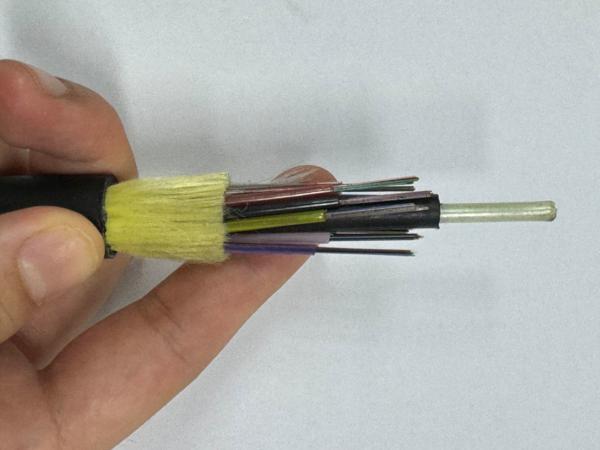

ADSS (All-Dielectric Self-Supporting) cable is loose tube stranded. The fibers, 125μm,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tubes and fillers are stranded around a FRP as a non-metallic strength member into a compact and circular cable core,and the cable core is wrapped with a layer of Kevlar. Between the Kevlar yarn and the loose tube, water-blocking material is applied to keep the cable compact and watertight. Final the cable is completed with a polyethylene (PE) or AT outer sheath.
ADSS cable is ideal for installation in distribution as well as transmission environments, even when live line installations are required. As it's name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of achieving a fIber optic network. ADSS fiber optic cables are designed to provide high fiber counts with the flexibility and versatility required for today's most demanding installations,fiber counts up to 144 cores .
Single mode outdoor fiber optic cable G652D single jacket for aerial mini ADSS

Characteristic:

1. Small cable diameter (suitable for harsh weather), light weight, small additional load on the tower.

2. Non-metal structure, good insulation, lightning protection.

3. Fine production process, so that the aramid yarn force uniform, with excellent stress flexibility.

4. High tensile strength, can achieve large span laying.

Applicatioon:
1. Erect on the same pole with power line in new and old power line.
2. Areas of strong electric field, anti-thunder, etc.
3. Long span communication system.
Single mode outdoor fiber optic cable G652D single jacket for aerial mini ADSS

Specification:

item value
Model Number ADSS
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Cable type Outdoor All dielectric self-supporting aerial cable ADSS
Cable Structure FRP+aramid yarn+outher sheath
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber material silicon dioxide
Fiber Type G652D Single mode or as your request
Fiber color Blue, Orange, Green, Brown,etc
Central strength member FRP
Loose tube Jelly filled
Loose Tube Stranded Loose Tube
Loose tube Material PBT
Water Blocking Water Swell able Material
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Installation Self-supporting aerial
Span 150 meters
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL

Optical Characteristics:

G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm ≤3.0 dB/km
(+20℃) '@1300nm ≤1.0 dB/km
'@1310nm ≤0.34 dB/km ≤0.40 dB/km
'@1550nm ≤0.21 dB/km ≤0.23 dB/km
'@850nm ≥500 MHz·km
'@1300nm ≥1000 MHz·km
Numerical Aperture 0.200±0.015NA

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

Single mode outdoor fiber optic cable G652D single jacket for aerial mini ADSSSingle mode outdoor fiber optic cable G652D single jacket for aerial mini ADSS

WHY CHOOSE US:

Single mode outdoor fiber optic cable G652D single jacket for aerial mini ADSS

Certification:

Single mode outdoor fiber optic cable G652D single jacket for aerial mini ADSS

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
