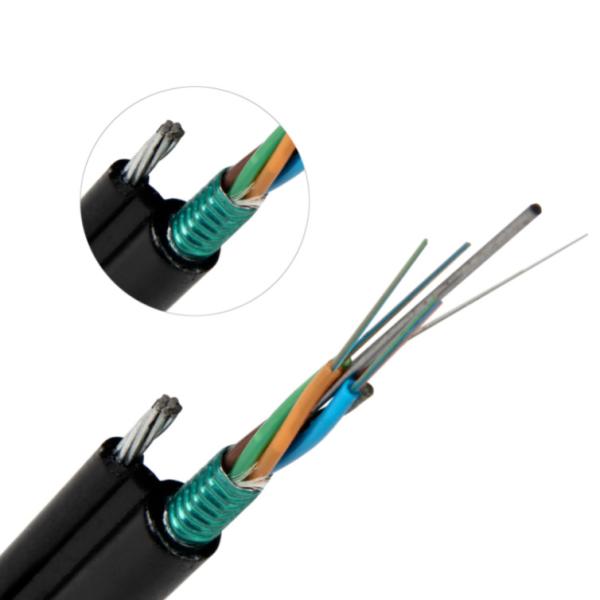

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
Specifications
Brand Name :
JQ
Model Number :
GYTC8S/GYXTC8S
Place of Origin :
Guangzhou China
Certification :
ISO9001
Outer Diameter :
7.0mm-16.0mm
Cladding Diameter :
125.0±0.1
Water Blocking System :
Filling Compound
Fiber Cores :
4-144cores
Weight :
90kg/km
Self Suporting :
Stranded Steel Wire
Jacket Material :
LSZH
Jacket :
UV PE
Description

Product Description:

Product Overview

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

Applications
  • Telecommunications
  • Broadband networks
  • CATV networks
  • LAN/WAN systems
  • Industrial control systems

Overall, our Fiber Optic Cable Wire is a versatile and efficient solution for various data communication needs. Its high-quality construction and advanced features make it a top choice for reliable and high-performance networks.

Technical Parameters:

Product Name Figure-8 self-supporting optical cable
Fiber Optic Cable Fig.8 Fiber Optic Cable
Technical Parameters
Cable Sheath PE
Bend Radius 20x Cable Diameter
Jacket UV PE
Jacket Material PE/MDPE/HDPE
Bending Radius 20D
Armored Material Aluminum Tape or Steel Tape
Cladding Diameter 125.0±0.1
Fiber Cores 4-144 cores
Fiber Diameter 9/125μm
Water Blocking System Filling Compound

Other products:

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
  • Brand Name: JQ
  • Model Number: GYTC8S/GYXTC8S
  • Place of Origin: Guangzhou, China
  • Outer Diameter: 7.0mm-16.0mm
  • Bend Radius: 20x Cable Diameter
  • Warranty: 25 Years
  • Cable Use: Outdoor
  • Self Supporting: Stranded Steel Wire

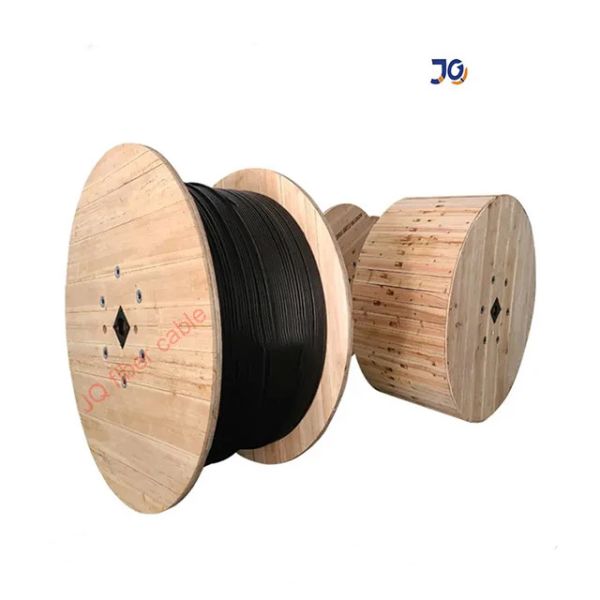

Packing and Shipping:

UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable
UV Jacket Figure 8 Overhead Installation 48 Cores Fiber Optic Cable

We take great care in packing and shipping our Figure 8 Fiber Optic Cable to ensure its safe and timely arrival. If you have any questions or concerns about your order, please don't hesitate to contact us.
