Specifications
Brand Name :
Jiqian
Model Number :
MGXSTV
Certification :
CE/ISO9001
Place of Origin :
Guangdong,China
MOQ :
1KM
Price :
60-200USD/KM
Payment Terms :
L/C, D/A, T/T, Western Union, MoneyGram
Supply Ability :
60000KM/month
Delivery Time :
3-5 days, it depends on your quantity
Packaging Details :
wooden drum
Fiber count :
2-24Core
Strength member :
Metal reinforcement
Warranty :
25 years
MOQ :
1KM
OEM :
Yes
Amoured :
Yes
Length :
1/2/3/4/5KM
Feature :
blue color,flame retardant sheath,LSZH outer sheath
Description
Product Description

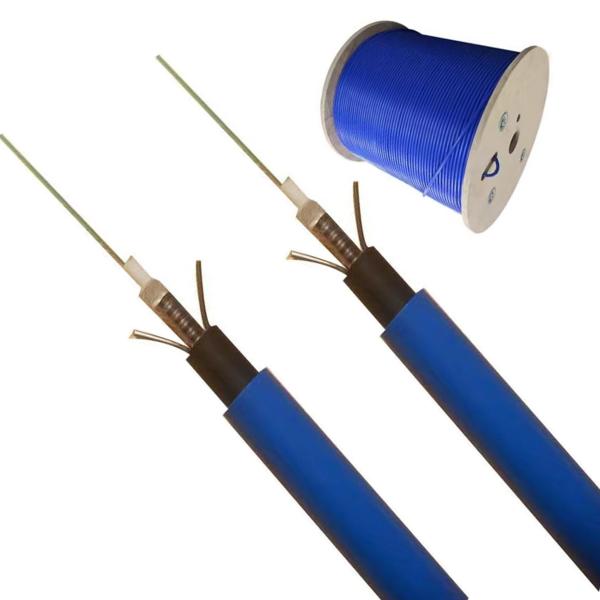

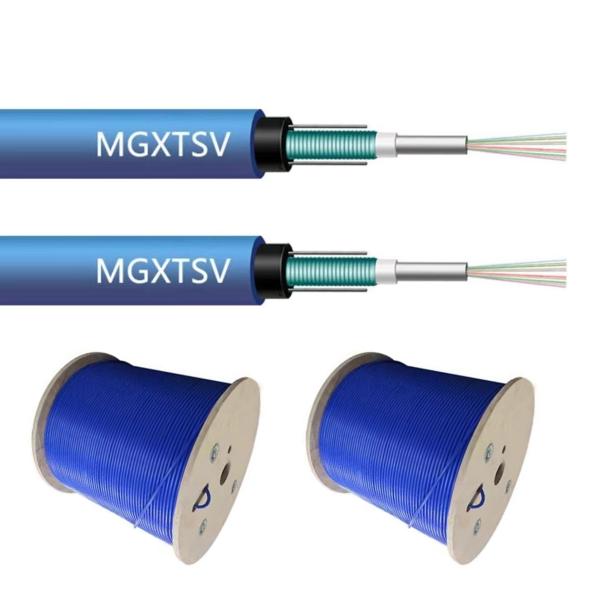

Flame retardant Mine Armored Fibre Cable LSZH MGXSTV Blue Color G652D 6 12 24 48 core fiber optic cable

Application

1. Mine
2. tunnel
3. pipeline

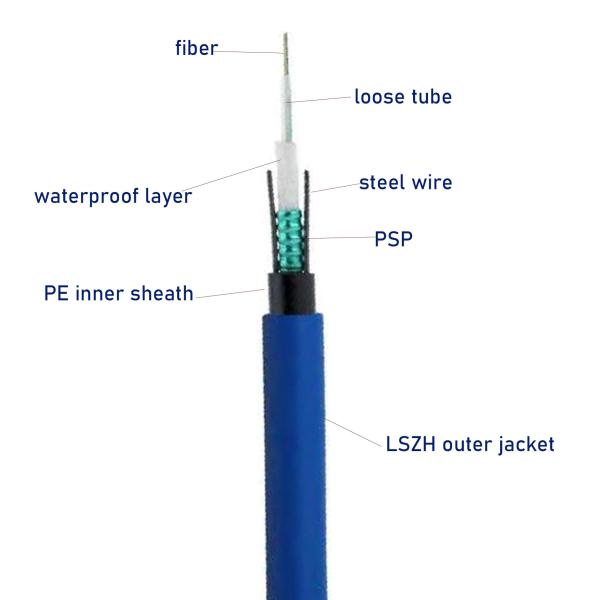

PE inner sheath,then a flame-retardant LSZH sheath.
Features:
1.Good mechanical and temperature performance;
2.High strength loose tube that is hydrolysis resistant;
3.Special tube filling compound ensure a critical protection of fiber;
4.Special designed compact structure is good at preventing loose tubes from shrinking;
5.Crush resistance and flexibility;
6.Special sheath material ensures excellent flame-retardant performance;
7.The following measures are taken to ensure the cable water tight: Loose tube filling compound; 100% cable core filling; PSP
enhancing moisture-proof, steel wire used as strength member.
Specification
Product Name
Flame retardant Mine Armored Fibre Cable LSZH MGXSTV Blue Color G652D 6 12 24 core fiber optic cable
Fiber Count
2-24 Fibers,can be customized according to customers' requirement
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
LSZH
Application
Mine tunnel pipeline
Diameter
depends on quantity of fiber and structure
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
FRP in the centre of the fiber optic cable
Color
usually black,can be customized
Fiber Parameter
Item
Unit
Specification
Fiber Type
G. 652
Mode field diameter
1310nm
μm
9.2 ± 0.4
1550nm
μm
10.4 ± 0.8
Cladding diameter
μm
125.0 ± 1
Cladding non-circularity
%
≤1.0
Core/cladding concentricity error
μm
≤0.5
Coating diameter
μm
242 ± 7
Coating/cladding concentricity error
μm
≤12
Cable cut-off wavelength
nm
≤12
Attenuation Coefficient
1310nm
dB/km
≤0.36
1550nm
dB/km
≤0.22
Proof stress level
kpsi
≥100

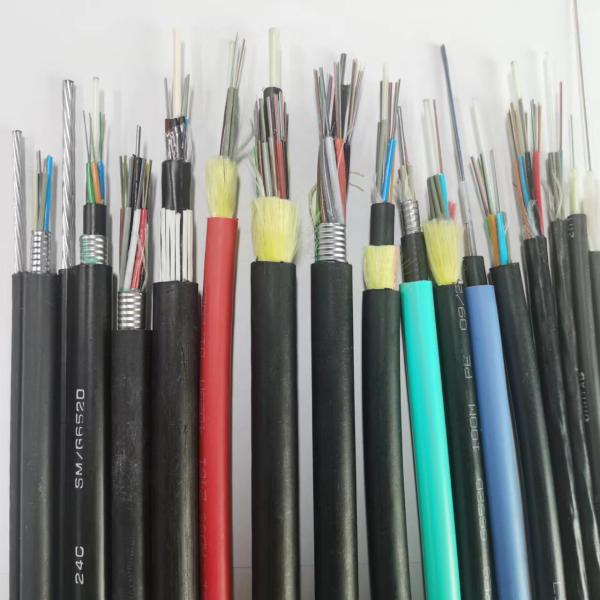

Related Products
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

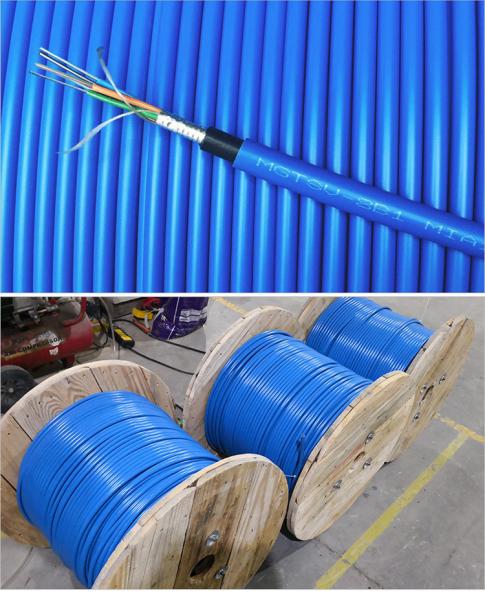

Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity

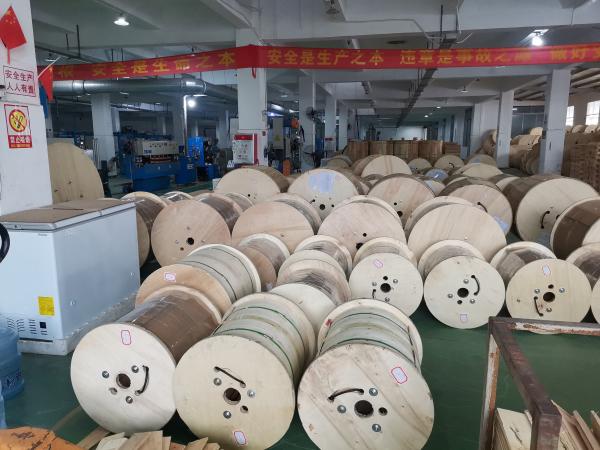

Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
