Specifications
Brand Name :
Jiqian
Model Number :
GYFTY
Place of Origin :
China
MOQ :
2km
Price :
70-150usd/km
Packaging Details :
wood drum
Fiber Model :
G652D Or G657A
Waterproof :
Yes
Suitable Temperature :
-40℃ +70℃
Useful :
FTTX
Type :
GYFXTY
structure :
layer-stranding cable
Network :
FTTH FTTX
Description
Product Description

Telecommunication aerial or duct network outdoor IP68 GYFTY big quantity cores 8mm 9mm 11mm 14mm 16mm PE jacket fiber optik cable

GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high
electromagnetic interface. The cable tubes, which are filled with filling compound, are stranded around the FRP strength member.Then the aramid yarn is applied over water proof material, the cable is completed with a PE sheath. GYFTY cables are available from 2 core to 288 core. It is used in high-voltage area for long distance aerial or duct application.
Fiber:
2-288 fiber Multi-loose tube gel-filled
Central Strength Member:
Fiberglass reinforced Platic (FRP).
Outer Jacket:
Black UV Polyethylene(PE)
Features:
* Up to 288 fibers.
* Loose tube gel-filled construction for superior fiber protection.
* Corrugated steel tape armor to protect cable from mechanical damage.
* UV and waterproof design
Application:
(1) Wile area network system
(2) Junction communications system
(3) Adopted for outdoor backbone cable, distribution cable
(4) Long distance and local area network communications
(5) Suitable for Aerial, Duct and strong power transmission, lighting environment
Specification
Product Name
Fiber Optic Cable
Fiber Count
2-288 Fibers,can be customized according to customers' requirement
Construction
layer-stranding cable
Fiber Type
Singlemode G.652D / G.657A1
Outer Jacket Material
usually PE,plastic,LSZH,can be customized
Application
aerial or duct
Jacket Diameter
8-25mm
Cable Length
3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-20℃ to +60℃
Strengthen
FRP
Color
usually black,can be customized
Related Products
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.

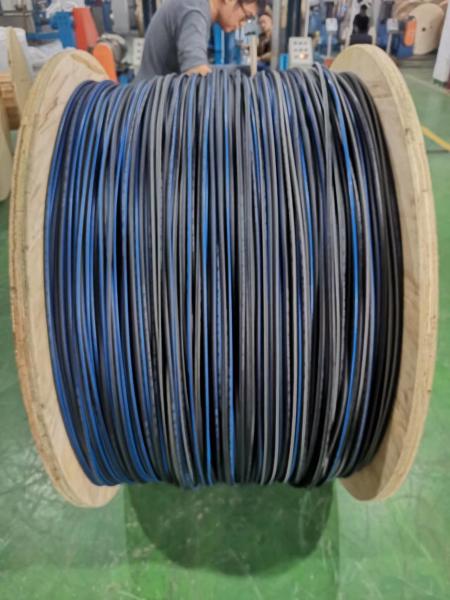

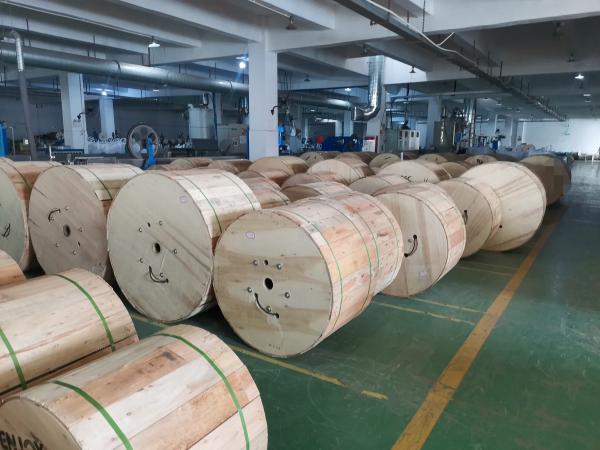

Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
