GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
GCYFY Outdoor Microduct Single Mode 6 12 24 Cores Air Blown Fiber Optical Cable
Specifications
Brand Name :
Jiqian
Model Number :
GCYFY
Place of Origin :
China
MOQ :
2km
Price :
90-2500usd/km
Packaging Details :
wood drum
Fiber Model :
G652D Or G657A
Waterproof :
Yes
Suitable Temperature :
-40℃ +70℃
Useful :
FTTX
Type :
air blown fiber optic cable
structure :
small loose sleeve central tube / loose sleeve layer fiber cable with non-metallic reinforcement
Network :
FTTH FTTX
Description
Product Description

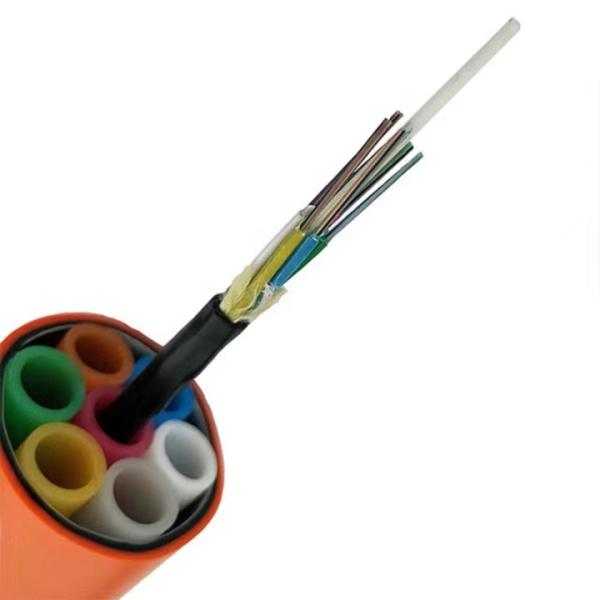

Factory Supply GCYFY outdoor microduct air blown Single Mode 6 12 24 cores Fiber Optical cable
Air Blowing Cable (MINI) is small size, light weight, enhanced surface outer sheath fiber unit designed for blowing into micro tube bundles by air flow. The outer thermoplastic layer provides a high level of protection and excellent installation
properties.It is usually applied in FTTX.

We manufactures a wide range of cables from 2–288fibers with a variety of designs to meet the demands of most installation conditions. Only the highest quality materials are used in our fiber optic cables to ensure that the cable strength and optical integrity are not compromised. Rugged jacket materials and the addition of armore provide the right level of protection.
Features:
* Using centre tube design less than 24f to get more compact structure
* Small diameter, light weight , low friction sheath material
* Accurate excess fiber length control to get stable cable performance
* Stable temperature cycling performance by special process control
* High speed, long distance air-blowing , efficient installation
* Optional LSZH outer sheathing, applicable for access to indoor
* Optional 200μm mini optical fibre to get smaller outer diameter
Application

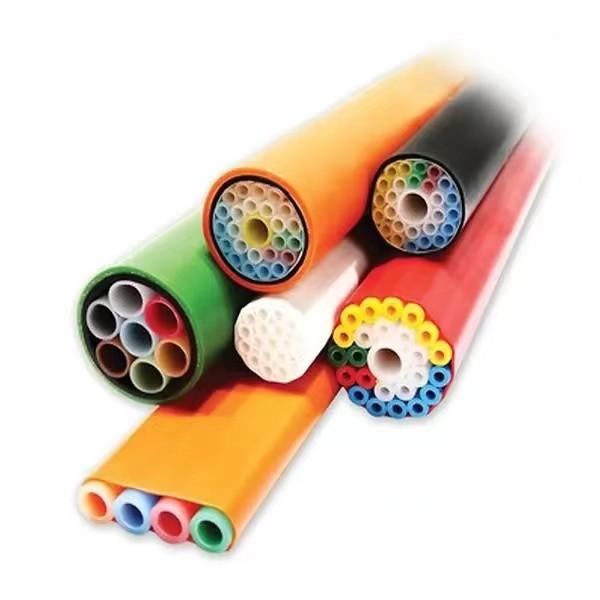

Microduct assemblies are available for several installation environments such as direct buried installation, into existing pipes or for indoor installation. Microducts are characterised by heavy wall microducts and a relatively thin outer sheath. The thickness of each inner tube allows individual tubes to be used direct bury solution. The microducts are rugged enough to protect the fiber cables inside. Micro ducts are made of HDPE and have a low friction inner surface for best blowing performance.
Specification
Product Name
Mirco Air Blown Fiber Optic Cable
Fiber Count
2-288 cores,can be customized according to customer's requirement
Construction
small loose sleeve central tube / loose sleeve layer fiber cable with non-metallic reinforcement
Fiber Type
Singlemode G.652D / G.657A1
Type
Center beam tube type,layer-stranding type
Application
duct,direct buried,piping
Application situation
long distance communication,good crush resistance,ratproofed
Cable Length
1km,2km,3km,5km per drum,can be customized
Test Wavelength
1310/1550nm
Operation Temperature
-40℃ to +70℃
Strengthen
multi layers with metal structure
Advantage
no grounding,easy to connect and construct
Related Products
Above are some other styles for reference,we can also customize according to customers' requirements like quantity of fibers,structure,diameter,weight,color of the cables.
Packing & Delivery
Packaing detail:
1km/ 2km/3km/4km 5km per plywooden drum

Shipping:
By sea/by air or express delivery,it depends on the order quantity
Company Profile
Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.
