Specifications
Brand Name :
JQ
Model Number :
GYTA GYTS
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber type :
G652D Single mode or as your request
Length :
as required
Color :
Customized
Cable Structure :
Multi-Loose Tube Armor
Tube :
Multi-Loose Tube
Outer Sheath :
PE or as your request
Package :
Wooden Drum/Customized
Application :
Outdoor Overhead
Oem :
Available
Description

Product Description:

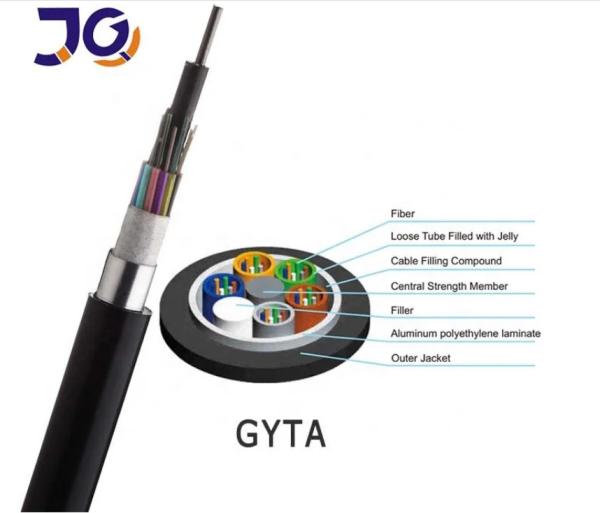

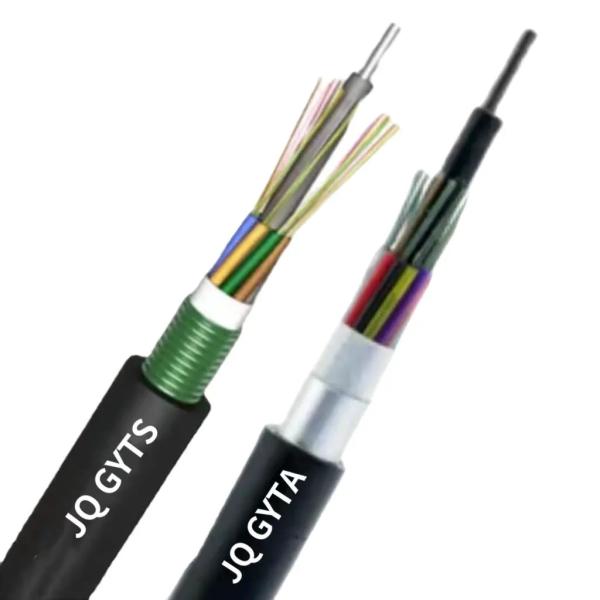

The structures of GYTS and GYTA fiber optic cables are the same, except that one is an aluminum strip and the other is a steel strip. one hundred and twenty-five μ The optical fiber of m is located in a loose tube made of high modulus plastic. The pipe is filled with waterproof filling compound. Steel wire, sometimes covered with polyethylene (PE) sheath, is used for high fiber dimension cables as a metal strength component located at the center of the core. The tube (and filler) is twisted around the strength component to form a compact circular cable core. PSP is longitudinally applied to the cable core, which is filled with filling compound to protect it from water ingress. The cable adopts PE sheath.

2 to 288 cores GYTA GYTS outdoor single mode fiber optic cable Factory direct supply

Characteristics:

■Steel wire strength filler protect tube fiber steel tape armord.
■Good ultra violet radiation resistant property.
■Good moisture-resistance.

Application:

■Adapted to Outdoor distribution.
■Long distance and local areanetwork communication.
■Suitable for aerial pipeline layingmethod.

Specification:

Product name GYTA
No. of Fiber: 2-288core
Brand JQ/OEM
Fiber Type G652d
Strength member Steel wire
Outer Sheath PE Jacket
Loose tube material PBT
Strength member: Central Steel Wire or FIberglass reinforced plastic (FRP)
Package Wooden Drum
Operating temperature -40~+70
Filling compound in loose tube Gel
Application
Aerial
Certification ISO9001/ ROHS/ CE/ FCC
1310nm ≤0.34dB
1550nm ≤0.21d


Structure and Technical Specifications:

cable countr out sheath diameter Weight Minimum allowable Tensile strength(N) Minimum Min bending radius(MM)
(MM) (KG) allowable Crush load(N/100mm)
Short term Long term Short term long Term short term long Term
2-36 12.8 170 3000 1000 3000 1000 20D 10D
38-72 14.2 212 3000 1000 3000 1000 20D 10D
74-96 15.7 245 3000 1000 3000 1000 20D 10D
98-120 17.3 289 3000 1000 3000 1000 20D 10D
122-144 18.8 328 3000 1000 3000 1000 20D 10D
