4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTC8S
Certification :
CE/ISO9001
Place of Origin :
Guangdong, China
MOQ :
1 Kilometer
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
8000 kilometers per month
Delivery Time :
2-5days
Packaging Details :
Wooden Drum
Type :
Outdoor Fiber Optic Cable
Number of Conductors :
≥ 10
Fiber type :
G652D Single mode or as your request
Length :
as required
Color :
Customized
Jacket :
PE,MDPE,LSZH,PVC
Package :
Wooden Drum/Customized
Application :
Aerial,Overhead
Oem :
Available
Central strength member :
FRP
Description

Product Description:

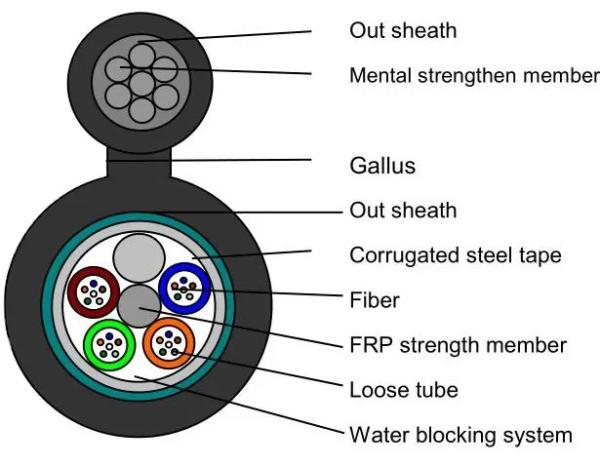

The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water resistant filling compound. FRP locates in the center of core as a non-metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Steel tape (SPS) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S

Features:

■ Low dispersion and attenuation.

■ Proper design, precise control for fiber excess length and distinct stranding process.

■ render the cable excellent mechanical and environmental properties.

■ With small cable diameter, light cable weight, easily to lay.

■ The armoring of corrugate steel tape make cable have nice properties of moisture resistance and crush resistance.

Application:

* Long-distance backbone network
* Urban ring network
* Access Network, FTTX
* Relay between communication machine rooms
* Building cable in integrated wiring

4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S

Specification:

item value
Model Number GYFTC8S
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Structure multi loose tube
Number of Conductors ≥ 10
Fiber count 2-144 Cores
Fiber Type G652D Single mode or as your request
Central strength member steel wire
Loose tube Jelly filled
Loose tube PBT
Jacket Sheath PE
Color Black or as your need
Package Plywood Reel/customized
Application Aerial,Overhead
operating temperature -40 to +70
Certification CE/ROHS/ISO9001 /ANATEL

Optical Characteristics:

G.655 50/125μm 62.5/125μm
G.652
Attenuation '@850nm ≤3.0 dB/km
(+20℃) '@1300nm ≤1.0 dB/km
'@1310nm ≤0.34 dB/km ≤0.40 dB/km
'@1550nm ≤0.21 dB/km ≤0.23 dB/km
'@850nm ≥500 MHz·km
'@1300nm ≥1000 MHz·km
Numerical Aperture 0.200±0.015NA

Company Profile:

Guangzhou Jiqian Fiber Optic Cable Co.Ltd. is located in 2nd Floor,Building B3,Building 3 No.43 Lixin 9th Road,Xintang Town,Zengcheng District,Guangzhou city,Guangdong province,China.It is a large-scale high-tech specialized joint-stock enterprise that integrates scientific research, development,production, and sales. It specializes in producing various types and specifications of optical cables with 2-288 cores. The company adheres to the corporate spirit of "integrity, speed, flexibility, efficiency, and innovation", and strives for perfection, appreciation for customers, and paving the way for success, Adhere to the standard that "customer satisfaction is the most important measure of our performance". We promise to work together with you with high-quality products, discounted prices,and first-class services to create a brilliant career.
We sincerely welcome customers all over the world to visit our factory and build long term relationship with each other.

4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S

WHY CHOOSE US:

4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S

Certification:

4 6 12 24 48 96 144 core G652D single mode Outdoor Optical Fiber Figure 8 Armored Cable GYFTC8S

FAQ:

1. who are we?
We are based in Guangdong, China, start from 2017,sell to Africa(33.00%),South America(17.00%),Western Europe(17.00%),Mid East(17.00%),Southeast Asia(9.00%),South Asia(7.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Cable, FTTH Drop Cable, Communication Cables, Outdoor/Indoor Fiber Cable
4. what services can we provide?
Accepted Delivery Terms: FOB,EXW；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese

5.MOQ: what is your minimum quantity?
-MOQ : 1KM
6.Can I get a sample?
-Yes, we provide FREE sample and you just need to pay for express freight.
7.Accept OEM or ODM?
-Yes,we're manufacturer. And we have our own Engineering Department. You just need to tell us your requirements.
8.What is your delivery time?
-The general delivery time is 3-7 days after order confirmed. It depends on the order quantity.
