All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores
Specifications
Brand Name :
Jiqian
Model Number :
ADSS-24B1
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
6000km per month
Delivery Time :
Normally 5-7 days,it depends on order quantity
Packaging Details :
Plywood drum
Product name :
All-dielectric self-supporting ADSS
Strength member :
FRP+Kevlar Yarn
Fiber type :
Single mode/multimode
Application :
Aerial self-support
Factory :
Yes
Cable type :
All dielectric fiber optic cable
Sheath :
Single /Double sheath
Length :
2/3/4km or as per your requirement
Description

All-Dielectric Self-Supporting ADSS Span 100m Fiber Optic Cable 24 Cores

All Dielectric Self-Supporting (ADSS) cables are designed for aerial self-supporting applications requiring short, medium and long span distances.
Our ADSS cables offer a rapid and economical means for deploying optical fiber cables along existing aerial rights-of-way. They are deployed by cable television operators, telephone companies, municipalities and emerging network operators, in addition to electric power utilities. The ADSS cable consists of a number of tubes/elements according to the specified number of fibers.The elements are usually fiber-containing tubes; however fillers may be used to preserve the cable geometry.

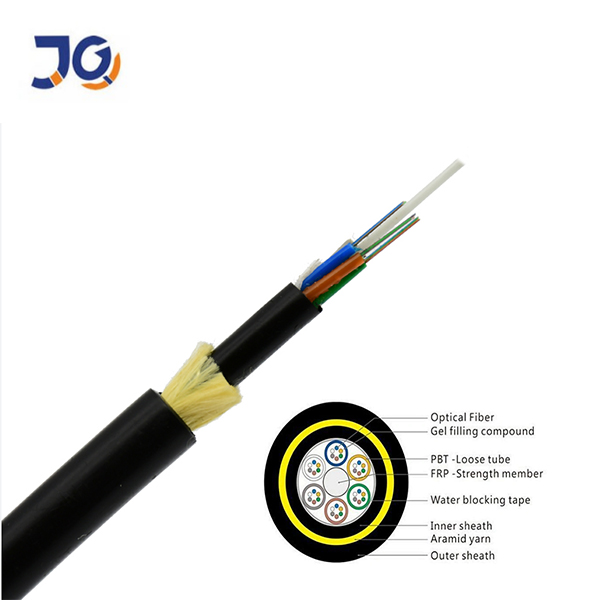

Two to 24 color-coded fibers are loosely laid in each tube containing a water-blocking gel.The tubes are stranded around a dielectric central strength member and a water-swelling tape is helically wrapped around the cable core.
Aramid yarn strength members are helically laid to provide the required tensile performance of the cable. The outer jacket is
tightly bound over the aramid yarn layer. For long span applications a double jacket design can be considered. A ripcord is located under each jacket layer to facilitate its removal.


All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores

Fiber parameter

G.652 G.655 50/125μm 62.5/125μm
@850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.00 dB/km ≤0.00 dB/km
@1550nm ≤0.00 dB/km ≤0.00 dB/km
Bandwidth(Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥500 MHz·km ≥500 MHz·km
Numerical aperture 0.200±0.015NA 0.275±0.015NA
Cable Cutoff Wavelength ≤1260nm ≤1480nm


All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores


Packing: plywood drum 2/3/4/5 one drum or as your requirement
Delivery:By sea/road/train


Company profile:
Guangzhou jiqian fiber optic cable co.,ltd is a high-tech company group engaged in researching, manufacturing, selling
communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable for 10 years, with ISO9001, FCC, ROHS and CE certificates. We OEM or design any structure of fiber optic cable for you. The main products of our company are: optical fiber cables/FTTH Drop Cable. All of the products are widely used in telecom, railway and other communication products related department, exported to many countries and districts such as North/South America, Europe, Mideast and Southeast Asia.Africa
All Dielectric Self Supporting ADSS Span 100m Fiber Optic Cable 24 Cores

FAQ:
1.Are you a manufacturer or trade company?
Yes. We are a factory in Guangzhou,China

2.Do you provide samples? is it free or charched?
Yes, sample is available, It's free,just need to pay for the freight

3.Do you accept small order?
Yes, small order is available .We support new project of our customers as we know business is always from small order.

4.What is your warranty period?
25 years for fiber optic cable

5.Which kind of certification you have ?
ISO9001/CE/ROHS/FCC

6.What is your delivery time?
Usually 5-7 working days,It depends on order quantity

7.What is your fiber brand?
Corning,YOFC ,Fiberhome

8.What is your payment method?
T/T, L/C, Western Union and Paypal.

9.Can you supply customized products and logo?
-Yes. We supply OEM&ODM service. You can send us your requirements


Welcome to visit our factory
Contact me at +8618998347595 to get free sample
