14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYDTS/OPLC
Certification :
ISO9001 ROHS CE FCC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km Per day
Delivery Time :
3-5 dyas
Packaging Details :
1/2/3/4/5 km in one wooden drum
Jacket material :
PE
Outer diameter :
9mm
Fiber count :
2-144 Core
Structure :
Unit tube/Stranded twisted cable
Strength member :
Steel wire
Product name :
Hybrid Optic Fiber Cable
Fiber type :
YOFC or as request
Application :
Aerial,Duct
Color :
Black
Type :
Hybrid Cable
Length :
2km or customized length
Description

14AWG 4*Copper Wire Hybrid Cable Optical Power Composite Cable

Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.

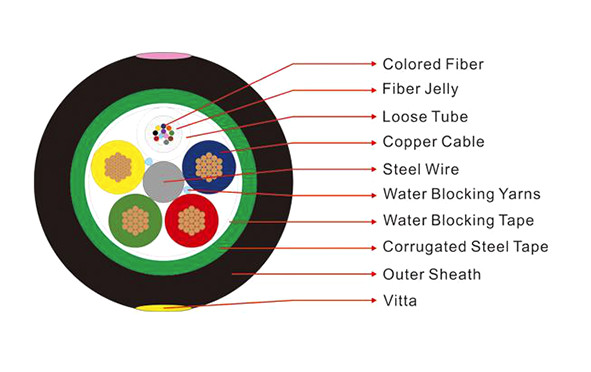

14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable

Features

Good mechanical and temperature performance

High strength loose tube that is hydrolysis resistant

Special tube filling compound ensure a critical protection of fiber

Compact structure and lightness, flexible and good bend-resistant performance

Low dispersion and attenuation.Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance

Application

Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.

Optical Fiber Characteristics

Item Specification
Fiber type G.652D
Attenuation
@ 1310 nm ≤0.36 dB/km
@ 1383 nm ≤0.35 dB/km
@ 1550 nm ≤0.22 dB/km
@ 1625 nm ≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc) ≤1260 nm
Zero Dispersion Wavelength(nm) 1300 ~ 1324 nm
Zero Dispersion Slope ≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm ≤3.5 ps/(nm. km)
@ 1550 nm ≤18 ps/(nm. km)
@ 1625 nm ≤22 ps/(nm. km)
PMDQ ≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm 9.2±0.4 um
Core Concentricity Error ≤0.6 um
Cladding Diameter 125.0±0.7 um
Cladding Non-circularity ≤1.0%
Coating Diameter 245±10 um
Proof Test 100 kpsi (=0.69 Gpa), 1%

Technical Parameters

Range of Temperature -20c~ +60c
Riser Type OFNR/OFN FT4
Plenum Type OFNR/OFN FT6
Jacket LSZH or PE
Code name cable
cores		 Diameter
(mm)		 Copper
Wire
(mm)		 Linear
mass
(kgk
m)		 Tensile Crush Bending
radius
Short
Term
(N)		 Long
Term
(N)		 Short
lerm
N)		 Long
Term
(N)		 short
Term
N)		 Long
Term
(N)
OPLC-2*0.5 6~24 10 2*0.5 125 1500 600 1000 300 20D 10D
OPLC-4*0.5 6-~24 10 4*0.5 130 1500 600 1000 300 20D 10D
OPLC-2*0.75 6~24 10 2*0.75 128 1500 600 1000 300 20D 10D
OPLC-4*0.75 6~24 10 4*0.75 135 1500 600 1000 300 20D 10D
oPLC-2*1.0 6~24 10 2*1.0 130 1500 600 1000 300 20D 10D
OPLC-4*1.0 6-~24 12 4*1.0 150 1500 600 1000 300 20D 10D
OPLC-2*1.5 6~24 12 2*1.5 140 1500 600 1000 300 20D 10D
OPLC-4*1.5 6~24 12 4*1.5 160 1500 600 1000 300 20D 10D
OPLC-2*2.5 6~-24 12 2*2.5 150 1500 600 1000 300 20D 10D
OPLC-4*2.5 6-~24 14.5 4*2.5 180 1500 600 1000 300 20D 10D

Product Image

14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable

14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable

Packing&Delivery

1/2/3/4/km in one wooden drum,deliver days:5-8work days

14AWG 4 Copper Wire Hybrid Composite Fiber Optic Cable

FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
