Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
Specifications
Brand Name :
JQ/OEM
Model Number :
MGTSV
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
4500KM Per Month
Delivery Time :
3-5dyas
Packaging Details :
1/2/3/4/5 km in one wooden drum
Jacket material :
Flame-Retardant LSZH
Fiber count :
4-288core
Structure :
Stranded
Product name :
Outdoor Optic Fiber Cable
Fiber type :
YOFC or as request
Application :
Aerial,Duct
Color :
Blue
Module :
MGTSV-24B1
Description

Multi Loose tube Miner Duct Fiber Optic Cable MGTSV

Item Name
MGTSV Fiber Optic Cable
Place of Origin
Guangdong,China
Model Number
MGTSV
Brand Name

JQ
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/ FRP
Material of Jacket
Flame-retardant Sheath
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Features

·Good mechanical and temperature performance

·High strength loose tube has good performance of water proof and high strength

·Special tube filling compound ensure a critical protection of fiber

·Good crush resistance and flexibility

·The following measures are taken to ensure the cable watertight:

·Steel wire used as the central strength member

·Loose tube filling compound

·100% cable core filling

·PSP enhancing moisture-proof and anti-rodent

·Good water resistance material prevent longitudinal seepage

·Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical data

Cable Type

Fiber

Count

Tubes

+Fills

Cable

Diameter

mm

Cable

Weight

Kg/km

Tensile

Strength

Long/Short

Term N

Crush

Resistance

Long

/Short Term

N/100m

Bending

Radius Static

/Dynamic mm

MGTSV-2~6

 2~60 5 12.2 156 1000/2000 500/1500 15D/30D
MGTSV-62~72 62~72 6 13.8 210 1750/3500 500/1500 15D/30D
MGTSV-74~96 74~96 8 15.1 242 1750/3500 500/1500 15D/30D
MGTSV-98~120 98~120 10 17.2 280 1750/3500 500/1500 15D/30D
MGTSV-122~144 122~144 12 19 320 1750/3500 500/1500 15D/30D
MGTSV-146~216 146~216 18 19 320 1750/3500 500/1500 15D/30D

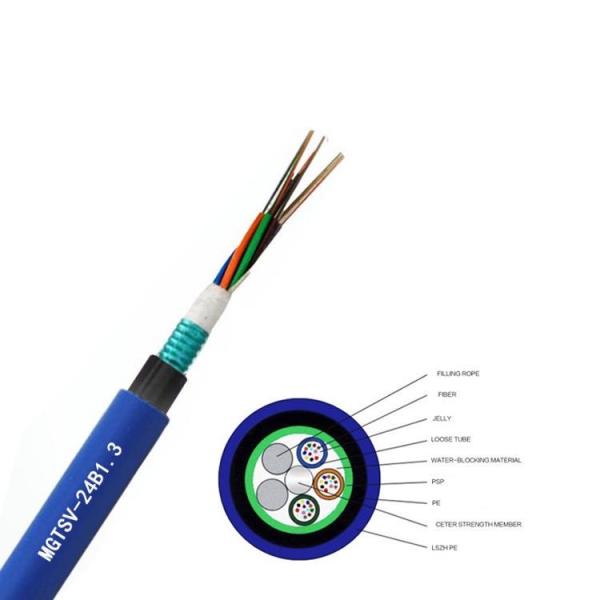

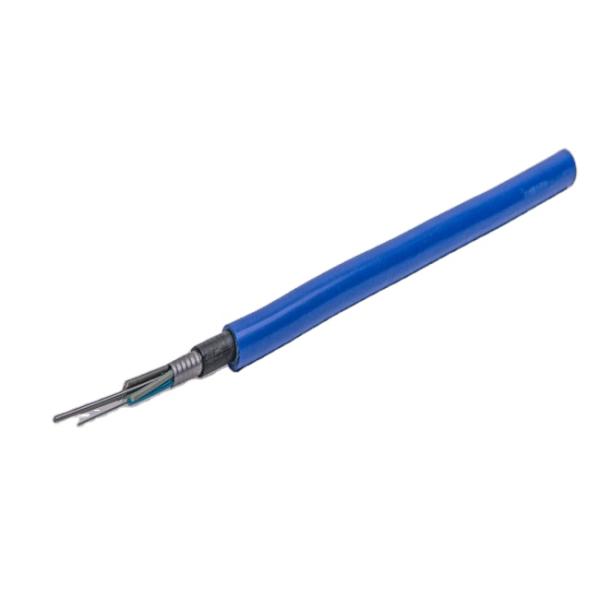

Product Image

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Application

Suitable for Mine Duct / Aerial

Storage / Operating Temperature: -40℃~+70℃

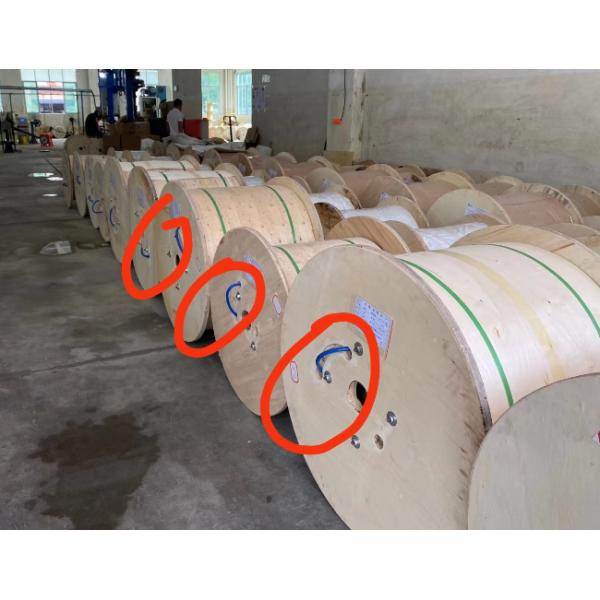

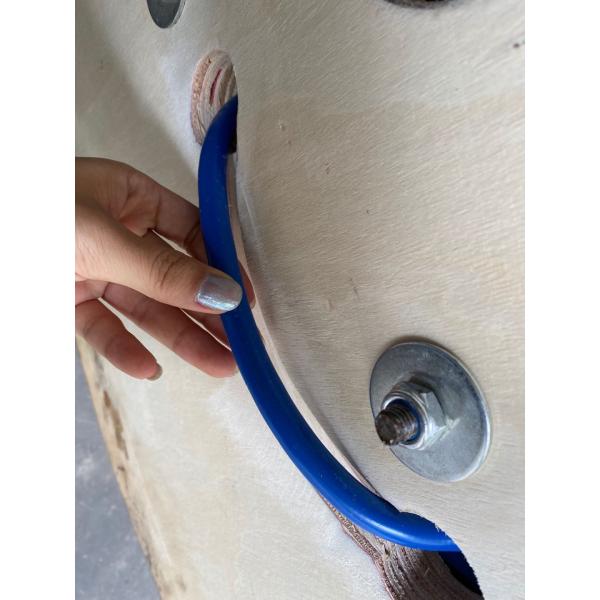

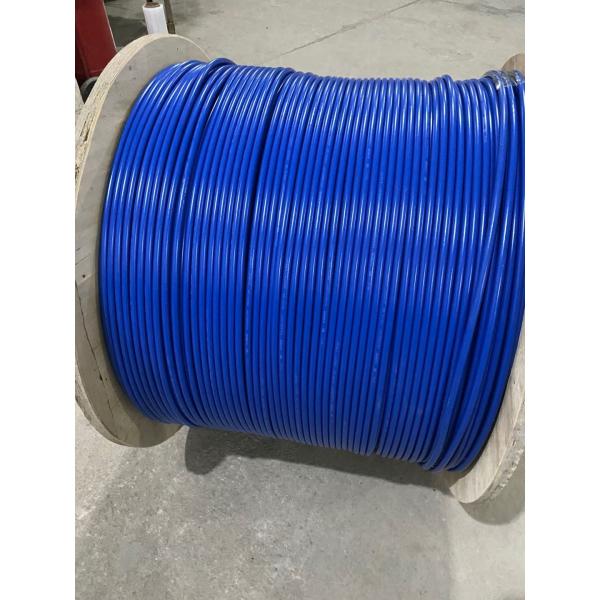

Packing&Delivery

1/2/3/4/5 km in one wooden drum,deliver days:5-8work days

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3

Multi Loose Tube Miner Duct Fiber Optic Cable MGTSV-24B1.3
