All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFTY
Certification :
ISO9001 ROHS CE-EMC FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber count :
4-288 Cores
Fiber type :
single mode
Jacket :
PE
Color :
Black
Product name :
Outdoor fiber optic cable
Length :
2km or customized length
Structure :
Loose tube
Installation :
Aerial & Duct
Number of conductors :
≥ 10
Description

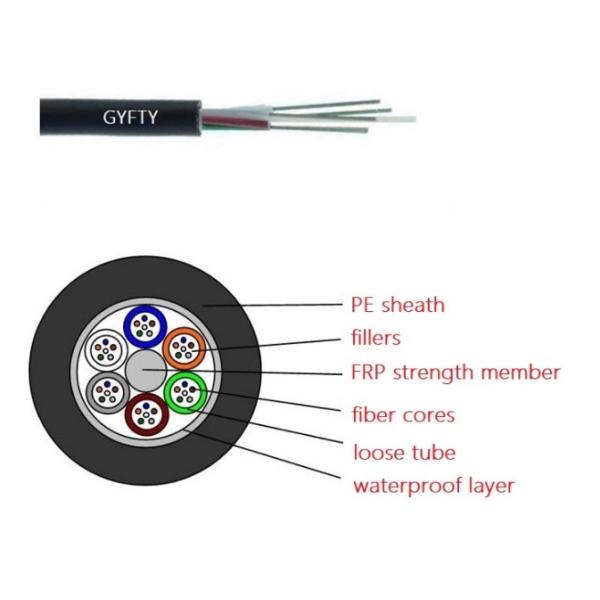

All Dielectric Anti Rodent Cable Non-Metallic Fiber Optic Cable GYFTY

Features
1. small diameter, lighter and softness;
2. reasoning designation,excellent water-blocking performance;
3. FRP as non-metallic central strength member;
4. good electromagnetism resistance ability.
5. jelly-filled, fiber contained loose tube and PP filler
6. water blocking tape, PE outer sheath
Application

Long-distance communication, local trunk line, CATV & computer networks system
Adopted to Outdoor distribution
Suitable for aerial duct and Direct Buried method

Optical Characteristics

G.652D

50/125um

625/125μm

Attenuation

@850nm

≤3.0dB/km

≤3.0dB/km

(+20°C)

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤0.36dB/km

@1550nm

≤0.22dB/km

Bandwidth(ClassA)

@850nm

2500MHzkm

2200MHz:km

@1300nm

21000MHz-km

2600MHzkm

NumericalAperture

0.200+0.015NA

0.275+0.015NA

CableCut-

offWavelengthλcc

≤1260nm

Cable Parameters

Fiber count Structure Fibers per tube

Loose tube diameter

(mm)

CSM diameter/pad diameter

(mm)

Nominal Thickness of outer jacket

(mm)

Cable diameter/

Height

(mm)

Cable weight

(kg/km)
4 1+5 4 1.8±0.1 1.4/1.4 1.6 8.8±0.2 62
6 1+5 6 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
8 1+5 8 1.9±0.1 1.4/1.4 1.6 8.8±0.2 62
12 1+5 6 1.9±0.1 1.4/1.4 1.6 9.0±0.2 65
24 1+5 6 1.9±0.3 1.4/1.4 1.6 9.2±0.2 68
36 1+6 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
48 1+5 12 2.2±0.1 1.6/1.6 1.6 9.2±0.2 68
72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.6 80
96 1+8 12 2.2±0.1 2.2/3.5 1.6 12.0 103
144 1+12 12 2.2±0.1 2.2/6.4 1.8 15.0 180

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY

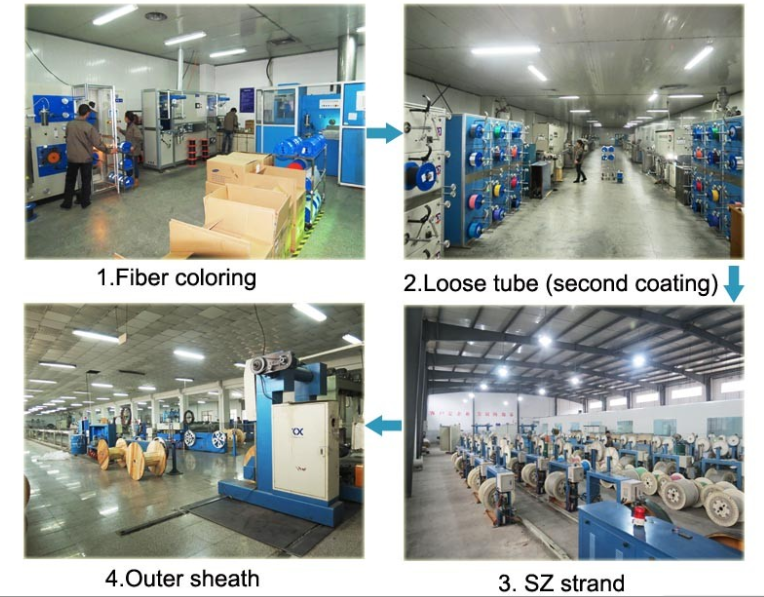

Producion line

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY

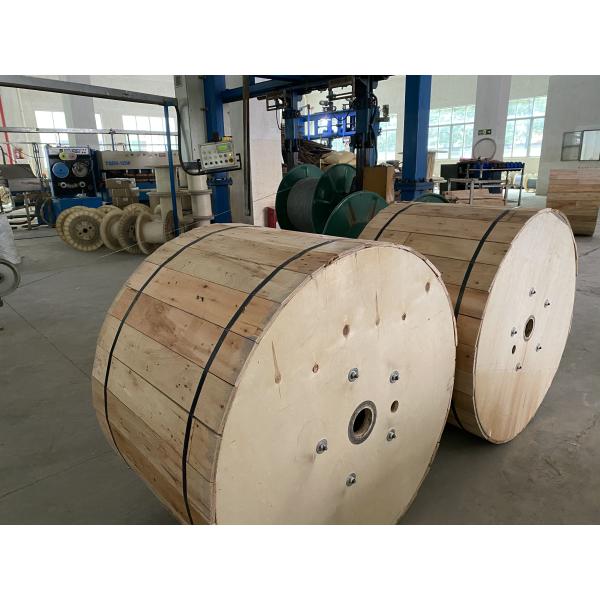

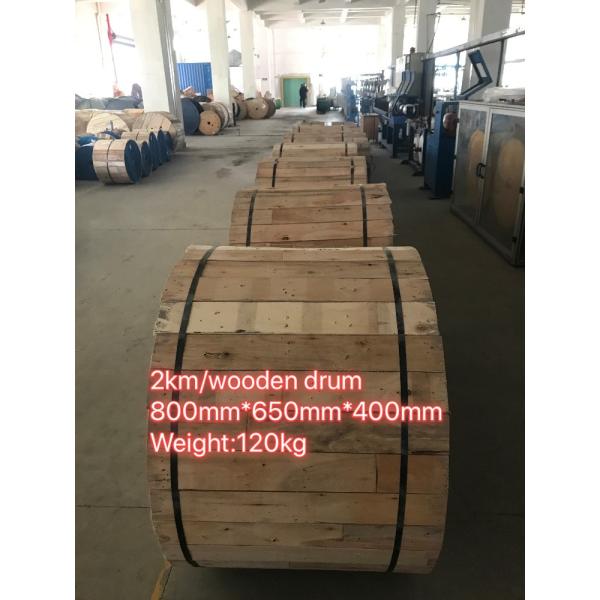

Packing detail

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY

All Dielectric Anti Rodent Non Metallic Fiber Optic Cable GYFTY

FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
