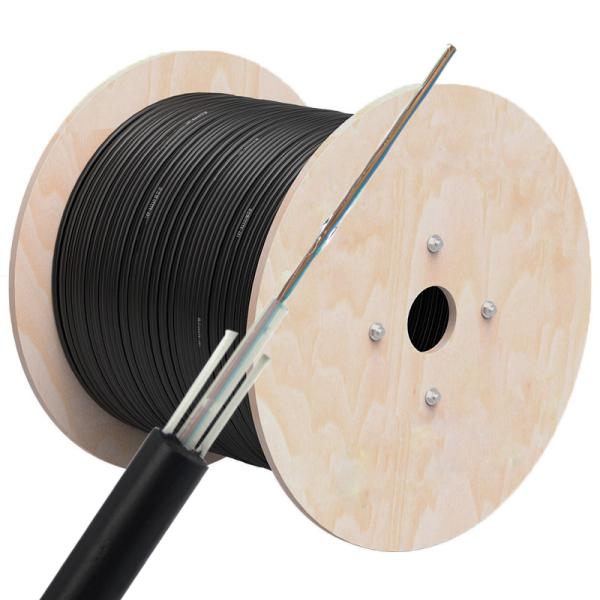

Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
Specifications
Brand Name :
jiqian
Model Number :
GYFXTY
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1000m
Payment Terms :
Western Union, MoneyGram, T/T, L/C
Supply Ability :
100km per 2 day
Delivery Time :
2-4day
Packaging Details :
wooden drum
Fiber type :
G657A1/A2/G652D/G657A1/G657A2
Oem :
Available
Application :
Aerial
Structure :
Unitube
Operating temperature :
-40 ~ +60 C
Sheath material :
HDPE/MDPE
Installation :
aerial
CORE :
12
Description

The fibers, 250um,are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable

Optical Characteristics:
G.652
G.655
50/125μm
62.5/125μm
Attenuation (+20℃)
@850nm
≤3.0dB/km
≤3.0dB/km
@1300nm
≤1.0dB/km
≤1.0dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km
@1550nm
≤0.22dB/km
≤0.23dB/km
Bandwidth(Class A)
@850nm
≥500MHz·km
≥200MHz·km
@1300nm
≥1000MHz·km
≥600MHz·km
Numerical Aperture
0.200±0.015NA
0.275±0.15NA
Cable Cut-off Wave length
≤1260nm
≤1480nm


Structure and Technical Specifications OF GYFXTY :

Fiber count
Cable diameter(mm)
Nominal weight(KGS)
Allowable Tensile Load(mm)
Allowable Crush Resistance(N/100m)
Short term
Long term
Short term
Long term
2-12
6.0-9.0
60
1500
600
1500
600

Feature:

1.Good mechanical and temperature resistant performance.
2.Uni-tube gel-filled construction for superior fiber protection.
3.Two parallel steel wires ensure tensile strength.
4.PE sheath protects cable from ultraviolet radiation.
5.Light weight and small diameter, easy to installation and operation.

Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable

LCD Delivery <10000m <20000m <50000m >100000m
25days 22days 18days 10days

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.Duct GYFXTY Single Mode G652D 2 Core Outdoor Fiber Optic Cable
