FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable
FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable
FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable
FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable
Specifications
Brand Name :
JQ/OEM
Model Number :
GYFXTY-12B1
Certification :
ISO9001
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T
Supply Ability :
30KM Per days
Delivery Time :
5-8 work days
Packaging Details :
wooden drum
Fiber Type :
Single Mode G652D
Jacket Material :
PE/MDPE
Strength member :
FRP
Cable diameter :
6.0-9.0 mm
Color :
Black
Storage/Operation :
-40℃~+70℃
Application :
Aerial/Duct
Fiber count :
2/4/6/8/12 Core
Type :
Singlemode & Multimode
Length :
2km or customized length
Description

4 Core FRP strengthen loose tube outdoor cable GYFXTY Non-Metallic Optic Fiber Cable

Product Description

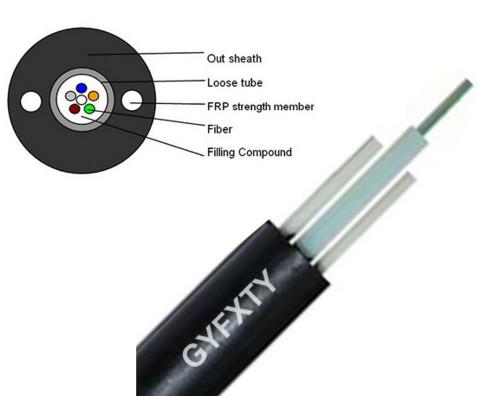

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.

The cable is completed with a polyethylene (PE) sheath.

Features

Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.

FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable

Optical Characteristics:

G.652

G.655

50/125μm

62.5/125μm

Attenuation(+20C)

@850nm

≤3.0dB/km

≤3.0dB/km

@1300nm

≤1.0dB/km

≤1.0dB/km

@1310nm

≤036dB/km

≤0.40dB/km

@1550nm

≤0.22dB/km

≤0.23dB/km

Bandwidth(ClassA)

@850nm

≤2500MHz-km

≥2200MHz.km

@1300nm

≤1000MHz.km

≥2600MHz-km

Numerical Aperture

0.200±0.015NA

0.275±0.15NA

CableCut-off Wavelength

≤1260m

≤1480nm

Structure and Technical Specification OF GYFXTY

FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable

FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable

Fiber

count

Cable

diameter(mm)

Nominal

weight(KGS)

AllowableTensileLoad(mm)

AllowableCrushResistance(N/100m)

Short term

Long term

Short term

Long term

2-12

8.0

60

800N

400N

1000N/100m

300N/100m

Package

Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;

Shipping way

For large orders: by sea (LCL or FCL)

For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)

FRP Strengthen GYFXTY-12B1 4 Core Outdoor Fiber Optic Cable

FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
6.Do you offer guarantee for the products?
Yes, we offer 10-20 years warranty to our formal products.
