GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
GYXTW 12core Aerial Fiber Optic Cable With Armored Steel
Specifications
Brand Name :
Jiqian
Model Number :
GYXTW
Certification :
ISO 9001/ROSH/CE
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T,Alipay
Supply Ability :
4500km
Delivery Time :
3-5 days
Packaging Details :
Wooden drum
Cable brand :
Jiqian
Number of Conductors: :
12 cores
Application :
Duct/aerial
Armoured :
Yes
Fiber type :
Fiberhome/YOFC
Suitable temperature :
-40+60
Manufacturer :
Yes
Description

fiber optic cable type GYTW 12core with armored steel

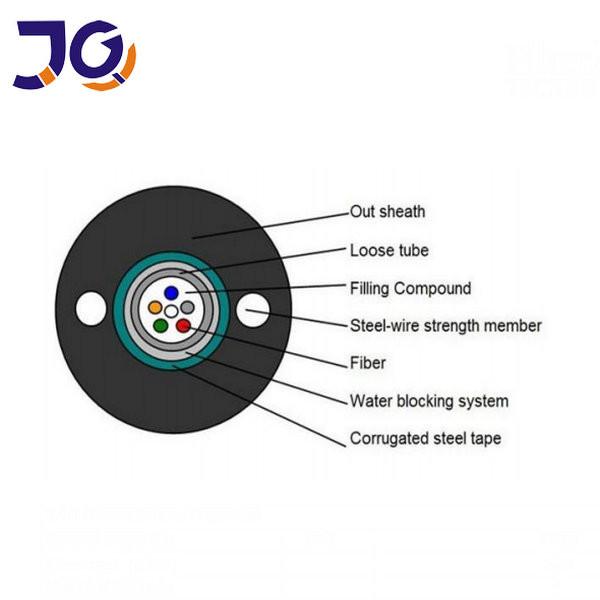

Armored Uni-Tube Single Jacket/Single Armor fiber optic cable with fibers placed in loose buffer tube. The cable core is protected with a corrugated steel tape armor and cover with a black polyethylene outjacket. Two embedded steel wire provide desire tension

GYXTW 12core Aerial Fiber Optic Cable With Armored Steel

Product Characteristics

• Material of loose tube has good mechanical properties and temperature characteristics

• Material of loose tube has good hydrolysis resistance and high strength

• The tube is filled with special filler to provide critical protection for the fiber

• Good lateral pressure resistance and softness

• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables

• The two parallel steel wires provides enough tensile strength

• Small diameter, light weight, easy for laying

Cable Parameters

Items Specifications
Fiber Count 2~24
Colored Coating Fiber Dimension 250μm+15μm
Color Blue,Orange,Green,Brown,Gray,White
Loose Tube Dimension 2.0mm±0.05mm
Material PBT
Color Natural
Strength Member Diameter 1.0mm
Material Steel
Outer Jacket Dimension 8.0mm±0.1mm
Material PE
Color Black

Technical Parameters

Fiber
Count		 Cable
Diameter(mm)		 Cable Weight
kg/km)		 Tensile Strength
Long/Short
Term (N)		 Crush Resistance
Long/Short
Term (N/100mm)

Bending

Radius Static/Dynamic
mm)
2~12 8 78 1000/300a0 1000/3000 10D/20D
14~24 10 90 1000/3000 1000/3000 10D/20D

Performance of Cabled Optical Fiber

The performance of cabled optical fiber (ITU-T Rec. G.652D)

Item Specification
Fiber type Single mode
Fiber material Doped silica
Attenuation coefficient
@ 1310 nm
@ 1383 nm
@ 1550 nm
@ 1625 nm
≤ 0.36 dB/km
≤0.35 dB/km
≤0.22 dB/km
≤0.25 dB/km
Point discontinuity ≤ 0.05 dB
Cable cut-off wavelength ≤ 1260 nm
Zero-dispersion wavelength 1300 ~ 1324 nm
Zero-dispersion slope ≤0.092 ps/(nm².km)
Chromatic dispersion
@ 1288 ~ 1339 nm
@ 1271 ~ 1360 nm
@ 1550 nm
@ 1625 nm
≤3.5 ps/(nm. km)
≤5.3 ps/(nm. km)
≤18 ps/(nm. km)
≤22 ps/(nm. km)
PMD ≤0.2 ps/km½
Mode field diameter @ 1310 nm (8.6~9.5)±0.6 um
Core / Clad concentricity error ≤0.6 um
Cladding diameter 125.0 ± 1 um
Cladding non-circularity ≤1.0%
Primary coating diameter 245 ± 10 um
Proof test level 100 kpsi (=0.69 Gpa), 1%
Temperature dependence
0℃~ +70℃ @ 1310 & 1550nm		 ≤ 0.1 dB/km

package

GYXTW 12core Aerial Fiber Optic Cable With Armored Steel

workshop part

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.

Pls clike here for factory infomation.
