100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
100M Span ADSS Fiber Optic Cable
Specifications
Brand Name :
JQ
Model Number :
ADSS Aerial Fiber Optic Cable
Certification :
ISO9001,ROHS,CE,FCC SDOC
Place of Origin :
Guangzhou,China
MOQ :
1km
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30km per day
Delivery Time :
5-7days
Packaging Details :
wooden drum
Span :
100m
Jacket :
PE/AT
Model Numbe :
ADSS
Color :
Black
Standard :
IEC 6079-1;IEEE 1222-2004
Fiber Count :
2-288 Cores
OEM :
Yes
Description

ADSS All-dielectric Fiber Optic Cable Span 100M With PE Jacket Self-Supporting Aerial Cable

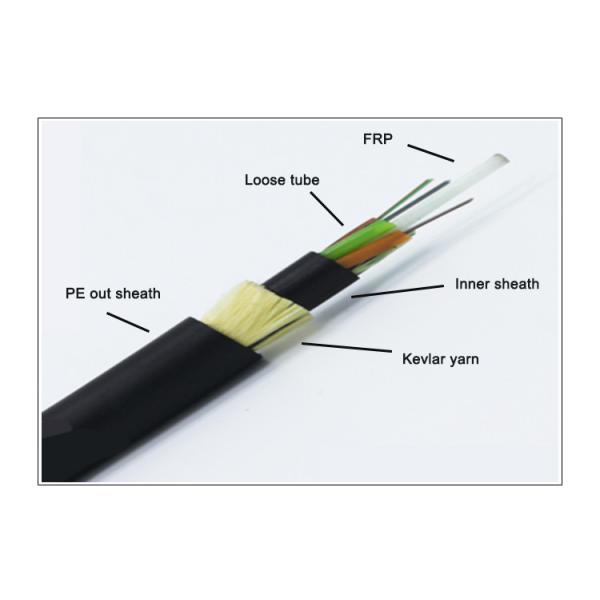

ADSS cable is made of non-metallic material and self-supporting with the aerial power transmission line. The tension resistance material is aramid yarn with high elasticity modules. And optimizing structure can deploy the weight of the cable and its mechanical and physical properties appropriately and minimize the load on the tower. Loose tube construction, tubes jelly filled, elements (tubes and filler rods) and water blocking yarn laid up around non-metallic central strength member,polyester yarns used to bind the cable core, water blocking tape longitudinally wrapped around the cable core, thenaramid yarn reinforced and PE outer sheath.

100M Span ADSS Fiber Optic Cable

100M Span ADSS Fiber Optic Cable

Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22

Technical Data

Structure and Technical Specifications ADSS-DJ(50-500m Span)

Ref.Outer

Diameter

(mm)

Ref.Weight

kg/km)

Rec.DailyMax.

Working

Tension(kN)

Max

Allowable

Working

Tension

[kN)

Break

Strength

(kN)

Strength

Member

CSA.

(kN/mm2)

Modulusof

Elasticity

CSA

kNmm2)[

Heat

Expansion

Coefficient

(X10-6/K)

SuitableSpan

Meter

ABICP

PE

AT

12.5

125

136

1.5

4

10

4.6

7.6

1.8

160

100

140

100

13.0

132

142

2.25

6

15

7.6

8.3

1.5

230

150

200

150

13.3

137

148

3.0

8

20

10.35

9.45

1.3

300

200

290

200

13.6

145

156

3.6

10

24

13.8

10.8

1.2

370

250

350

250

13.8

147

159

4.5

12

30

14.3

11.8

1.0

420

280

400

280

14.5

164

177

5.4

15

36

18.4

13.6

0.9

480

320

460

320

14.9

171

185

6.75

18

45

22.0

16.4

0.6

570

380

550

380

15.1

179

193

7.95

22

53

26.4

18.0

0.3

670

460

650

460

15.5

190

204

9.0

26

|60

32.2

19.1

0.1

750

530

750

510

Features:
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment

Appicable fieds:

Long-distance teecom,LAN in high -votage area or access to telecom network

Installation: Sef-support aeria

Structure Characters:

Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period

Sample picture

100M Span ADSS Fiber Optic Cable

100M Span ADSS Fiber Optic Cable

Temperature Characteristics:
Operate temperature range: -40o C to +60 o C
Storage temperature range: -40 o C to +60 o C

Package Details

1-4KM in one wooden drum

100M Span ADSS Fiber Optic Cable

FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!
2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.
3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.
4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
